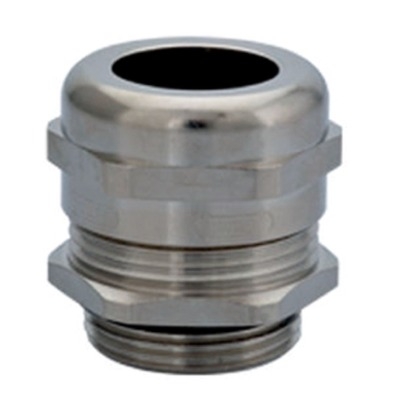

Sealcon CD21NA-BR Nickel Plated Brass 3/4" NPT Dome .51" - .71" (13 - 18 mm) O.D. Cord Grip

Sealcon CD21NA-BR
Sealcon CD21NA-BR 3/4" NPT Dome .51" - .71" (13 - 18 mm) O.D. Cord Grip



Alternative Views:


Price: $13.07
Note: Please call or email [email protected] for alternatives
MFG P/N: CD21NA-BR
MFG: Sealcon
Weight (lbs): 0.15

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: CD21NA-BR
Qty:


Description


Sealcon CD21NA-BR high quality nickel plated brass liquid tight strain relief cord grips are designed for the toughest applications. Also known as Hummel 1.609.3400.70. Sold Individually. Locking nut sold separately

Specifications

  • Thread Size: 3/4" NPT
  • Cable O.D. Range: .51" - .71" (13 - 18 mm)
  • Through Hole Diameter: 1.05" (26.7 mm)
  • Body Length: .98" (25 mm)
  • Thread Length: .51" (13 mm)
  • Wrench Flat Dome: 1.18" (30 mm)
  • Wrench Flat Body: 1.18" (30 mm)

Features

  • Nickel Plated Brass Material with Buna-N Seal & Nylon 6/6 Splined Bushing
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP69K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval

Approvals

  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd

Competitor Cross Reference

  • Arlington LPCG 757Z (Zinc, Cable O.D. 0.375"-0.75")
  • Heyco 3810 (Steel, Cable O.D. 0.65"-0.75")
  • Olflex 53112034 (Cable O.D. 0.35"-0.66")
  • Remke RLN21-BR

Sealcon CD21NA-BR Nickel Plated Brass Cord Grips, Strain Relief Fittings or Cable Glands are used to help customers in all industries connect their cable or wire to their applications. This fitting provides a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. This Nickel Plated Brass Strain Relief with 3/4" NPT thread will provide your application with a product made of exceptional quality. Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts. The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it. Note: Contact us about purchasing individual standard or reduced inserts

Hummel 1.609.3400.70 3/4" NPT Cable Gland

Additional Product Information
Sealcon NPT Standard Brass Dome Fittings
Part Numbers Cable Range Thread Range
CD09NA-BR .16" - .31" (4 - 8 mm) 3/8" NPT
CD09NR-BR .08" - .24" (2 - 6 mm) 3/8" NPT
CD13NA-BR .24" - .47" (6 - 12 mm) 1/2" NPT
CD13NR-BR .20" - .35" (5 - 9 mm) 1/2" NPT
CD16NA-BR .39" - .55" (10 - 14 mm) 1/2" NPT
CD16NR-BR .28" - .47" (7 - 12 mm) 1/2" NPT
CD21NA-BR .51" - .71" (13 - 18 mm) 3/4" NPT
CD21NR-BR .35" - .63" (9 - 16 mm) 3/4" NPT
CD29NA-BR .71" - .98" (18 - 25 mm) 1" NPT
CD29NR-BR .51" - .79" (13 - 20 mm) 1" NPT
