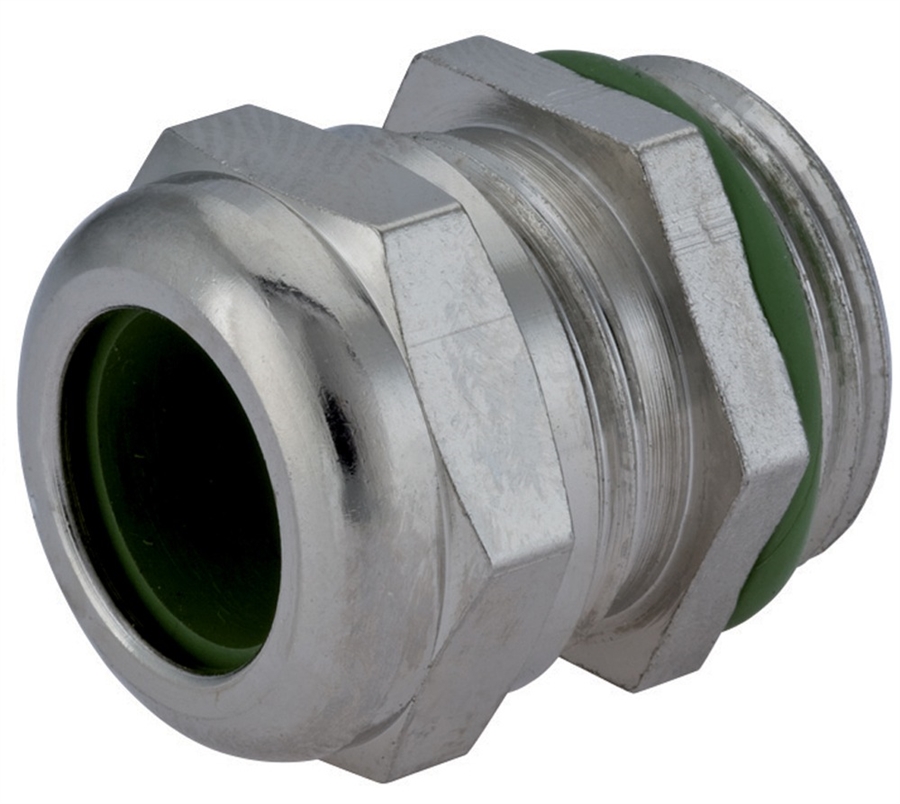

Sealcon CD09NA-RV high quality nickel plated brass liquid tight strain relief cord grips with PVDF/Viton inserts are designed for the toughest applications. Also known as Hummel 1.699.3800.70. Sold Individually.
Locking nut sold separately

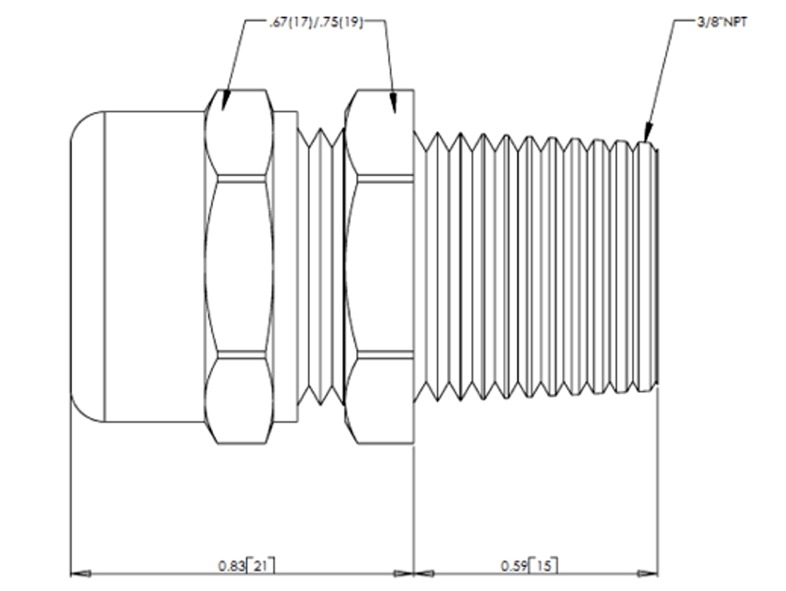

Specifications
- Thread Size: 3/8" NPT
- Cable O.D. Range: .16" - .31" (4 - 8 mm)
- Through Hole Diameter: 0.68" (17.2 mm)
- Body Length: 0.83" (21 mm)
- Thread Length: .59" (15 mm)
- Wrench Flat Dome: 0.67" (17 mm)
- Wrench Flat Body: 0.75" (19 mm)
Features
- Nickel Plated Brass Material with Viton Insert, PVDF Clamping Insert, & Viton Seal
- Operating temperature: -35 C to 150 C (-31 F to 302 F)
- Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP69K)
- 150 psig (10 bar) Pressure Rating
- Flame Protected to UL 94
- Halogen and Phosphorous Free
- Resists salt water, acids, alkalis', gasoline & oils.
- Durable Rugged Construction
- RoHS & Deca BDE, CSA approval
- Works in extreme temperatures & resists exposure to chemicals
Approvals
- RoHS Compliance
- Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
- Registration, Evaluation, Authorization and Restriction of
Chemicals
- Waste Electrical and Electronic Equipment Directive
- UL / CUL Listed
- UL Registered
- CSA
- EAC
- CE
- German Lloyd
Sealcon CD09NA-RV Nickel Plated Brass Cord Grips, Strain Relief Fittings or Cable Glands are used to help customers in all industries connect their cable or wire to their applications. This fitting provides a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. This Nickel Plated Brass Strain Relief with 3/8" NPT thread will provide your application with a product made of exceptional quality. Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts. The self locking ACME thread on the dome top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.
CD09NA-RV 3/8" NPT FKM Brass Strain Relief Fitting
|
|
|
