IP68 / IP69K
Sealcon CD07AA-RV Nickel Plated Brass Cable Gland with PVDF/Viton Inserts
Sealcon CD07AA-RV high quality nickel plated brass liquid tight strain relief cord grips with PVDF/Viton inserts are designed for the toughest applications.
✓ Liquid-Tight Cable Gland: Reliable Industrial Strain Relief
Thread: 1/4" NPT / PG 7 | Cable O.D.: .12" -.26" (3 - 6.5 mm)
Overview
The
CD07AA-RV is a Sealcon cable gland designed to secure cable or wire entry points in demanding industrial applications. Sealcon CD07AA-RV high quality nickel plated brass liquid tight strain relief cord grips with PVDF/Viton inserts are designed for the toughest applications.1/4" NPT / PG 7.12" -.26" (3 - 6.5 mm)IP68/IP69K
Sealcon CD07AA-RV Nickel Plated Brass Cord Grips, Strain Relief Fittings or Cable Glands are used to help customers in all industries connect their cable or wire to their applications. This fitting provides a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. This Nickel Plated Brass Strain Relief with 1/4" NPT / PG 7 thread will provide your application with a product made of exceptional quality.
🔧 Built for Secure Cable Entry
Thread Size: 1/4" NPT / PG 7
Cable Range: .12" -.26" (3 - 6.5 mm)
Construction: Nickel Plated Brass Material with Viton Insert, PVDF Clamping Insert, & Viton Seal
Key Features
- Nickel Plated Brass Material with Viton Insert, PVDF Clamping Insert, & Viton Seal
- Operating temperature: -35 C to 150 C (-31 F to 302 F)
- Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP69K)
- 150 psig (10 bar) Pressure Rating
- Flame Protected to UL 94
- Halogen and Phosphorous Free
- Resists salt water, acids, alkalis', gasoline & oils.
- Durable Rugged Construction
- RoHS & Deca BDE, CSA approval
- Works in extreme temperatures & resists exposure to chemicals
✅ Why Choose This Cable Gland?
This fitting helps provide dependable strain relief, cable protection, and enclosure sealing for industrial equipment, panels, and machinery.
Applications
The CD07AA-RV is suited for cable and wire connections in industrial environments:
- High-temperature industrial applications
- Chemical-resistant cable entries
- Control panels and junction boxes
- Harsh environments requiring Viton/PVDF inserts
- Liquid-tight cable and wire connections
⚠️ Important Installation Info
Locking nut sold separately
Performance Benefits
- Liquid-tight sealing helps protect cable entry points from water, dust, and washdown exposure
- Pressure-rated construction supports demanding enclosure and equipment installations
- Resists salt water, acids, alkalis, gasoline, and oils
- Flame-protected construction supports industrial safety requirements
💧 Liquid-Tight Protection
Designed to help seal cable entry points while providing dependable strain relief for industrial installations.
Specifications
|
Brand
|
Sealcon
|
|
Model
|
CD07AA-RV
|
|
Product Type
|
Cord Grip / Strain Relief Cable Gland
|
|
Hummel Cross Reference
|
1.699.0700.01.
|
|
Construction
|
Nickel Plated Brass Material with Viton Insert, PVDF Clamping Insert, & Viton Seal
|
|
Rating
|
IP68 / IP69K
|

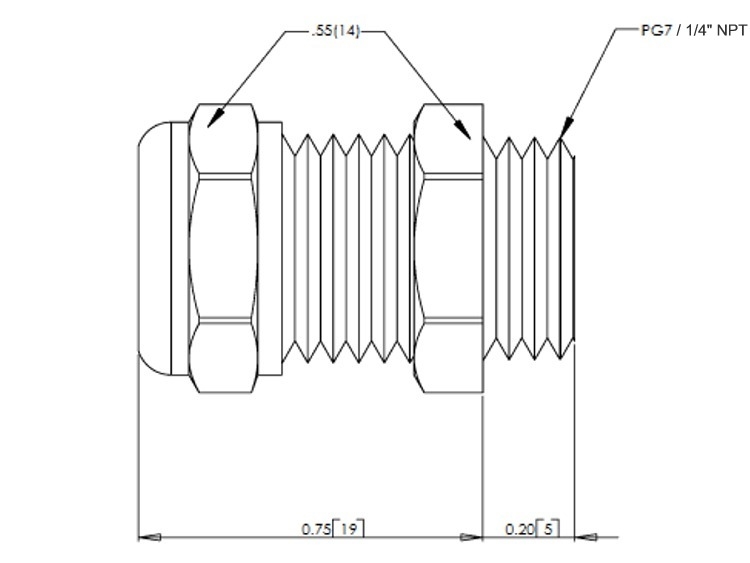

Dimensions & Fit
|
Thread Size
|
1/4" NPT / PG 7
|
|
Cable O.D. Range
|
.12" -.26" (3 - 6.5 mm)
|
|
Through Hole Diameter
|
.49" (12.5 mm)
|
|
Body Length
|
.75" (19 mm)
|
|
Thread Length
|
.20" (5 mm)
|
|
Wrench Flat Dome
|
.55" (14 mm)
|
|
Wrench Flat Body
|
.55" (14 mm)
|
Ratings
|
Environmental Rating
|
Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP69K)
|
|
Pressure Rating
|
150 psig (10 bar) Pressure Rating
|
|
Operating Temperature
|
Operating temperature: -35 C to 150 C (-31 F to 302 F)
|
|
Flame Protection
|
Flame Protected to UL 94
|
|
Chemical Resistance
|
Resists salt water, acids, alkalis', gasoline & oils.
|
|
Halogen/Phosphorous
|
Halogen and Phosphorous Free
|
Approvals
|
RoHS Compliance
|
|
Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
|
|
Registration, Evaluation, Authorization and Restriction of Chemicals
|
|
Waste Electrical and Electronic Equipment Directive
|
|
UL / CUL Listed
|
|
UL Registered
|
|
CSA
|
|
EAC
|
|
CE
|
|
German Lloyd
|
|
|
|
