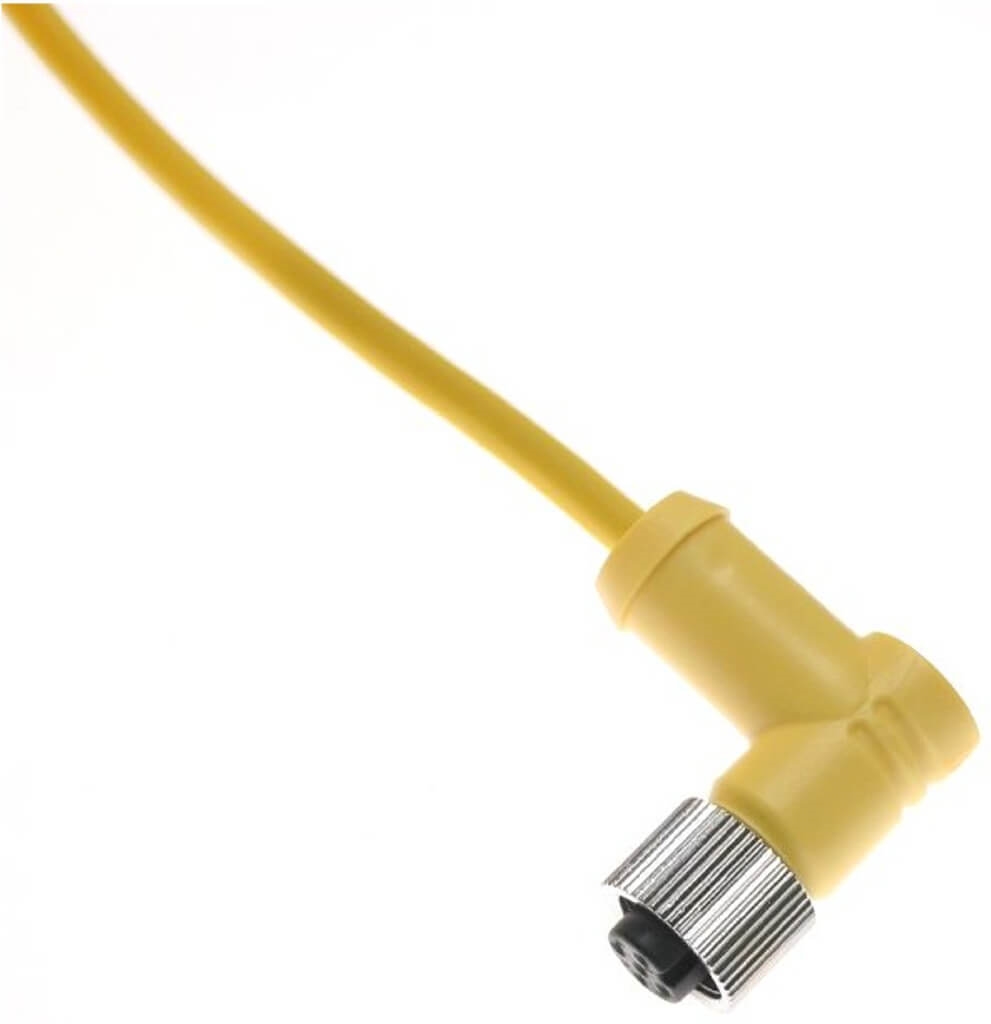

Mencom MDC-5FP-3M-R M12 Cordset, 5 Pole Female Right Angle Connector, 3 Meter Cable

Mencom Micro DC Cordset - MDC-5FP-3M-R
Mencom MDC-5FP-3M-R M12 Cordset, 5 Pole, Female Right Angle, 3 M

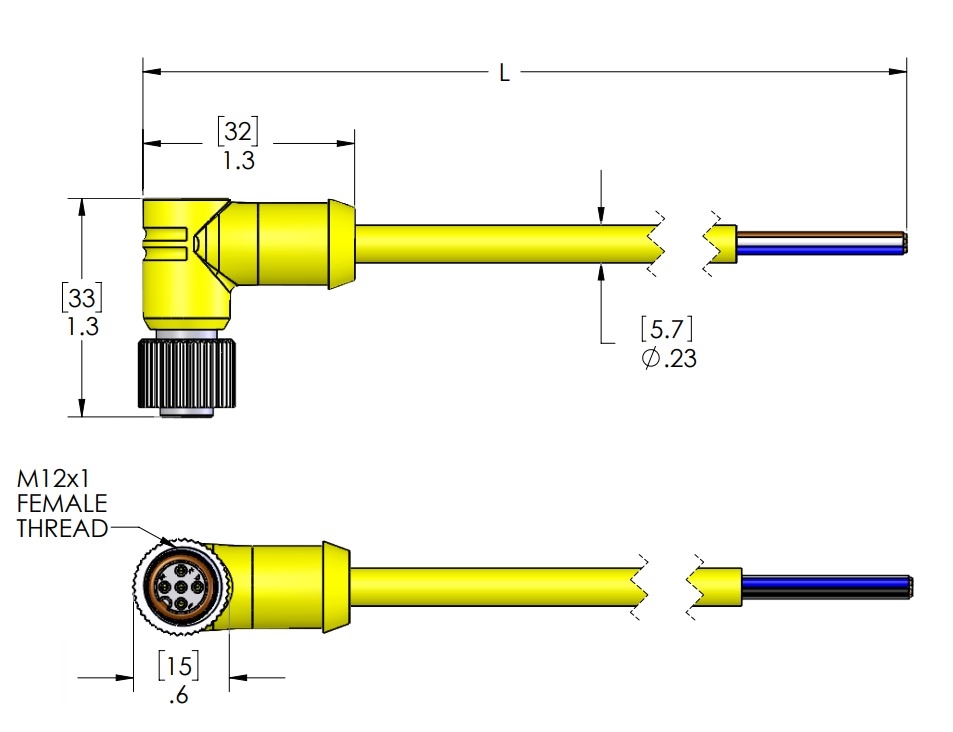

Alternative Views:
  • 3-meter (9.84 ft) yellow PVC cable resists oil, abrasion, and chemicals
  • Handles up to 300 volts and 4 amps
  • Compatible with M12 sensor/actuator ports in PLCs, robotics, conveyors, and other automation equipment
  • IP69 rated to be fully dust-tight and withstand high-pressure, high-temperature washdowns
Price: $25.07
Note: Delivery: 2-5 Business Days
MFG P/N: MDC-5FP-3M-R
MFG: Mencom
Ships From: Eastlake, OH
Weight (lbs): 0.34

Quantity in Stock :25


Availability: In Stock
Product Code: MDC-5FP-3M-R
Qty:

Description


The Mencom MDC-5FP-3M-R M12 female right angle cordset features a 5-pin insert with 22 AWG conductors and 3-meter oil-resistant PVC cable. Designed for industrial environments, it includes gold-plated copper alloy contacts for reliable conductivity and corrosion resistance. The yellow PVC body is rated for 300V, with an operating temperature range of -40°C to 105°C (-40°F to 221°F). This connector uses an M12 coupling nut and meets IP69 ingress protection, ensuring suitability for washdown and harsh-duty applications. Ideal for plug-and-play sensor and actuator connections in automation systems.

Pin #1 - Brown
Pin #2 - White
Pin #3 - Blue
Pin #4 - Black
Pin #5 - Gray

Specifications

  • Body: Yellow PVC
  • Insulator: Polyamide
  • Contacts: Gold Plated Copper Alloy
  • Coupling Nut: Nickel Plated Brass
  • Cable: 22/5 AWM Yellow PVC Jacket
  • Rated Voltage: 300 V
  • Rated Current: 4 Amps
  • Wire Gauge: 22
  • Pin Count: 5
  • Cable Length: 3 meters (9.84 ft)
  • Cable O.D.: 0.22
  • Ingress Protection: IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head: Female Right Angle
  • Coupling Thread: Female
  • Mating Thread / Type Head: M12
  • Nut: No
  • Approvals: UL & CUL Listed

M12 Molded Cable Cordsets & Connectors Overview

Mencom M12 Molded Cordset Part Number Guide
Additional Product Information
Mencom Female Right Angle M12 Molded Cable Cordsets
Pin Count Cable Length (meters) Cable Type Wire AWG Part Number
2 4 Yellow PVC 22 MDC-2FP-4M-R
3 1 Yellow PVC 22 MDC-3FP-1M-R
3 2 Yellow PVC 22 MDC-3FP-2M-R
3 4 Yellow PVC 22 MDC-3FP-4M-R
3 5 Yellow PVC 22 MDC-3FP-5M-R
3 10 Yellow PVC 22 MDC-3FP-10M-R
3 4 Yellow PVC 18 MDC-3FPX-4M-R
3 1 Yellow PUR 22 MDCP-3FP-1M-R
4 1 Yellow PVC 22 MDC-4FP-1M-R
4 2 Yellow PVC 22 MDC-4FP-2M-R
4 4 Yellow PVC 22 MDC-4FP-4M-R
4 5 Yellow PVC 22 MDC-4FP-5M-R
4 5 Black PVC 22 MDC-4FP-5M-R-B
4 10 Yellow PVC 22 MDC-4FP-10M-R
4 15 Yellow PVC 22 MDC-4FP-15M-R
4 20 Yellow PVC 22 MDC-4FP-20M-R
4 1 Yellow PVC 18 MDC-4FPX-1M-R
4 2 Yellow PVC 18 MDC-4FPX-2M-R
4 4 Yellow PVC 18 MDC-4FPX-4M-R
4 5 Yellow PVC 18 MDC-4FPX-5M-R
4 10 Yellow PVC 18 MDC-4FPX-10M-R
4 15 Yellow PVC 18 MDC-4FPX-15M-R
4 2 Yellow PVC Shielded 22 MDCM-4FP-2M-R
4 4 Yellow PVC Shielded 22 MDCM-4FP-4M-R
4 5 Yellow PVC Shielded 22 MDCM-4FP-5M-R
5 1 Yellow PVC 22 MDC-5FP-1M-R
5 2 Yellow PVC 22 MDC-5FP-2M-R
5 2 Black PVC Jacketed
Stainless Steel 		22 MDC-5FP-2M-R-A03
5 4 Yellow PVC 22 MDC-5FP-4M-R
5 5 Yellow PVC 22 MDC-5FP-5M-R
5 5 Black PVC Jacketed
Stainless Steel 		22 MDC-5FP-5M-R-A03
5 10 Yellow PVC 22 MDC-5FP-10M-R
5 2 Yellow PVC 18 MDC-5FPX-2M-R
5 5 Yellow PVC 18 MDC-5FPX-5M-R
5 10 Yellow PVC 18 MDC-5FPX-10M-R
5 15 Yellow PVC 18 MDC-5FPX-15M-R
5 2 Yellow PVC Shielded 22 MDCM-5FP-2M-R
5 4 Yellow PVC Shielded 22 MDCM-5FP-4M-R
5 5 Yellow PVC Shielded 22 MDCM-5FP-5M-R
5 5 Yellow PUR 22 MDCP-5FP-5M-R
5 10 Yellow PUR 22 MDCP-5FP-10M-R
6 5 Yellow PVC Shielded 24 MDCM-6FP-5M-R
8 1 Yellow PUR 24 MDCP-8FP-1M-R
8 2 Yellow PUR 24 MDCP-8FP-2M-R
8 5 Yellow PUR 24 MDCP-8FP-5M-R
8 10 Yellow PUR 24 MDCP-8FP-10M-R
8 20 Yellow PUR 24 MDCP-8FP-20M-R
12 2 Black PUR Shielded 24 MDCPM-12FP-2M-R-B
12 5 Black PUR Shielded 24 MDCPM-12FP-5M-R-B
12 10 Black PUR Shielded 24 MDCPM-12FP-10M-R-B
