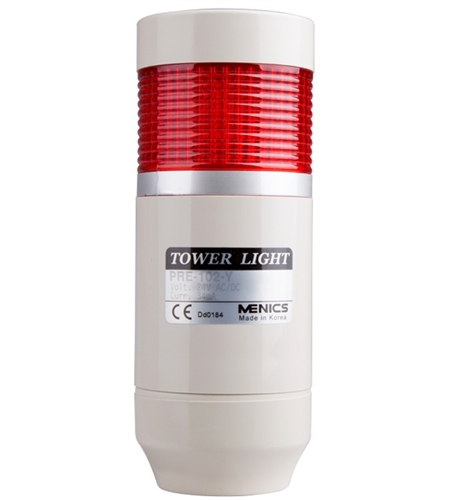

Menics PRE-101-R 56 mm 1 Stack LED Tower Light, Red, Steady, 12V


Menics PRE-101-R 1 Stack LED Tower Light, Red
Menics PRE-101-R 1 Stack LED Tower Light, Red, Steady, 12V



Alternative Views:


Price: $51.04
Note: Please call or email [email protected] for alternatives
MFG P/N: PRE-101-R
MFG: Menics
Weight (lbs): 0.5

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: PRE-101-R
Qty:

Description


The Menics PRE-101-R 1 stack LED tower signal light has a 56mm diameter and is rated for 12V AC/DC. It has a red lens with a steady light and is prewired with 25" lead. The PRE series has prism cut PC plastic lenses for consistent distribution of light. The tower light itself comes preassembled. Rated IP 56.

Mounting (See mounting accessories below)

  • Pole Mount: Pole + Base
  • Wall Mount: Pole + MAP-DS40 Wall Bracket, Pole + Base + MAP-DS30 or MAM-DS28 Wall Bracket, or Threaded Pole + Wall Bracket
  • Surface Mount: 22 mm Pole (MAP-0022) + Base or Threaded 43 mm Pole (MAP-M043). Threaded pole would be inserted into a pre-drilled hole using lock nuts on either side to tighten in place.
  • See our mounting accessories chart (link below description) to see which poles and bases are compatible
  • Note: If you are using a 750 mm or 1000 mm pole, you will need a longer lead length. The lead can be modified yourself, or by the factory upon request

Specifications

  • Operation- Steady
  • Power Supply- 12V AC/DC
  • Mounting/Connection- Pole Mount / Lead Wires (25" Lead Length)
  • Lens Color- Red
  • Lens Material- Polycarbonate
  • Number of LED Tiers- 1 Stack
  • Dimensions (Tower Light Only)- 152 mm Height x 56 mm Diameter (6" x 2.2")
  • Current- 0.054 Amps
  • Insulation Resistance- 100MOhm min (500VDC mega)
  • Vibration- 10~55Hz, amplitude 0.75mm
  • Ambient Temperature- -15 C to 40 C (5 F to 104 F)
  • Storage Temperature- -15 C to 40 C (5 F to 104 F)
  • Recommended Wire Size- 1007 UL / 22 AWG
  • IP Protection- IP 56 (Protection from harmful dust deposits and powerful water jets from any direction)
  • Approvals- CE, RoHS

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
