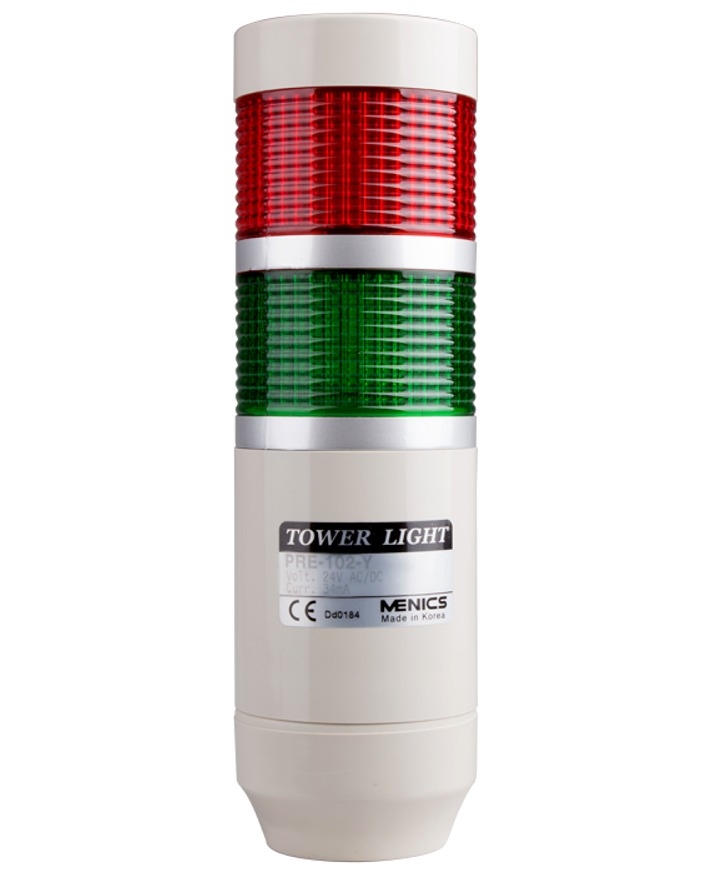

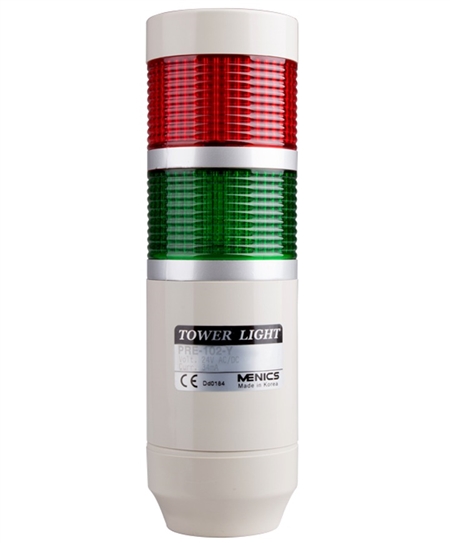

The Menics PREF-202-RG 2 stack LED tower signal light has a 56mm diameter and is rated for 24V AC/DC. This pole mount tower light has red & green lenses with a flashing light and is pre-wired with 25" lead. The PRE series uses prism cut PC plastic lenses that have an even distribution of light. The tower light itself comes pre-assembled. Rated IP 56. Optional 80 dB buzzer kit also available (Sold separately).

Mounting (See mounting accessories below)

• Pole Mount: Pole + Base
• Wall Mount: Pole + Wall Bracket (MAP-DS40), Pole + 70 mm Base + Wall Bracket (MAP-DS30 or MAM-DS28), or Threaded Pole + Wall Bracket (MAM-DS25)
• Surface Mount: 22 mm Pole (MAP-0022) + Base or Threaded 43 mm Pole (MAP-M043). Threaded pole would be inserted into a pre-drilled hole using lock nuts on either side to tighten in place.
• See our mounting accessories chart (link below description) to see which poles and bases are compatible
• Note: If you are using a 750 mm or 1000 mm pole, you will need a longer lead length. The lead can be modified yourself, or by the factory upon request

Specifications

• Operation- Flashing
• Power Supply- 24V AC/DC
• Mounting/Connection- Pole Mount / Lead Wires (25" Lead Length)
• Lens Colors- Red & Green
• Lens Material- Polycarbonate
• Number of LED Tiers- 2 Tiers
• Dimensions (Tower Light Only)- 192 mm Height x 56 mm Diameter (7.56" x 2.2")
• Current- 0.062 Amps
• Insulation Resistance- 100MOhm min (500VDC mega)
• Flash Rate- 80 times per minute
• Vibration- 10~55Hz, amplitude 0.75mm
• Ambient Temperature- -15 C to 40 C (5 F to 104 F)
• Storage Temperature- -15 C to 40 C (5 F to 104 F)
• Recommended Wire Size- 1007 UL / 22 AWG
• IP Protection- IP 56 (Protection from harmful dust deposits and powerful water jets from any direction)
• Approvals- CE, RoHS

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart

PREF-202-RG 24V AC/DC 2 Tier Flashing LED Tower Signal Light
