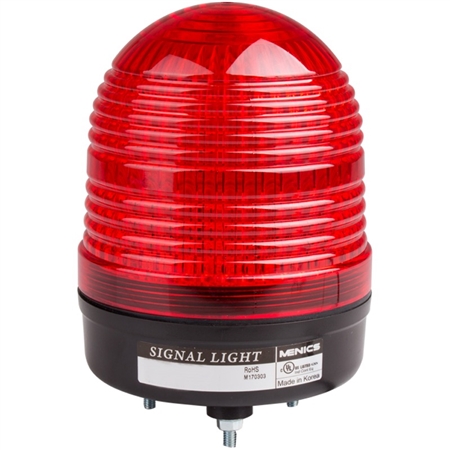

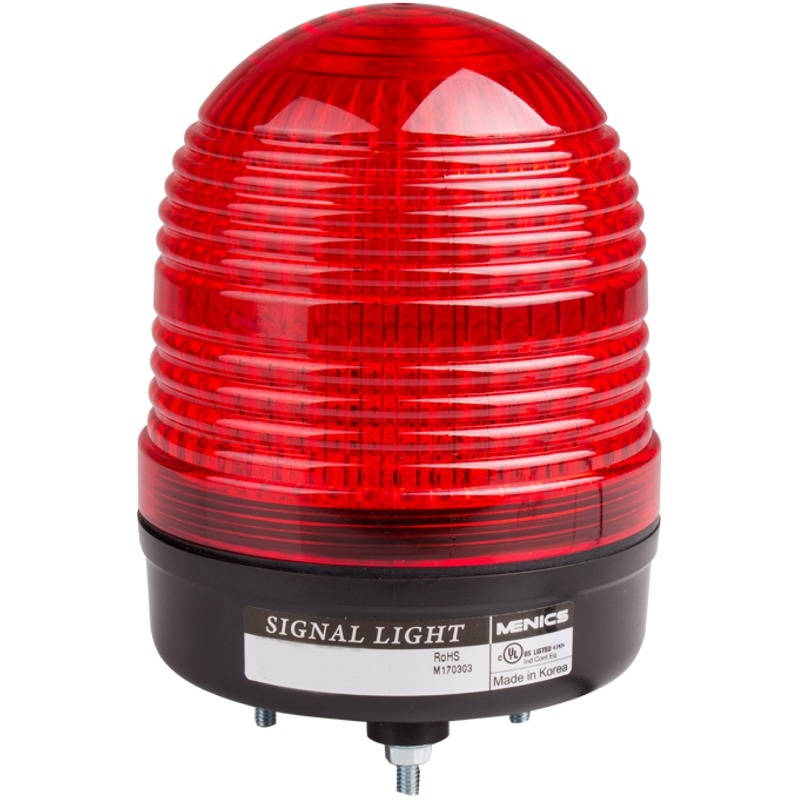

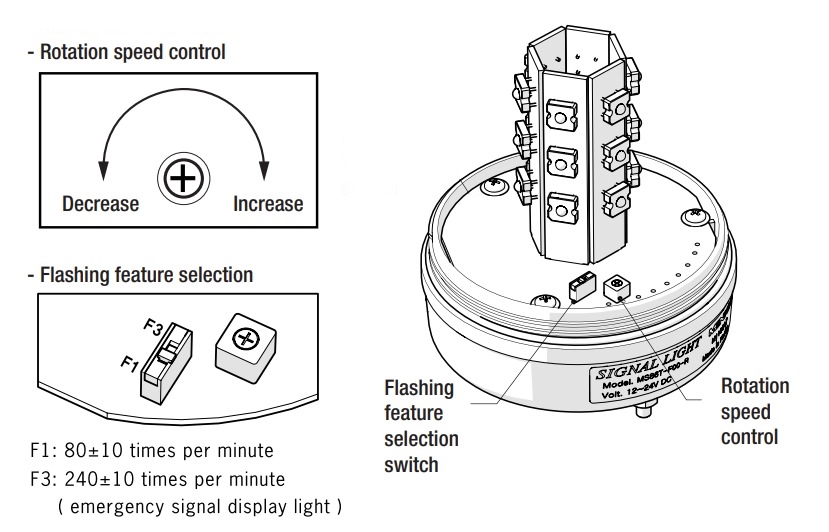

The Menics MS86T-R00-R 86mm beacon light is 12-24V AC/DC with a red lens and a steady & flashing high intensity rotating LED light. It has a prism cut lens with a wide light distribution that can be seen from a distance. Features 2 flashing modes which are chosen via the inside selector switch. Rotation speed is adjustable. The LED allows the light to be used for long periods without generating excess heat. Rated IP 65.
Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.
Specifications
- Mounting- Stud Mount (see mounting accessories below - MAM-DS31 adapter must be used if pole mounting)
- Light Type- High Intensity LED Steady/Flashing/Rotating

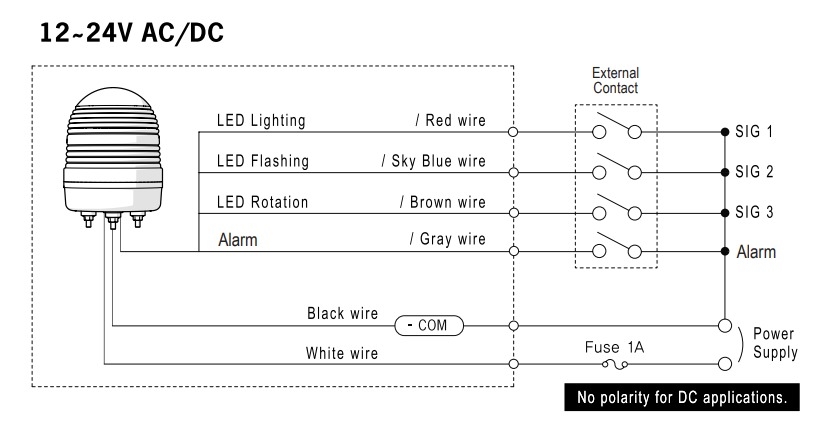

- Power Supply- 12-24V AC/DC
- Lens Color- Red
- Lens Material- Polycarbonate Resin

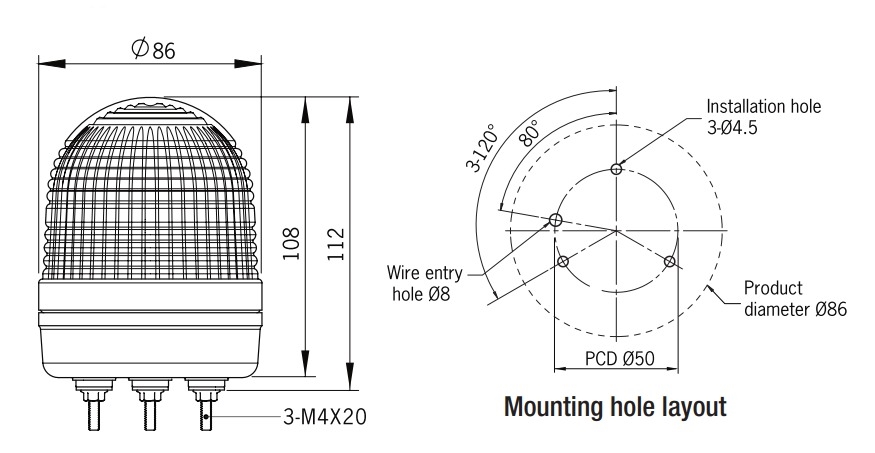

- Dimensions- 112 mm Height x 86 mm Diameter (4.4" x 3.4")
- Current Consumption- 0.2 - 0.4 Amps
- Brightness- 32 Lumens, 2550 mcd (12V), 34 Lumens, 2710 mcd (24V)
- Flash Rate- 80 times per minute or 240 times per minute
- Rotation Rate- 60 to 300 rotations per minute (clockwise)
- Buzzer- None (see below for version with buzzer alarm)
- Vibration- 0.75mm @ 10-55Hz
- Insulation Resistance- 100 MOhm min. (500VDC mega)
- Ambient Temperature- -20 C to 40 C (-4 F to 104 F)
- Storage Temperature- -20 C to 70 C (-4 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- Recommended Wire Size- UL1007 / 22 AWG
- IP Protection- IP 65 (Total protection from dust and water jets in any direction)
- Approvals- RoHS, UL
Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
