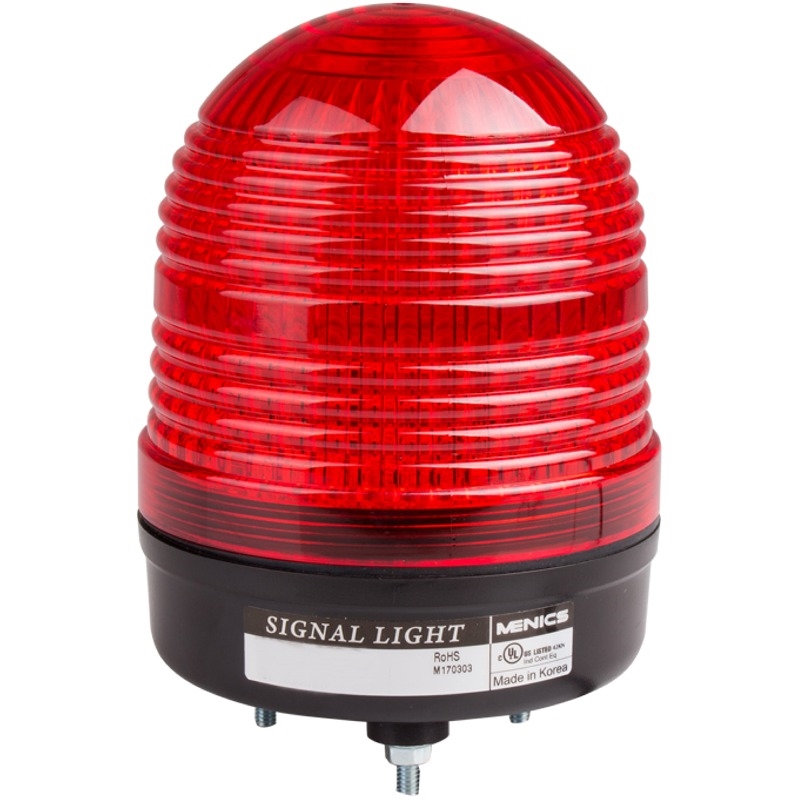

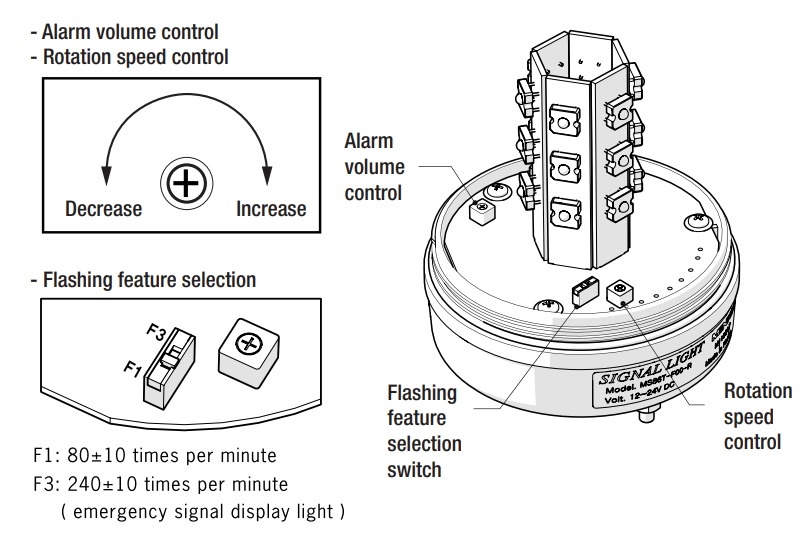

The Menics MS86T-B00-R 86mm beacon light is 12-24V AC/DC with a red lens and a steady & flashing high intensity rotating LED light. Adjustable rotation rate and 10-100dB sound level. It has a prism cut lens with a wide light distribution that can be seen from a distance. Features 2 selectable flashing modes which are chosen by a switch located on the inside. The LED allows the light to be used for long periods without generating excess heat. Rated IP 65. Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Specifications

Mounting- Stud Mount (see mounting accessories below - MAM-DS31 adapter must be used if pole mounting)
Light Type- High Intensity LED, Steady/Flashing/Rotating w/ Alarm
Power Supply- 12-24V AC/DC
Lens Color- Red
Lens Material- Polycarbonate Resin

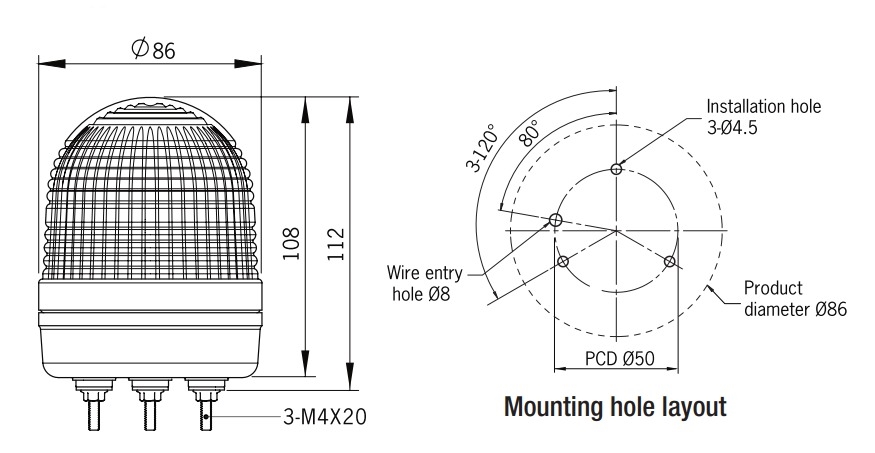

Dimensions- 112 mm Height x 86 mm Diameter (4.4" x 3.4")
Current Consumption- 0.2 - 0.4 Amps, Alarm 0.15 Amps
Brightness- 32 Lumens, 2550 mcd (12V), 34 Lumens, 2710 mcd (24V)
Flash Rate- 80 times per minute or 240 times per minute
Rotation Rate- 60 to 300 rotations per minute (clockwise)
Alarm Sound Level- 10-100 decibels @ 1 Meter (see below for version without buzzer alarm)
Vibration- 0.75mm @ 10-55Hz
Insulation Resistance- 100 MOhm min. (500VDC mega)
Ambient Temperature- -20 C to 40 C (-4 F to 104 F)
Storage Temperature- -20 C to 70 C (-4 F to 158 F)
Ambient Humidity- 45-85% Relative Humidity
Recommended Wire Size- UL1007 / 22 AWG
IP Protection- IP 65 (Total protection from dust and water jets in any direction)
Approvals- RoHS, UL

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart

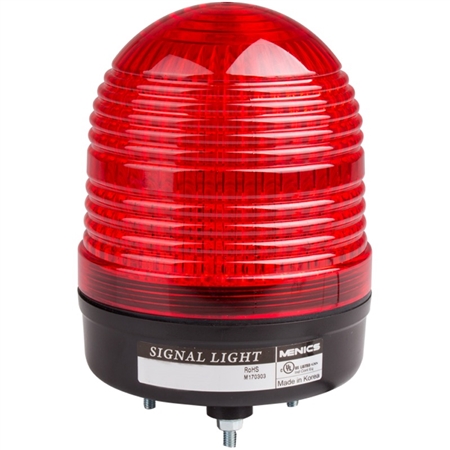

86mm 12-24V Red LED Rotating Signal Light w/ Alarm MS86T-B00-R
