LiteCycle Push Button Box, 2 Position, 22mm, Red, 5.31" x 3.15" x 2.76"

LiteCycle 2 Position Push Button Box

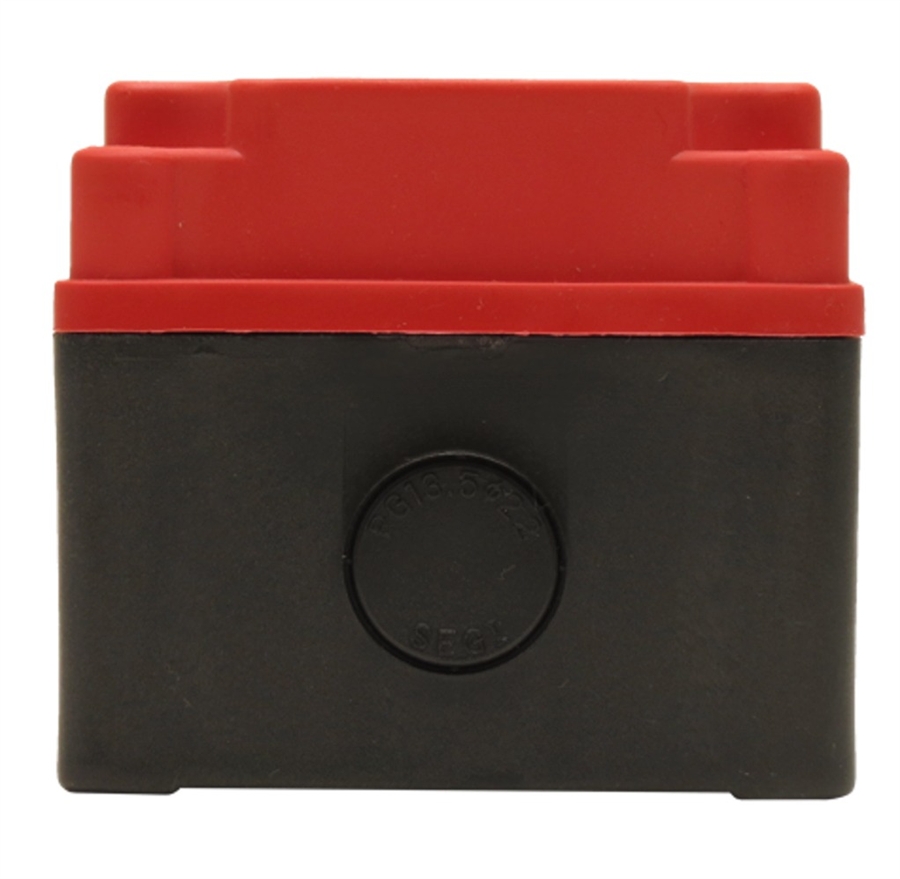

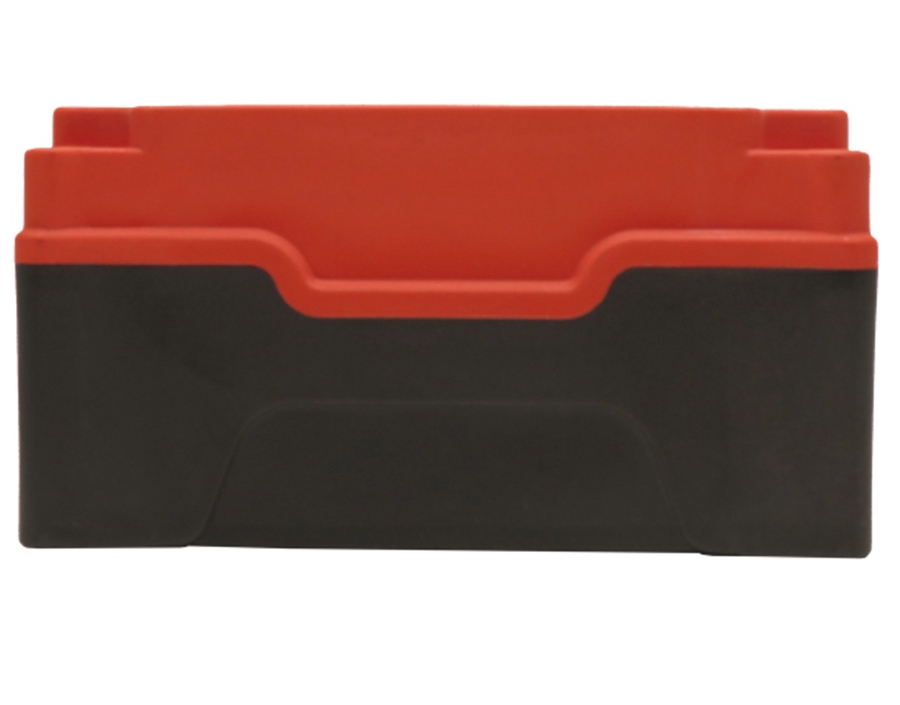

LiteCycle SG-PB-2202-R Push Button Box, 2 Position, 22mm, Red, 5.31" x 3.15" x 2.76"

Alternative Views:
Price: $17.65
MFG P/N: SG-PB-2202-R
MFG: LiteCycle
Weight (lbs): 0.35



Availability: In Stock
Product Code: SG-PB-2202-R
Qty:

Description


The LiteCycle SG-PB-2202-R is a 2 position, push button switch box enclosure. It is made from PBT plastic with two 22mm pushbutton entrances. This enclosure features counter rotating locks with a resin molded face plate in emergency red. In an emergency stop situation, the red coloring makes the enclosure easier to locate. Rated IP 65.

Specifications

  • Dimensions- 135 mm L X 80 mm W X 70 mm H (5.31" x 3.15" x 2.76")
  • Housing Color- Black
  • Base Material- PBT Plastic
  • Face Plate- Red Molded Resin
  • Push Button Entry- 22 mm
  • Wire Entry- Molded Knockout
  • Entry Opening- 22 mm
  • Maximum Size- PG 13.5
  • Positions- 2
  • Ingress Protection- IP 65

The innovative design is most commonly used for Emergency Stop switches, while also presenting an aesthetically pleasing appearance. The red resin lasts a long time without fading, while the molded knockouts make it easier to install. The SG-PB-2202-R can be used in high temperature environments and is oil resistant, making it easy to clean.
