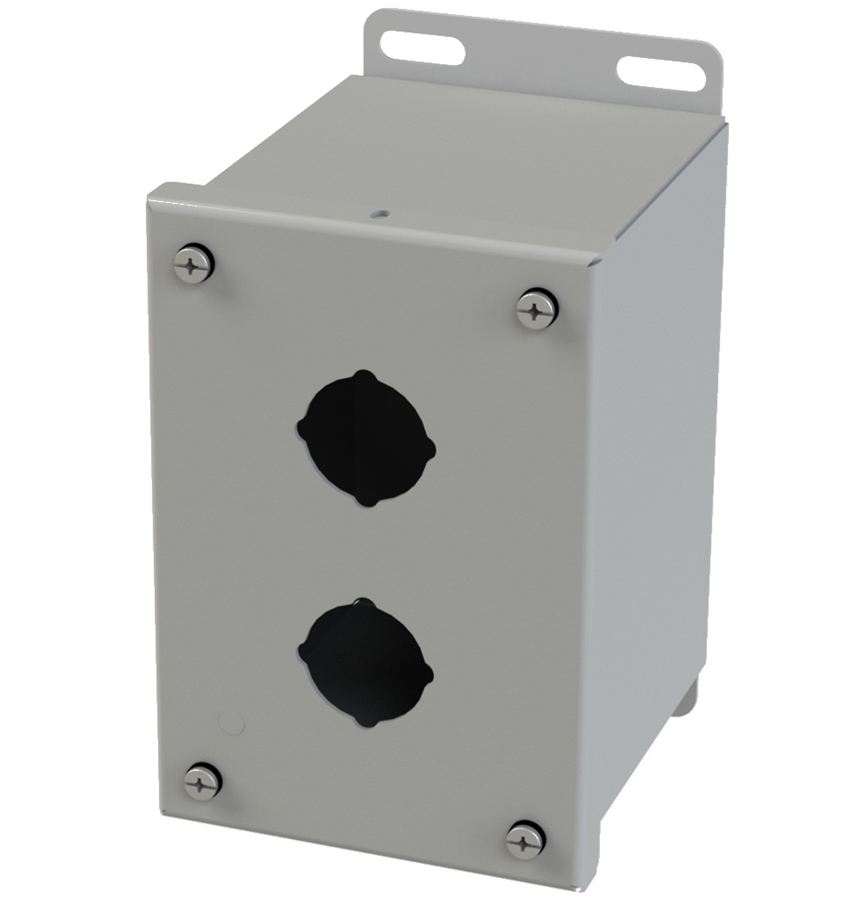

Saginaw SCE-2PBX Extra Deep Push Button Enclosure, 2 Position, 30.5mm

Saginaw Extra Deep Push Button Box, 2 Position, 30.5mm

Alternative Views:

Price: $90.15

Note: Ships in 5-7 business days, contact us to confirm current ship date
MFG P/N: SCE-2PBX
MFG: Saginaw Control & Engineering
Weight (lbs): 3

Availability: In Stock
Product Code: SCE-2PBX

Qty:

Description

Saginaw Control & Engineering SCE-2PBX is a 2 position extra deep push button enclosure. It is made from 0.063" carbon steel with an ANSI-61 gray powder coating and 30.5mm pushbutton entrances in a 1x2 layout. Ideal for keeping oil-tight push buttons, switches, and pilot lights protected from dirt & moisture.

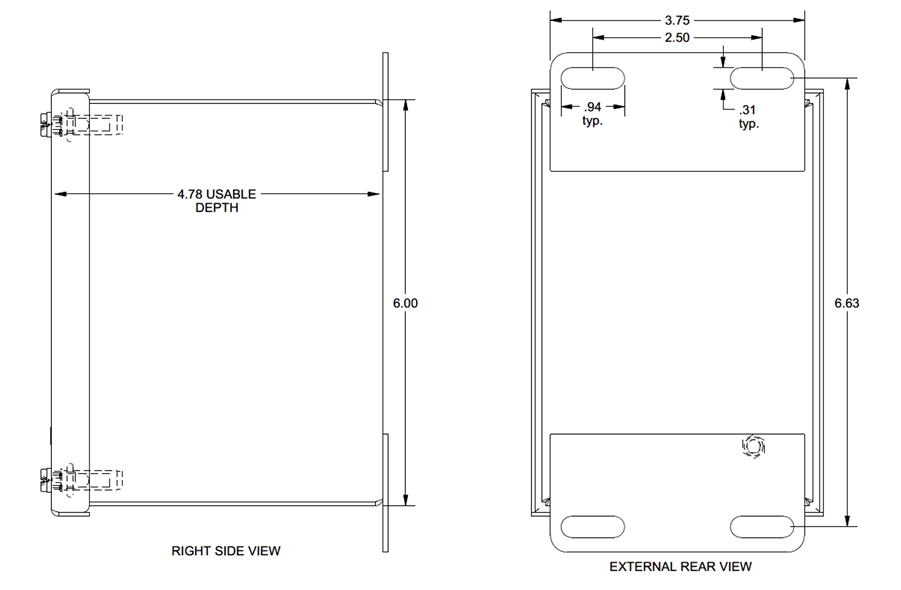

6" H x 4" W x 4.75" D (152.4mm x 101.6mm x 120.65mm)
Continuously welded seams
Cover screws thread into sealed wells
Compatible with any brand of oil-tight push buttons, switches, or pilot lights
4 way standard push button entrance
Oil / water resistant gasket
Welded mounting provision located on the back at the top and bottom
IS2 industry standards - NEMA Type 4, 12 and Type 13, UL Listed Type 4 and 12, CSA Type 4 and 12, IEC 60529, IP 66
