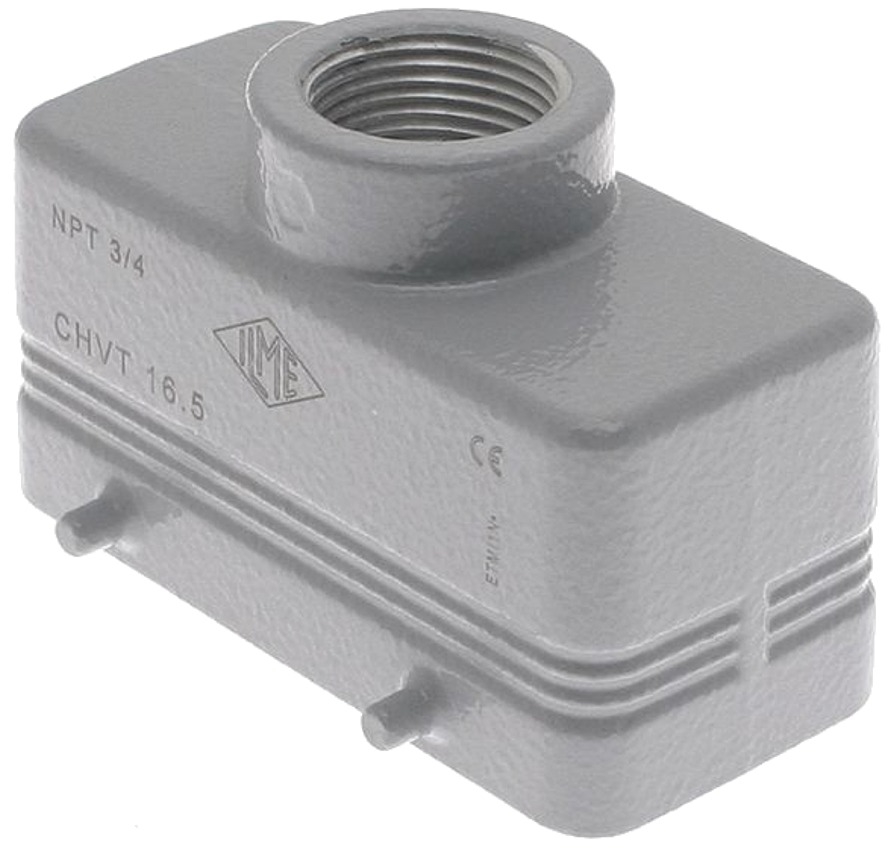

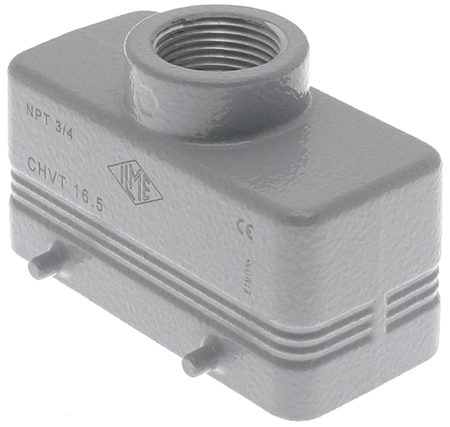

ILME CHVT-16.5 C-Type Metallic Hood, Size 77.27, 3/4" NPT, 4 Pegs

ILME CHVT-16.5
ILME CHVT-16.5 C-Type Metallic Hood, Size 77.27, 3/4" NPT, 4 Pegs

Price: $17.09
Note: Delivery: 2-5 Business Days
MFG P/N: CHVT-16.5
MFG: ILME
Weight (lbs): 0.3

Quantity in Stock :190


Availability: In Stock
Product Code: CHVT-16.5
Qty:


Description


The ILME CHVT-16.5 C-Type standard metallic hood is size 77.27 and features 4 pegs with a 3/4" NPT cable entry. The body is epoxy coated die cast aluminum with cable entry through the top. Insert center distance: 77.5 x 27mm. Rated IP 66. The CHVT-16.5 is durable and has a life expectancy over 500 cycles.

Specifications

  • Body- Epoxy Coated Die Cast Aluminum
  • ILME Series- CH
  • Insert Dimension- 77.27
  • Enclosure Dimension- 77.27
  • Housing Type- Metallic, Standard
  • Enclosure Type- Hoods for 2 Levers
  • Mounting Style- Cable
  • Hood Entry- Top
  • Hood Thread- 3/4" NPT
  • Pegs- 4 Pegs
  • Temperature Range- -40 C to 125 C (-40 F to 257 F)
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
  • Insert Center Distance- 77.5 x 27 mm (3.05" x 1.06")
  • Approvals- UL, CUL

Compatible Inserts

Series Part Number
CD CDM-40, CDF-40
CDD CDDF-72, CDDM-72
CQE CQEF-32, CQEM-32
CSH, CDSH CSHF-16, CSHM-16
CDSHF-27, CDSHM-27
CCE CCEF-16, CCEM-16
CNE CNEF-16T, CNEM-16T, CNEF-16TX, CNEM-16TX
CSEM-16, CSEF-16
CSS CSSF-16, CSSM-16
CP CPF-06, CPM-06
CX CXF-6/36, CXM-6/36
CXF-12/2, CXM-12/2
CXF-4/0, CXM-4/0, CXF-4/2, CXM-4/2

CHVT-16.5 77.27 Top Entry ILME Hood with 4 Pegs
