ILME CHVT-16.5G C-Type Metallic Hood, Size 77.27, 3/4" NPT, Double Lever

ILME CHVT-16.5G
ILME C-Type Metallic Hood, Size 77.27, 3/4" NPT, Double Lever - CHVT-16.5G



Price: $44.99
Note: Please call or email [email protected] for alternatives
MFG P/N: CHVT-16.5G
MFG: ILME
Weight (lbs): 0.6

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: CHVT-16.5G
Qty:


Description


The ILME CHVT-16.5G C-Type standard metallic hood is size 77.27 and features 2 levers with a 3/4" NPT cable entry. The body is die cast aluminum with cable entry through the top. Insert center distance: 77.5 x 27mm. Rated IP 66. The CHVT-16.5G is durable and has a life expectancy over 500 cycles.

Specifications

  • Body- Die Cast Aluminum
  • Levers- Stainless Steel
  • Handles- Polyamide
  • Gasket- Thermoplastic Elastomer
  • ILME Series- CH
  • Insert Dimension- 77.27
  • Enclosure Dimension- 77.27
  • Housing Type- Metallic, Standard
  • Enclosure Type- Hoods with 2 Levers
  • Mounting Style- Cable
  • Hood Entry- Top
  • Hood Thread- 3/4" NPT
  • Gasket- Yes
  • Temperature Range- -40 C to 125 C (-40 F to 257 F)
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
  • Insert Center Distance- 77.5 x 27 mm (3.05" x 1.06")

Compatible Inserts

Series Part Number
CD CDM-40, CDF-40
CDD CDDF-72, CDDM-72
CQE CQEF-32, CQEM-32
CSH, CDSH CSHF-16, CSHM-16
CDSHF-27, CDSHM-27
CCE CCEF-16, CCEM-16
CNE CNEF-16T, CNEM-16T, CNEF-16TX, CNEM-16TX
CSEM-16, CSEF-16
CSS CSSF-16, CSSM-16
CP CPF-06, CPM-06
CX CXF-6/36, CXM-6/36
CXF-12/2, CXM-12/2
CXF-4/0, CXM-4/0, CXF-4/2, CXM-4/2

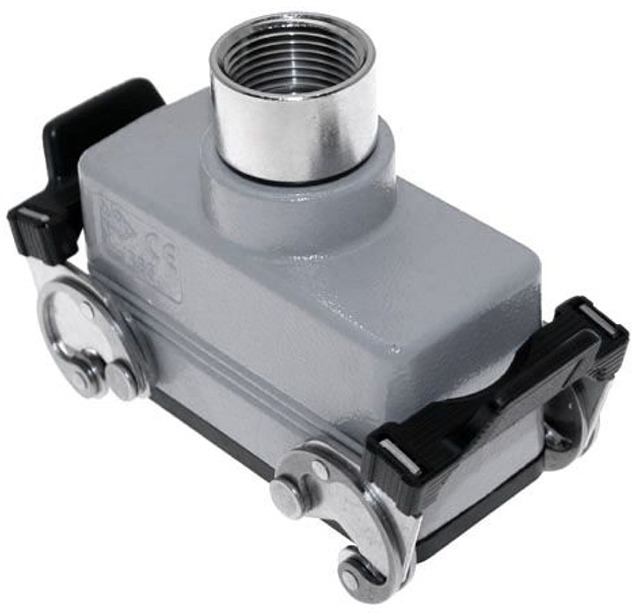

CHVT-16.5G 77.27 Top Entry ILME Hood with 2 Levers
