Mencom DP1-RJ11-R-16 Panel Interface Connector, Simplex outlet, RJ11, 3A reset, 16LS housing

Alternative Views:

Price: $122.30

Note: Please call or email [email protected] for alternatives
MFG P/N: DP1-RJ11-R-16
MFG: Mencom
Weight (lbs): 1

Quantity in Stock :(Out of Stock)

Availability: Out of Stock
Product Code: DP1-RJ11-R-16

Qty:

Description

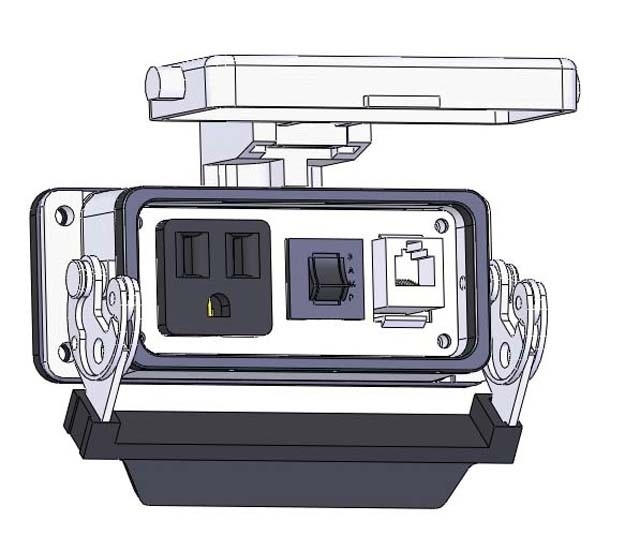

Mencom Panel Interface Connectors (PIC) mount to the exterior of the control panel, allowing access to the PLC or PAC without having to open the panel door. The Mencom DP1-RJ11-R-16 PIC features a 120V Simplex receptacle, RJ11 port, and a 3 amp resettable fuse in a size 16 housing. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.

Specifications

Body- Epoxy coated die cast aluminum
Gasket- Thermoplastic elastomer
Handle- Polyamide
Levers- Stainless Steel
Volts- 125 V
Amps- 3 Amps
SCCR- 10kA
Housing- Size 16 Bulkhead Housing
Power Ports- 120V Simplex Receptacle

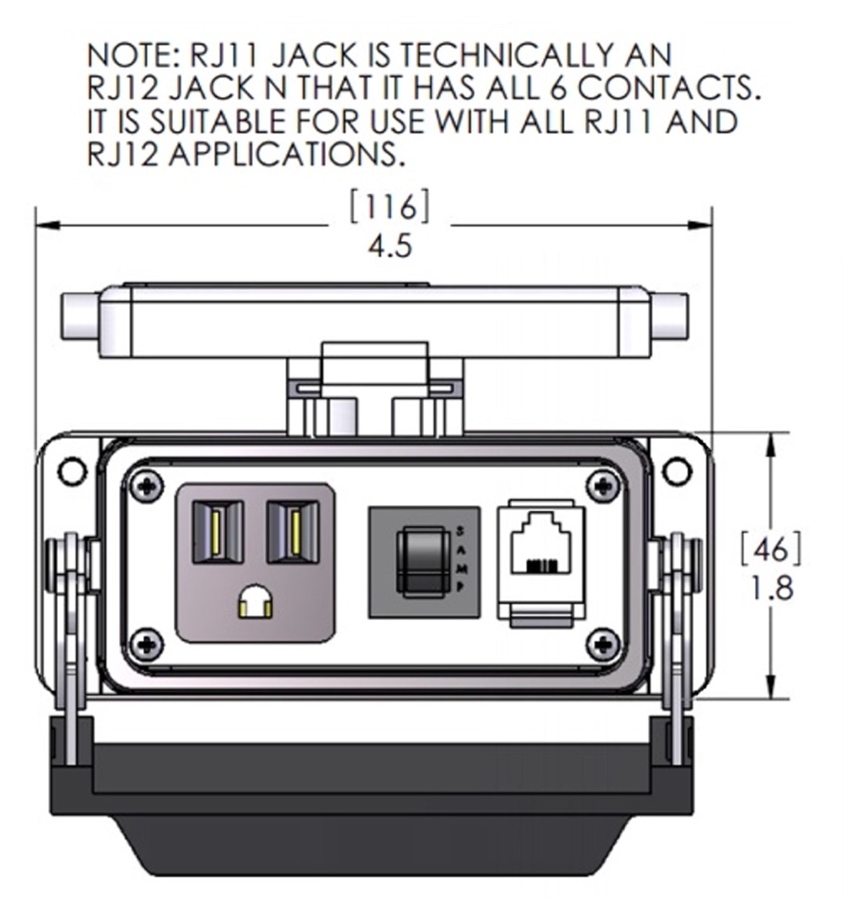

RJ / Ethernet- RJ11
Fuse- 3 Amp resettable
Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
Approvals- UL & CUL Recognized

Mencom Panel Interface Connector Part Number Guide

Mencom Panel Interface Connector Guide
