Mencom DB09-RJ45-10LS PIC with DB9 and RJ45

Mencom Panel Interface Connectors (PIC) mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet. The Mencom DB09-RJ45-10LS PIC features a 9 Pin Female Ext/Male Interior D-Sub and female/female ethernet in a size 10 housing. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.

Specifications

Body- Epoxy coated die cast aluminum
Gasket- Thermoplastic elastomer
Handle- Polyamide
Levers- Stainless Steel

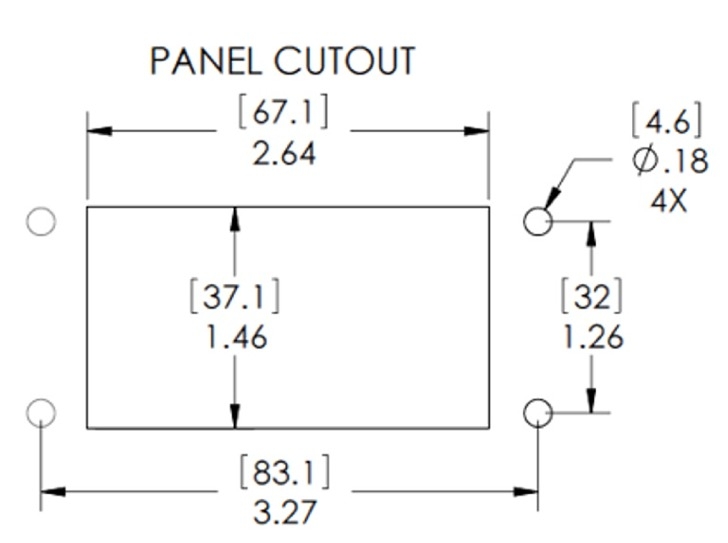

Housing- Size 10 Bulkhead Housing
D-Sub- 9 Pin D-Sub Female Ext. / Male Int.
RJ / Ethernet- Ethernet Female/Female
