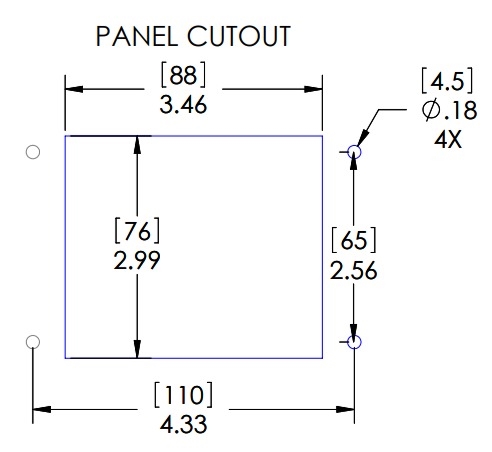

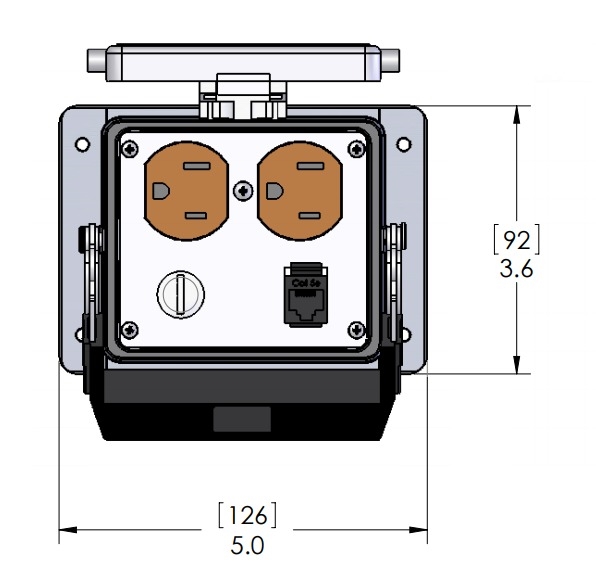

The Mencom DP-RJ45-NR-32 panel interface connector (PIC) features a 120V Duplex Receptacle and a Female/Female Ethernet RJ45 port in a size 32 housing. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch. Mencom PICs mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet.

Specifications

Body- Epoxy coated die cast aluminum
Gasket- Thermoplastic elastomer
Handle- Polyamide
Levers- Stainless Steel
Volts- 125 V
Amps- 15 Amps
SCCR- 10kA

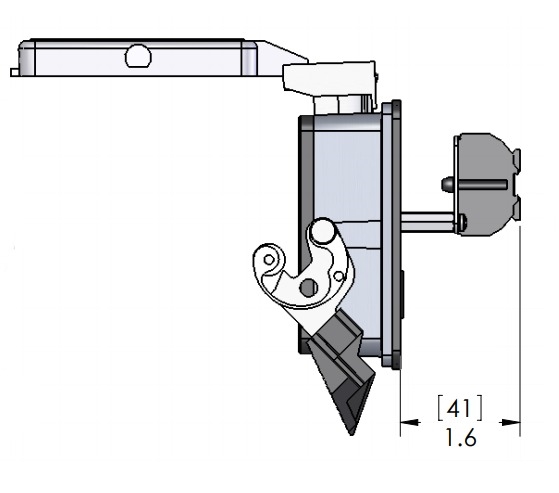

Housing- Size 32 Bulkhead Housing
Power Ports- 120V Duplex Receptacle
RJ / Ethernet- Ethernet Female / Female RJ45
Reset- No Reset
IP Rating- IP 65 (Total protection from dust and low pressure water jets from any direction)

Mencom DP-RJ45-NR-32 Panel Interface Connector with RJ45 Port & Duplex Outlet
