Mencom GF-DB9-R-32 Panel Interface Connector, GFCI Duplex outlet, DB9, 3A reset

Alternative Views:

Price: $235.34

Note: Please call or email [email protected] for alternatives
MFG P/N: GF-DB9-R-32
MFG: Mencom
Weight (lbs): 1.63

Quantity in Stock :(Out of Stock)

Availability: Out of Stock
Product Code: GF-DB9-R-32

Qty:

Description

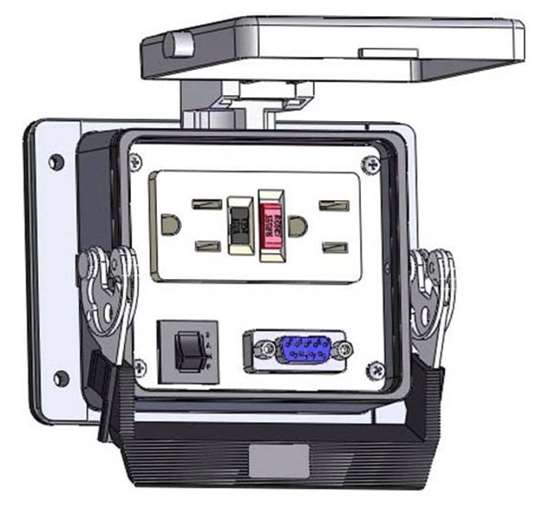

Mencom Panel Interface Connectors (PIC) mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet. The Mencom GF-DB9-R-32 PIC features a 120V GFCI Duplex Receptacle, a 9 Pin Female Ext/Male Interior D-Sub, and a 3 amp resettable fuse in a size 32 housing. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.

Specifications

Body- Epoxy coated die cast aluminum
Gasket- Thermoplastic elastomer
Handle- Polyamide
Levers- Stainless Steel
Volts- 125 V
Amps- 3 Amps
SCCR- 2kA
Housing- Size 32 Bulkhead Housing
Power Ports- 120V GFCI Duplex Receptacle
D-Sub- 9 Pin D-Sub Female Ext. / Male Int.
Fuse- 3 Amp resettable
