Mencom DP-DB15-RJ45-R-32 Panel Interface Connector, Duplex outlet, DB15, RJ45, 3A reset

Mencom DP-DB15-RJ45-R-32
Mencom Panel Interface Connector, Duplex outlet, DB15, RJ45, 3A reset



Alternative Views:


Price: $187.38
Note: Please call or email [email protected] for alternatives
MFG P/N: DP-DB15-RJ45-R-32
MFG: Mencom
Weight (lbs): 1.5

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: DP-DB15-RJ45-R-32
Qty:


Description


Mencom Panel Interface Connectors (PIC) mount on the exterior of the control cabinet and allow access to the PLC or PAC without having to open the panel door. The Mencom DP-DB15-RJ45-R-32 PIC features a 120V Duplex Receptacle, a 15 Pin Female Ext/Male Interior D-Sub, RJ45 port, and a 3 Amp resettable fuse in a size 32 housing. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.

Specifications

  • Body- Epoxy coated die cast aluminum
  • Gasket- Thermoplastic elastomer
  • Handle- Polyamide
  • Levers- Stainless Steel
  • Volts- 125 V
  • Amps- 3 Amps
  • SCCR- 10kA
  • Housing- Size 32 Bulkhead Housing
  • Power Ports- 120V Duplex Receptacle
  • D-Sub- 15 Pin D-Sub Female Ext. / Male Int.
  • RJ / Ethernet- RJ45
  • Fuse- 3 Amp Resettable
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)

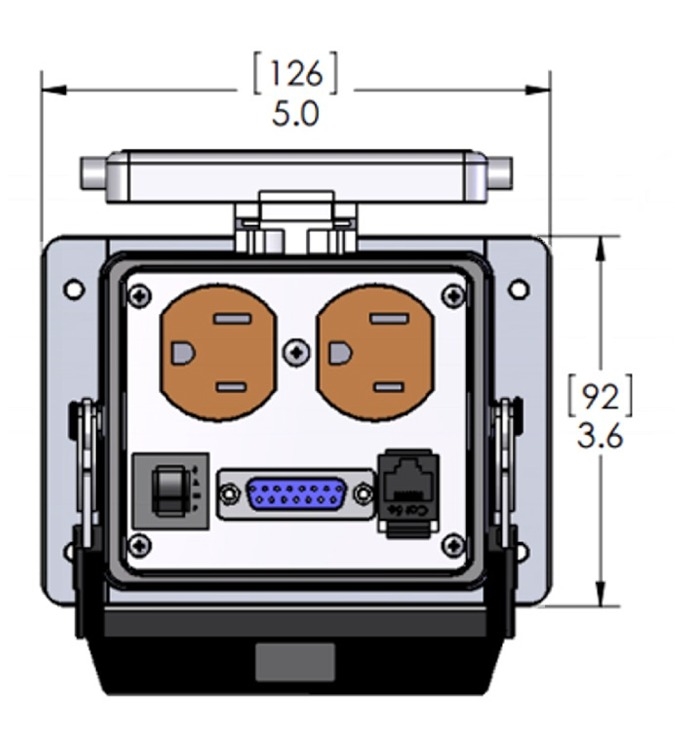

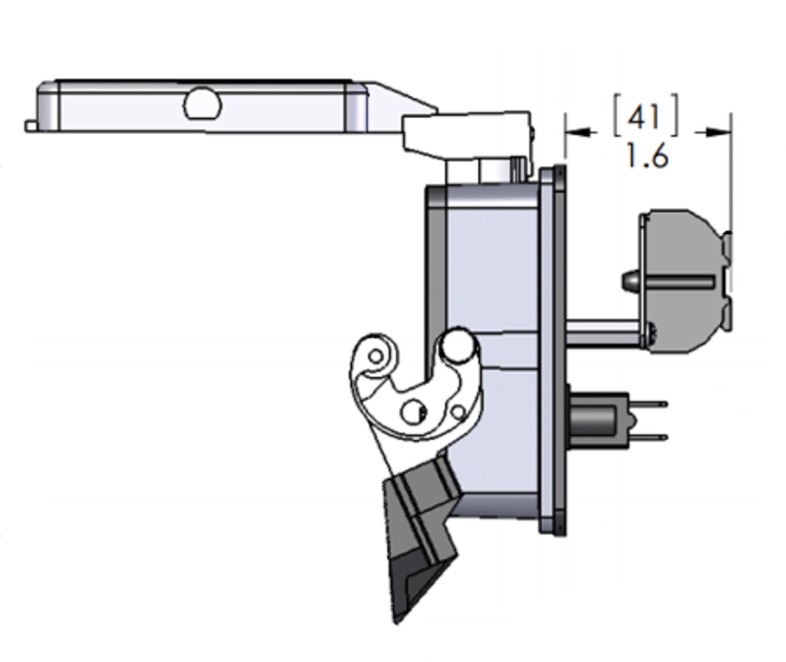

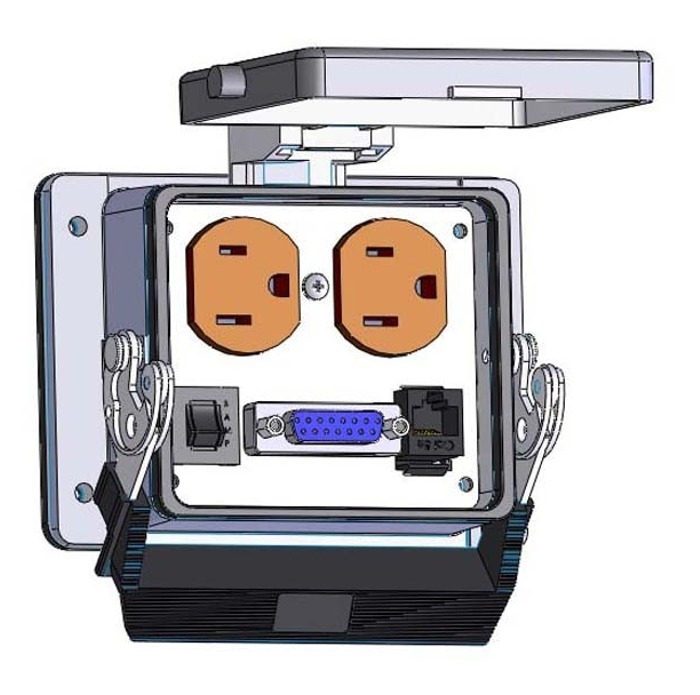

Mencom DP-DB15-RJ45-R-32 PIC with 15 Pin D-Sub & RJ45 Port
