Mencom Panel Interface Connectors (PICs) attach to the exterior of the control panel to allow access to the PLC or PAC without needing to open the control cabinet. The Mencom DP-RJ45-USB-BFAF-R-32 PIC features a 120V Duplex Receptacle, RJ45 port, USB port, and a 3 amp resettable fuse in a size 32 housing. USB is Form B female to Form A female. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.

Specifications

Body- Epoxy coated die cast aluminum
Gasket- Thermoplastic elastomer
Handle- Polyamide
Levers- Stainless Steel
Volts- 125 V
Amps- 3 Amps
SCCR- 10kA
Housing- Size 32 Bulkhead Housing
Power Ports- 120V Duplex Receptacle
RJ / Ethernet- RJ45
USB- Single Form B Female to Form A Female
Fuse- 3 Amp Resettable
Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)

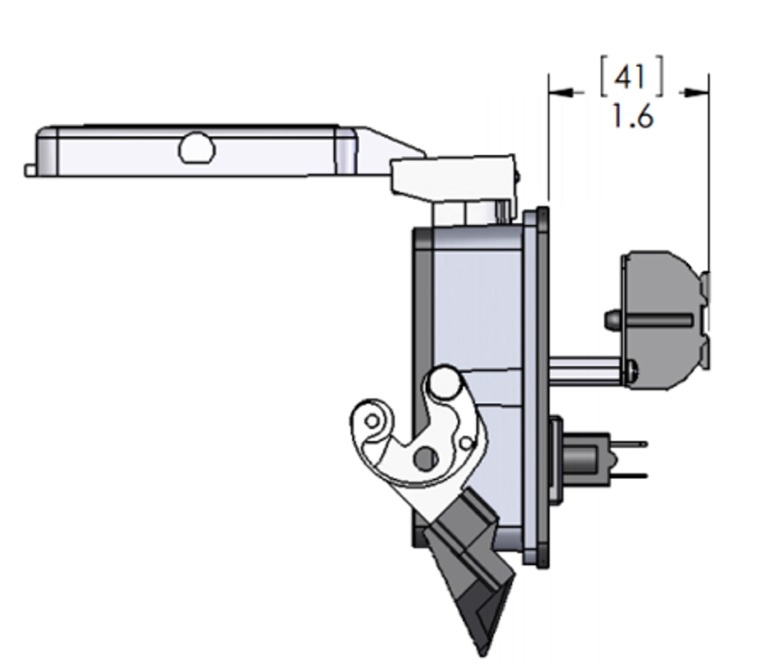

Mencom DP-RJ45-USB-BFAF-R-32 Panel Interface Connector
