Sealcon CD09CR-GY PG 9 Dome .08" - .24" (2 - 6 mm) O.D. Elongated Cord Grip

Sealcon CD09CR-GY PG Dome Strain Relief
Sealcon CD09CR-GY PG 9 Dome .08" - .24" (2 - 6 mm) O.D. Elongated Cord Grip



Alternative Views:


Our Price: $1.20
MFG P/N: CD09CR-GY
MFG: Sealcon
Weight (lbs): 0.01

Product Code: CD09CR-GY
Qty:


Description

Sealcon CD09CR-GY high quality gray nylon cord grip is liquid tight to 150 psi. Elongated PG 9 Thread, Accommodates .08" - .24" (2 - 6 mm) O.D cable. Sold Individually. (Locking nut & O-Ring sold separately) Also known as Hummel # 1.209.0900.61

Thread Size/Type PG 9
  • Nylon 6/6 Material with Buna-N Seal
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP69K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Vibration Resistant Dome
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval

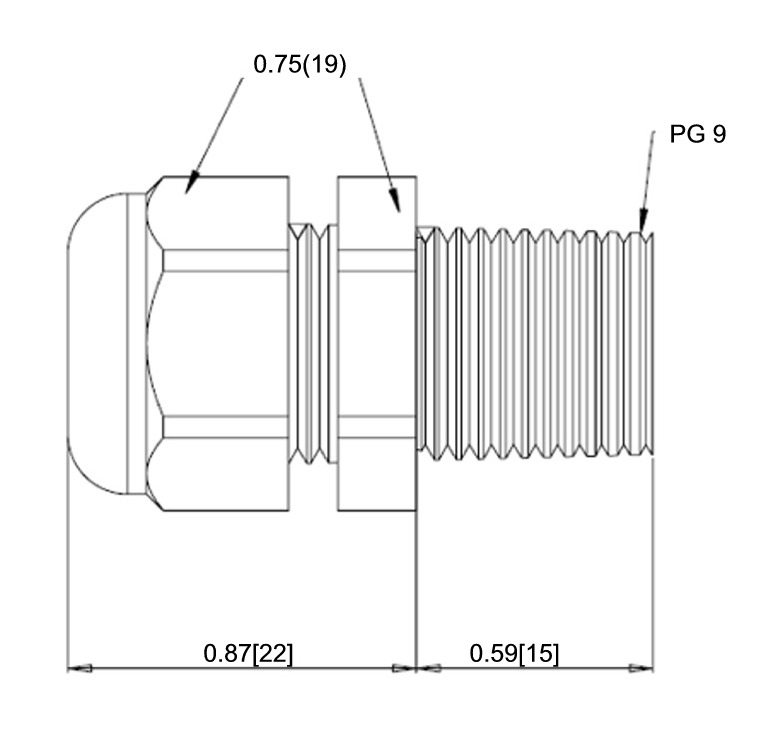

Through Hole Dia. .60" (15.2 mm)
Body Length .87" (22 mm)
Thread Length .59" (15 mm)
Wrench Flat Dome/Body .75" (19 mm)

Sealcon Elongated PG 9 Nylon / Plastic liquid tight fittings are used in many industries when attaching cable or wire to different applications. Also known as a cord grip or cable gland, it is able to provide a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Cord grips with elongated threads are typically used when it needs to go through a thick wall, or simply if a longer thread length serves the application better. Sealcon patented overlapping clamping splines, recessed custom grommets are made to help protect your cable from damage and the elements. The CD09CR-GY provides a great amount of Pull-out resistance by applying a concentric force on all points of the cable.

Approvals
  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd

CD09CR-GY PG 9 Elongated Gray Cord Grip
