Sealcon SUPCT060810HML Hinged Lid Enclosure, 11.88" X 10.03" X 7.47", Clear Cover, Metal Latch

Sealcon Hinged Lid Enclosure, 11.88" X 10.03" X 7.47", Clear Cover, Metal Latch

Alternative Views:

Price: $103.89

Note: Please call or email [email protected] for alternatives
MFG P/N: SUPCT060810HML
MFG: Sealcon
Weight (lbs): 4.1

Quantity in Stock :(Out of Stock)

Availability: Out of Stock
Product Code: SUPCT060810HML

Qty:

Description

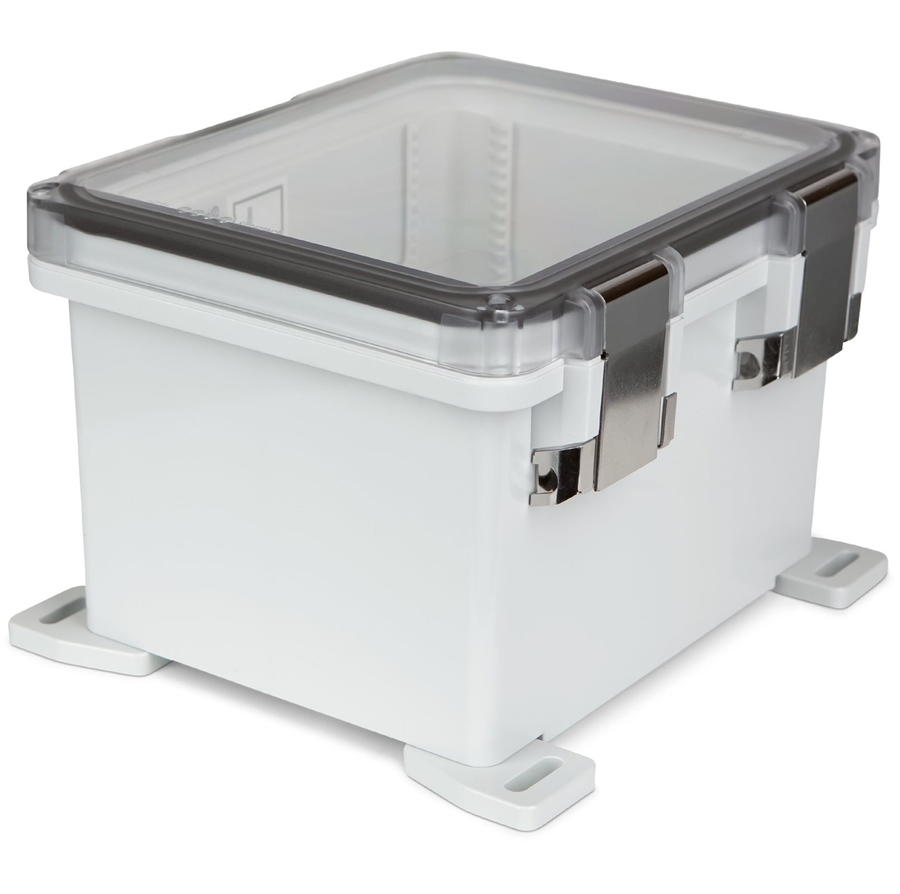

The Sealcon SUPCT060810HML wall mount hinged lid enclosure is made from polycarbonate with a clear cover and metal latches. Also known as Ensto UPCT100806HML

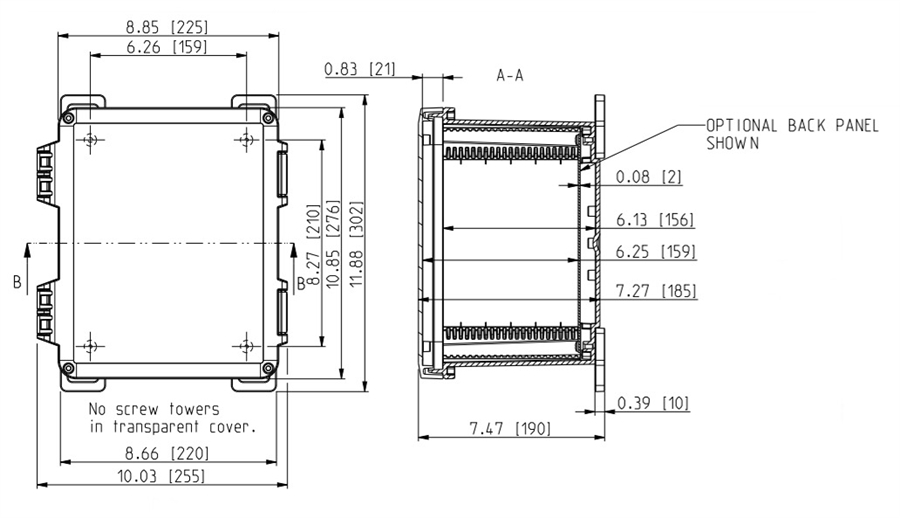

Dimensions (with mounting feet): 11.8" Length x 10.03" Width x 7.47" Depth
-40 C to 80 C (-40 F to 176 F)
Type 4X, 12, 13, 6P

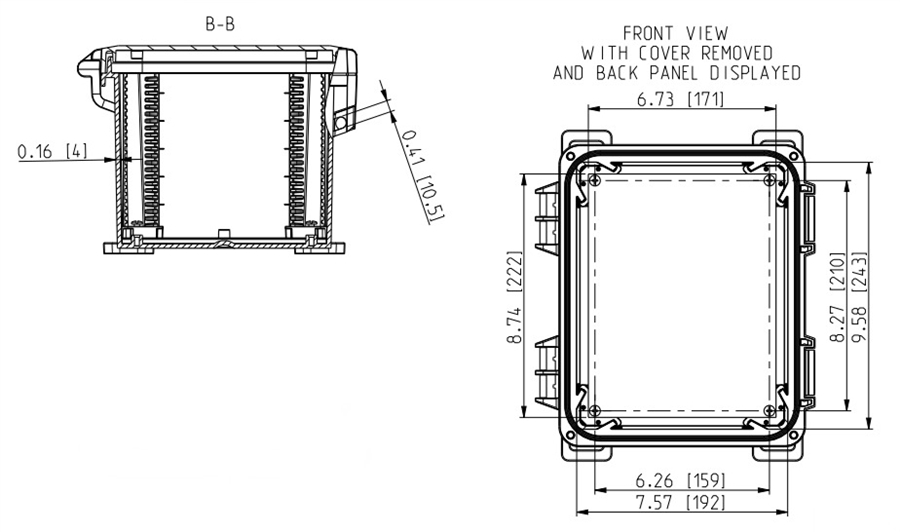

Corner 'elevator' brackets to mount the back panel at the desired depth (preinstalled at the bottom)
Elevator pieces can be mounted at 1/4" increments

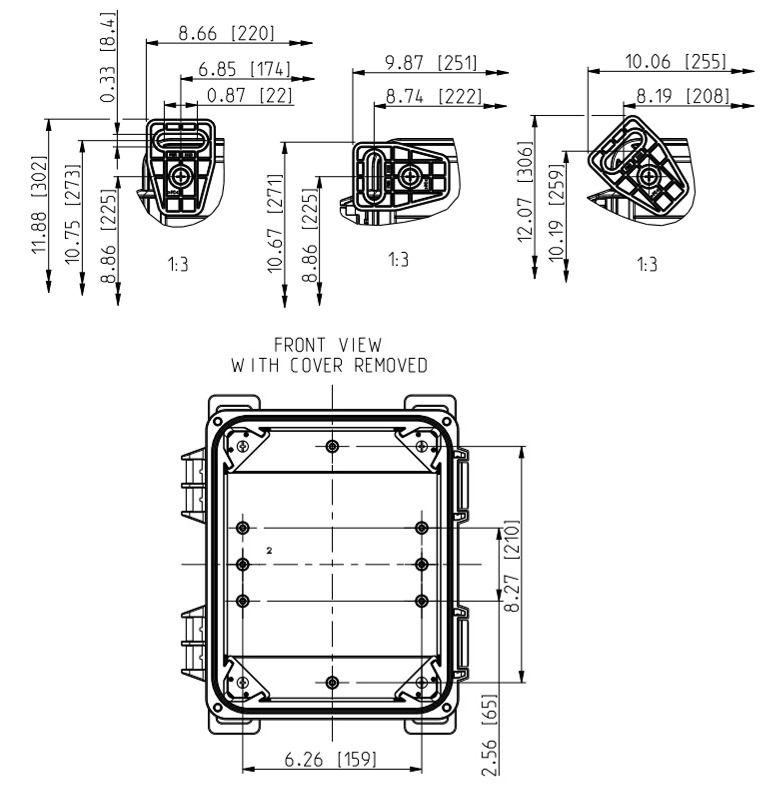

Mounting feet can be attached in one of three positions
Lid can be locked with a padlock
4 mm wall thickness (0.15")
Hydrophobic PUR gasket
Impact test: IK10
Insulation: Class II
Rated IP 69 (Total protection from dust and high temperature / high pressure water jets from any direction)
Includes 2 cover screws & screws for mounting feet
Approvals: CE, RoHS Compliant, UL & CUL Listed

Sealcon U Series Enclosure Installation Instructions

11.88" X 10.03" X 7.47" Wall Mount Enclosure Box with Latch UPCT100806HML
