Saginaw Control & Engineering SCE-4SPBSS is a 4 position push button enclosure. It is made from 0.063" 304 stainless steel with a #4 brushed finish and four 30.5mm pushbutton entrances in a 2x2 configuration. Used for keeping oil-tight push buttons, switches, and pilot lights protected when in corrosive environments or hose down applications.

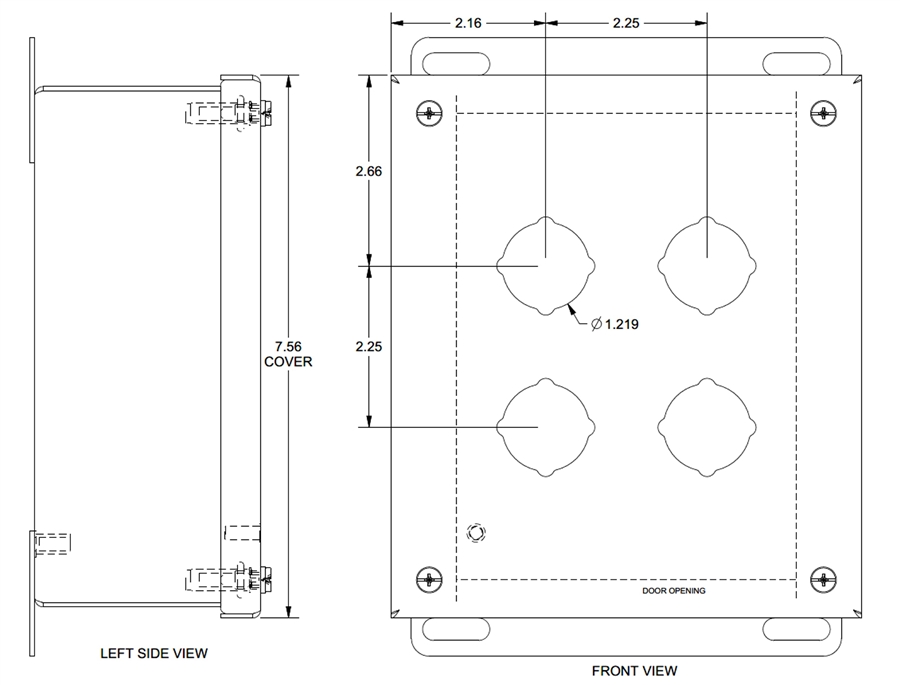

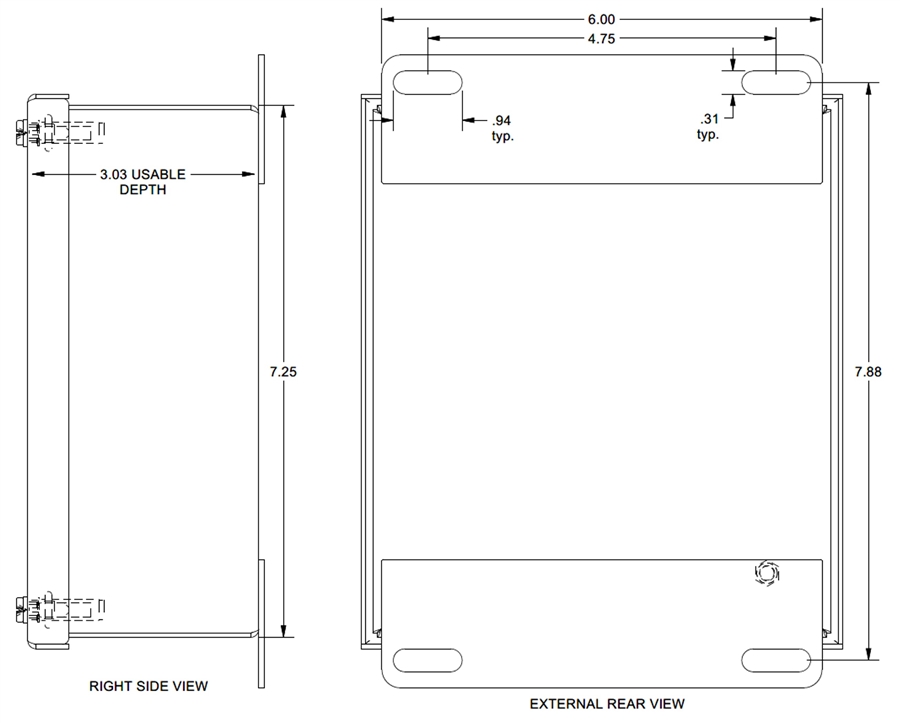

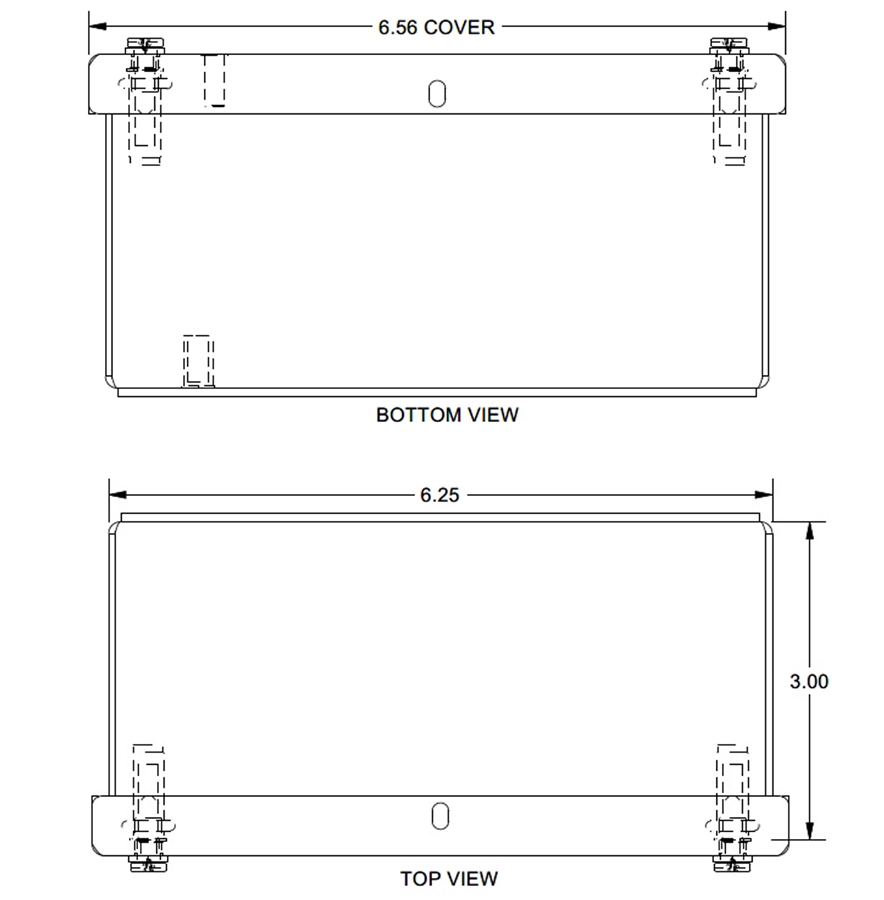

- 7.25" H x 6.25" W x 3" D (184.15mm x 158.75mm x 76.2mm)
- Seams are continuously welded
- Cover screws thread into sealed wells
- Accepts any brand of oil-tight push buttons, switches, or pilot lights
- 4 way standard push button entrances
- Cover is removable
- Gasket is oil & water resistant
- Welded mounting provision located on the back at the top and bottom
- IS5 industry standards - NEMA Type 4, 4x, 12 and Type 13, UL Listed Type 4, 4x, and 12, CSA Type 4, 4x, and 12, IEC 60529, IP 66
|
|
|
 |
|
 |
|
