Saginaw SCE-4SPB Push Button Enclosure, 4 Position, 30.5mm, 2x2

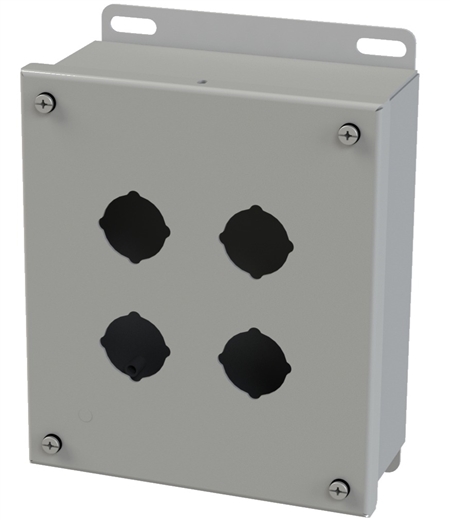

Saginaw SCE-4SPB Push Button Box, 4 Position, 30.5mm
Saginaw SCE-4SPB Push Button Enclosure, 4 Position, 30.5mm, 2x2

Alternative Views:
Price: $92.54
Note: Ships in 5-7 business days, contact us to confirm current ship date
MFG P/N: SCE-4SPB
MFG: Saginaw Control & Engineering
Weight (lbs): 6



Availability: In Stock
Product Code: SCE-4SPB
Qty:

Description


Saginaw Control & Engineering SCE-4SPB is a 4 position push button enclosure. It is made from 0.063" carbon steel with an ANSI-61 gray powder coating and 30.5mm pushbutton entrances in a 2x2 configuration. Used for keeping oil-tight push buttons, switches, and pilot lights protected from dirt & moisture.

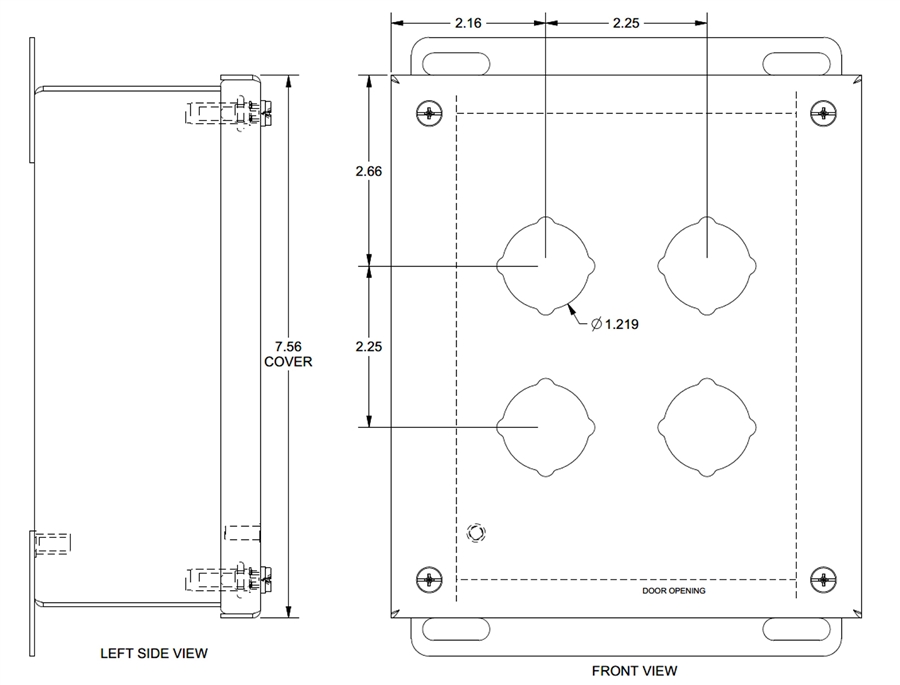

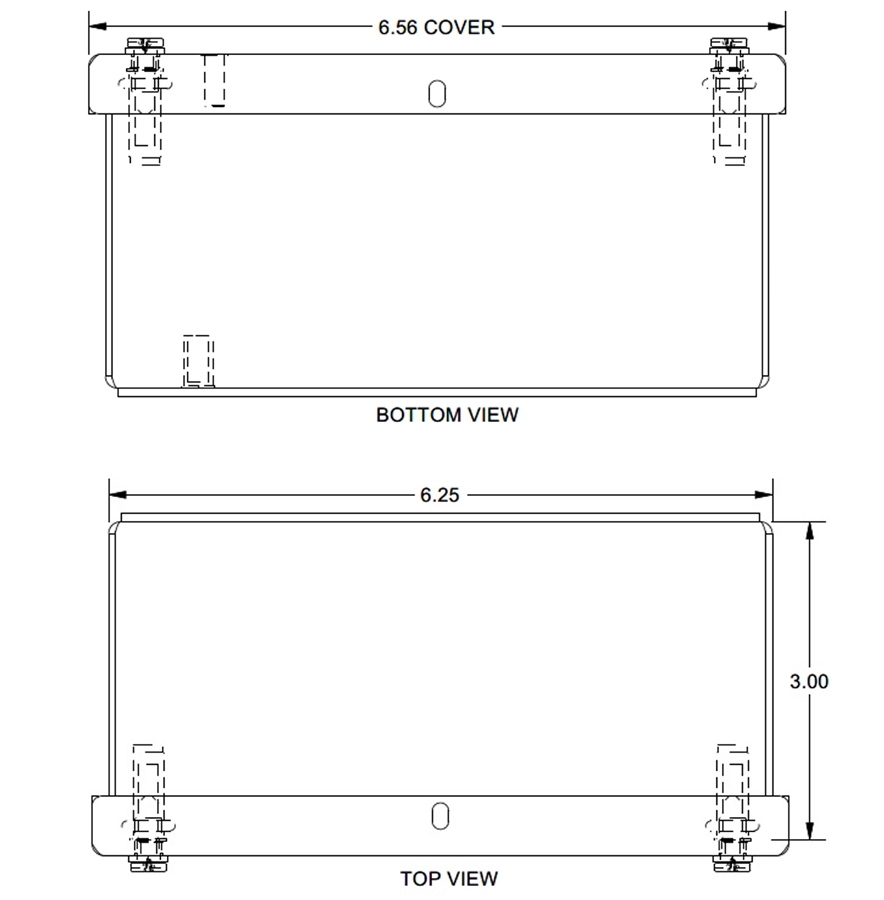

  • 7.25" H x 6.25" W x 3" D (184.15mm x 158.75mm x 76.2mm)
  • Seams are continuously welded
  • Cover screws thread into sealed wells
  • Accepts any brand of oil-tight push buttons, switches, or pilot lights
  • 4 way standard push button entrances
  • Gasket is oil & water resistant

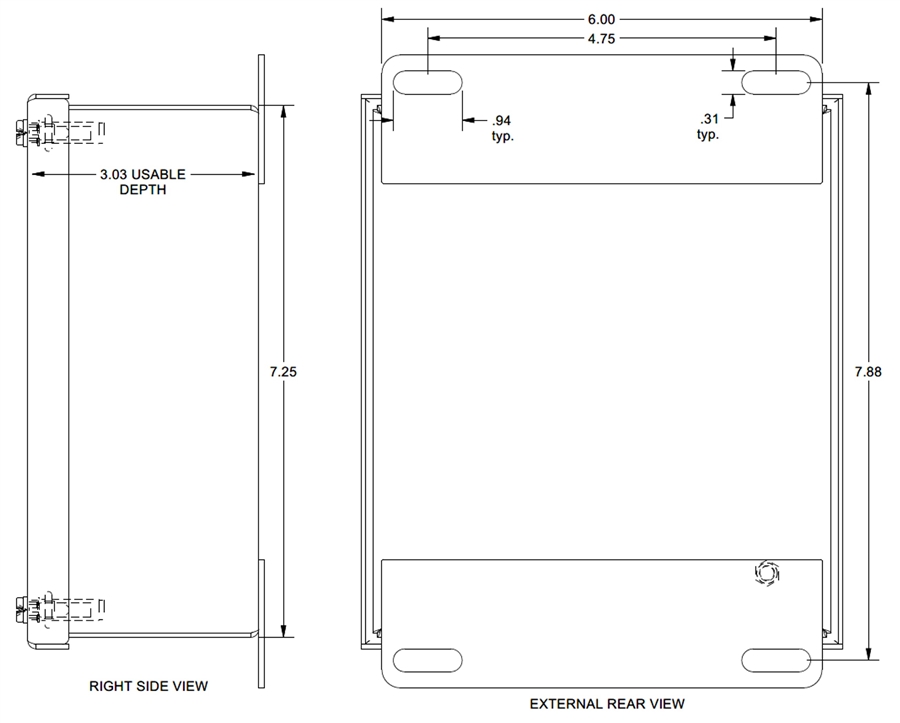

  • Welded mounting provision located on the back at the top and bottom
  • IS2 industry standards - NEMA Type 4, 12 and Type 13, UL Listed Type 4 and 12, CSA Type 4 and 12, IEC 60529, IP 66
