Saginaw SCE-4SPBXI Extra Deep Push Button Enclosure, 4 Position, 22.5mm

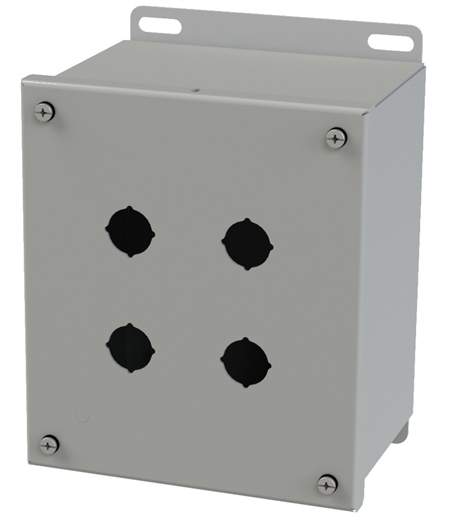

Saginaw Control & Engineering SCE-4SPBXI is a 4 position extra deep push button enclosure. It is made from 0.063" carbon steel with an ANSI-61 gray powder coating and 22.5mm pushbutton entrances in a 2x2 layout. Useful for keeping oil-tight push buttons, switches, and pilot lights protected from dirt & moisture. (See link to applicable push buttons below)

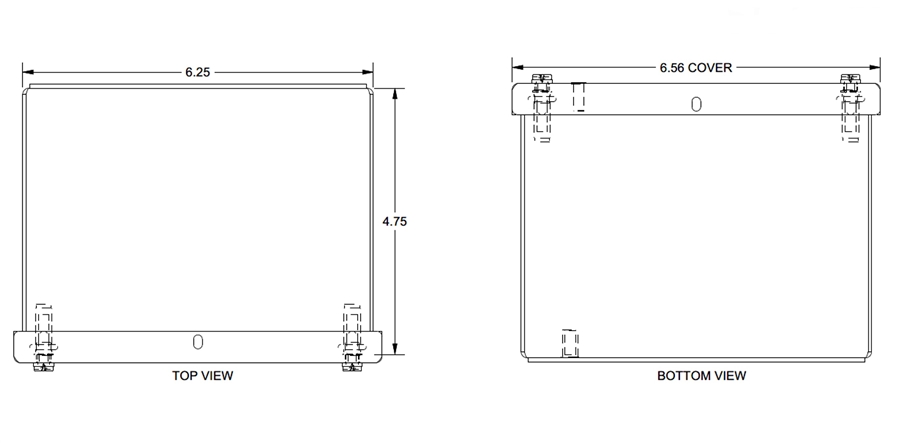

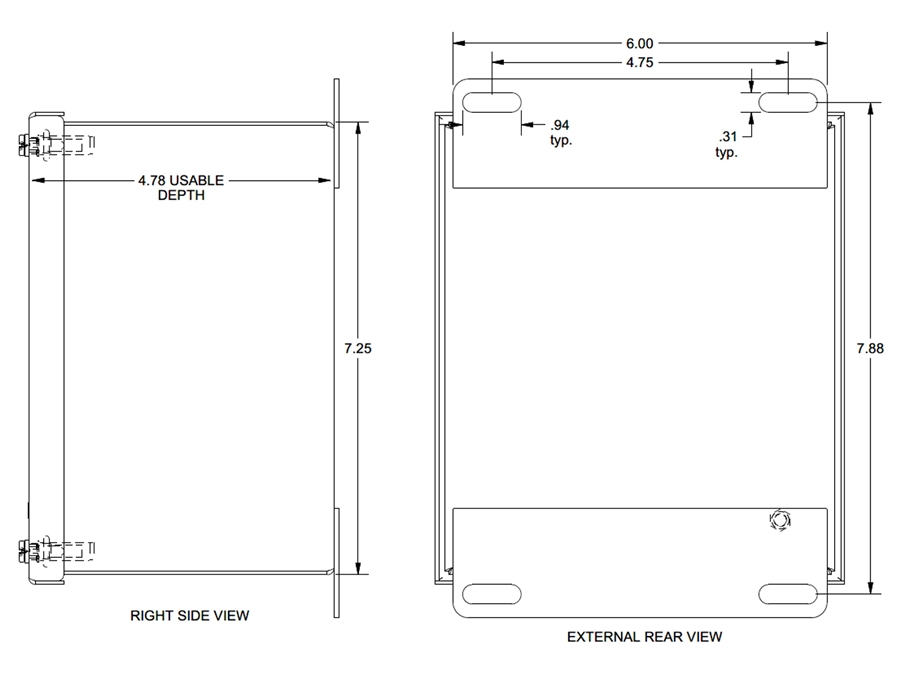

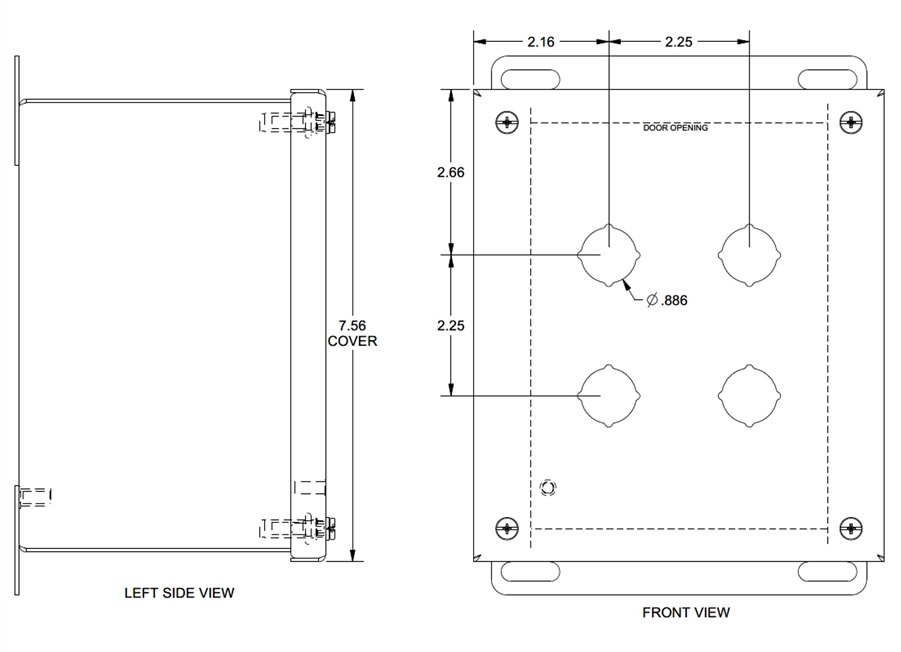

• 7.25" H x 6.25" W x 4.75" D (184.15mm x 158.75mm x 120.65mm)
• Seams are continuously welded
• Cover screws thread into sealed wells
• Works with any brand of oil-tight push buttons, switches, or pilot lights
• 4 way standard push button entrance
• Oil / water resistant gasket
• Welded mounting plates located on the back at the top and bottom
• Powder coating on the inside and outside
• IS2 industry standards - NEMA Type 4, 12 and Type 13, UL Listed Type 4 and 12, CSA Type 4 and 12, IEC 60529, IP 66
