Saginaw SCE-3PBX Extra Deep Push Button Enclosure, 3 Position, 30.5mm

Saginaw Extra Deep Push Button Box, 3 Position, 30.5mm
Saginaw SCE-3PBX Extra Deep Push Button Enclosure, 3 Position, 30.5mm

Alternative Views:
Price: $97.51
Note: Ships in 5-7 business days, Priority Shipping Unavailable. If stock is depleted, average factory lead time is 2-4 weeks. Contact us to confirm current ship date
MFG P/N: SCE-3PBX
MFG: Saginaw Control & Engineering
Weight (lbs): 3



Availability: In Stock
Product Code: SCE-3PBX
Qty:

Description


Saginaw Control & Engineering SCE-3PBX is a 3 position extra deep push button enclosure. It is made from 0.063" carbon steel with an ANSI-61 gray powder coating and 30.5mm pushbutton entrances in a 1x3 layout. Ideal for keeping oil-tight push buttons, switches, and pilot lights protected from dirt & moisture.

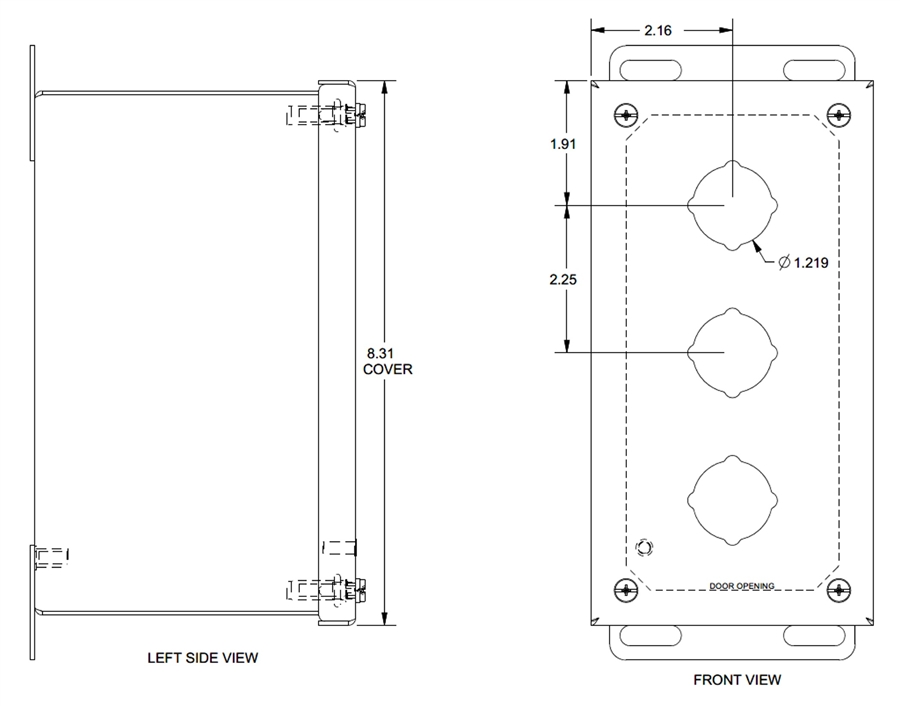

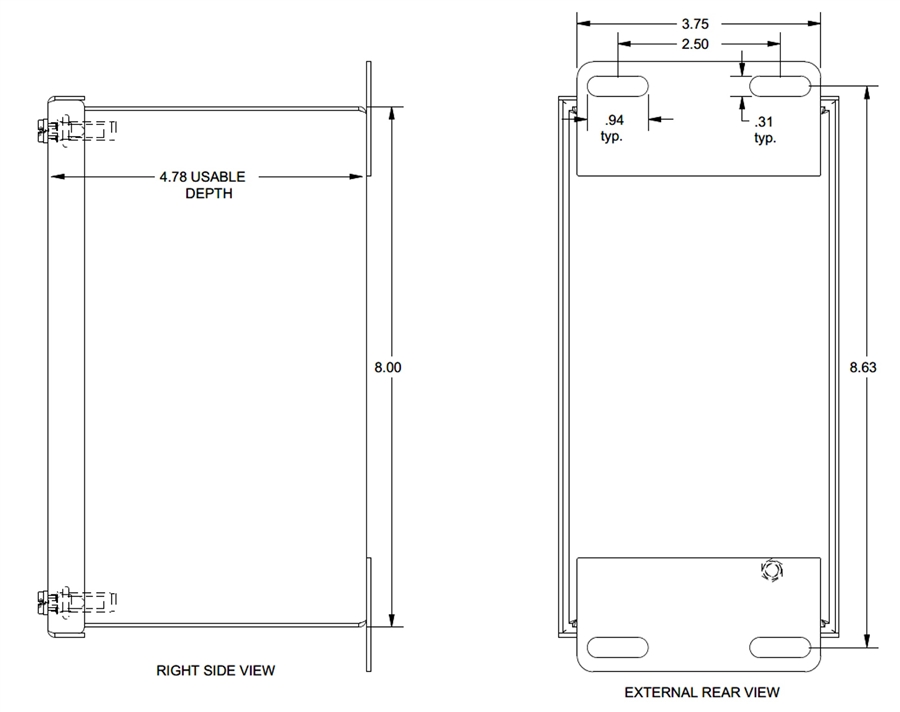

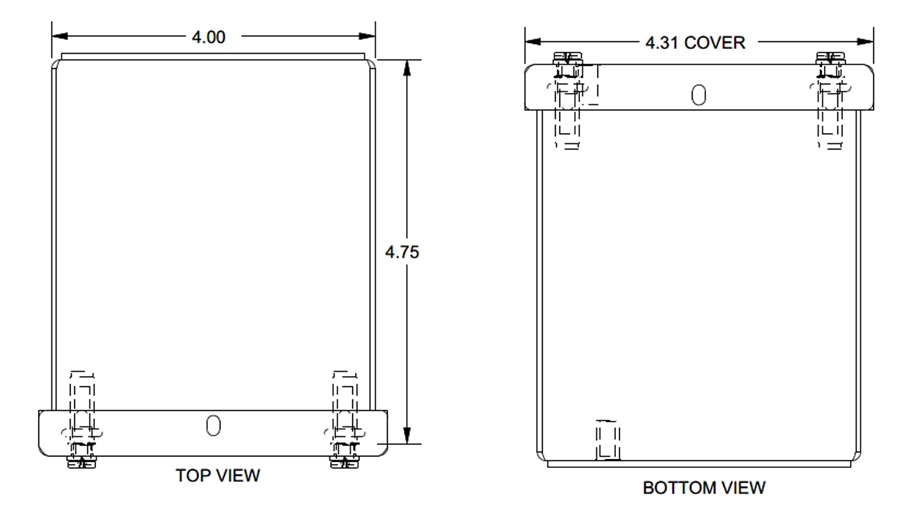

  • 8" H x 4" W x 4.75" D (203.2mm x 101.6mm x 120.65mm)
  • Continuously welded seams
  • Cover screws thread into sealed wells
  • Compatible with any brand of oil-tight push buttons, switches, or pilot lights
  • 4 way standard push button entrance
  • Oil / water resistant gasket
  • Welded mounting provision located on the back at the top and bottom
  • IS2 industry standards - NEMA Type 4, 12 and Type 13, UL Listed Type 4 and 12, CSA Type 4 and 12, IEC 60529, IP 66
