Saginaw SCE-3PBI Push Button Enclosure, 3 Position, 22.5mm

Saginaw SCE-3PBI Push Button Box, 3 Position, 22.5mm
Saginaw SCE-3PBI Push Button Enclosure, 3 Position, 22.5mm

Alternative Views:
Price: $74.37
Note: Ships in 5-7 business days, Priority Shipping Unavailable. If stock is depleted, average factory lead time is 2-4 weeks. Contact us to confirm current ship date
MFG P/N: SCE-3PBI
MFG: Saginaw Control & Engineering
Weight (lbs): 3



Availability: In Stock
Product Code: SCE-3PBI
Qty:

Description

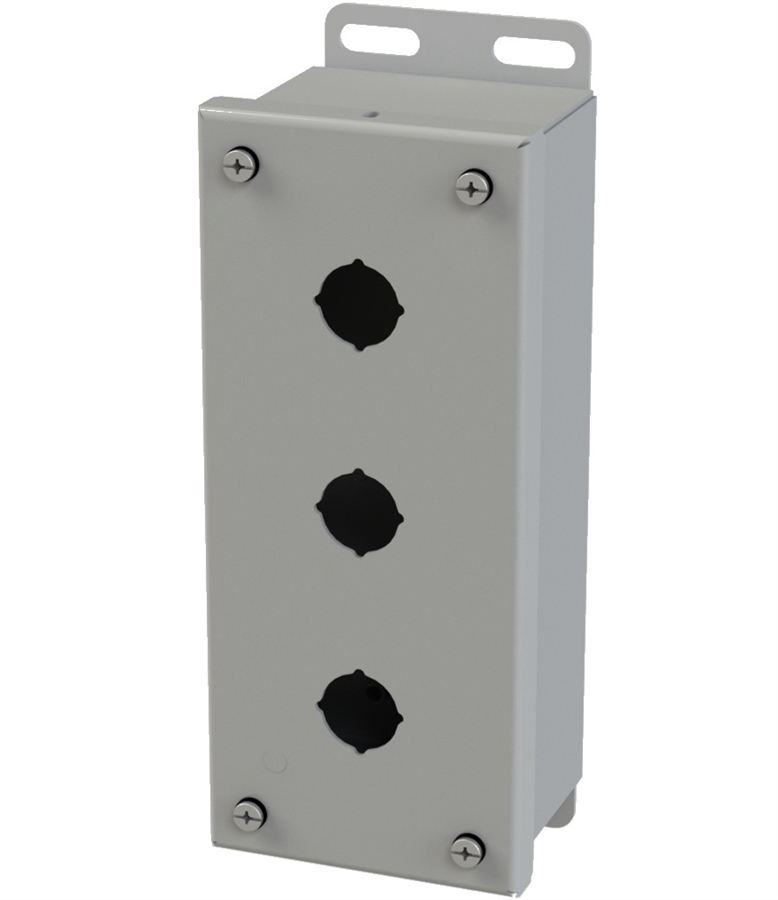

Saginaw Control & Engineering SCE-3PBI is a 3 position push button enclosure. It is made from 0.063" carbon steel with an ANSI-61 gray powder coating and 22.5mm pushbutton entrances in a 1x3 configuration. Ideal for keeping oil-tight push buttons, switches, and pilot lights protected from dirt & moisture. (See link to applicable push buttons below)

  • 8" H x 3.25" W x 2.75" D (203.2mm x 82.55mm x 69.85mm)
  • Continuously welded seams
  • Cover screws thread into sealed wells
  • Works with any brand of oil-tight push buttons, switches, or pilot lights
  • 4 way standard push button entrances
  • Oil / water resistant gasket
  • Welded mounting provision located on the back at the top and bottom
  • IS2 industry standards - NEMA Type 4, 12 and Type 13, UL Listed Type 4 and 12, CSA Type 4 and 12, IEC 60529, IP 66
