Saginaw SCE-3PBXI Extra Deep Push Button Enclosure, 3 Position, 22.5mm

Saginaw Extra Deep Push Button Box, 3 Position, 22.5mm

Alternative Views:

Price: $97.51

Note: Ships in 5-7 business days, contact us to confirm current ship date
MFG P/N: SCE-3PBXI
MFG: Saginaw Control & Engineering
Weight (lbs): 4

Availability: In Stock
Product Code: SCE-3PBXI

Qty:

Description

Saginaw Control & Engineering SCE-3PBXI is a 3 position extra deep push button enclosure. It is made from 0.063" carbon steel with an ANSI-61 gray powder coating and 22.5mm pushbutton entrances in a 1x3 layout. Useful for keeping oil-tight push buttons, switches, and pilot lights protected from dirt & moisture. (See link to applicable push buttons below)

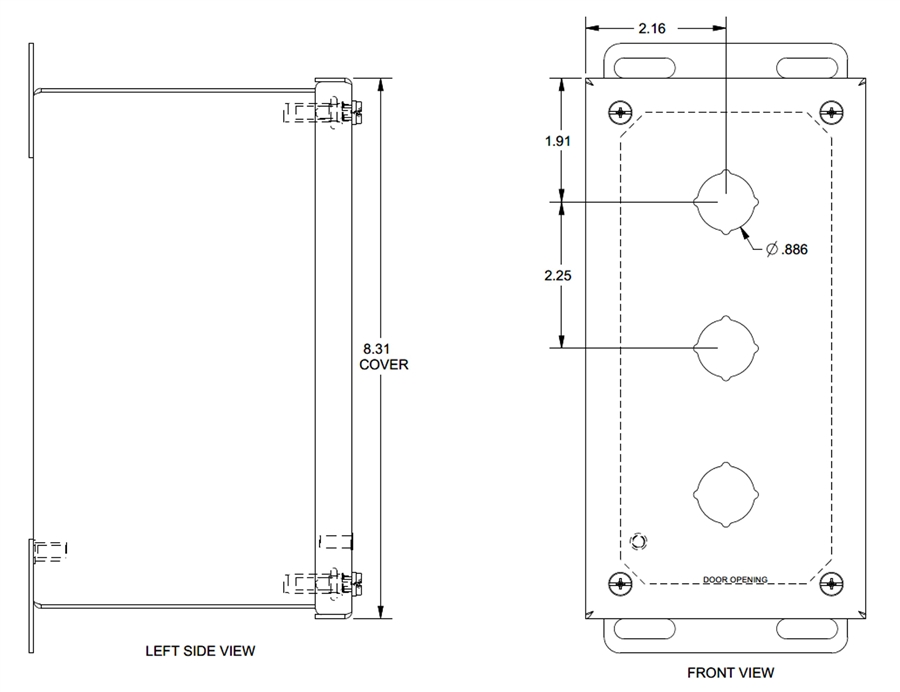

8" H x 4" W x 4.75" D (203.2mm x 101.6mm x 120.65mm)
Seams are continuously welded
Cover screws thread into sealed wells
Works with any brand of oil-tight push buttons, switches, or pilot lights
4 way standard push button entrance
Gasket is oil & water resistant
Welded mounting plates located on the back at the top and bottom
Powder coating on both the inside and outside
IS2 industry standards - NEMA Type 4, 12 and Type 13, UL Listed Type 4 and 12, CSA Type 4 and 12, IEC 60529, IP 66
