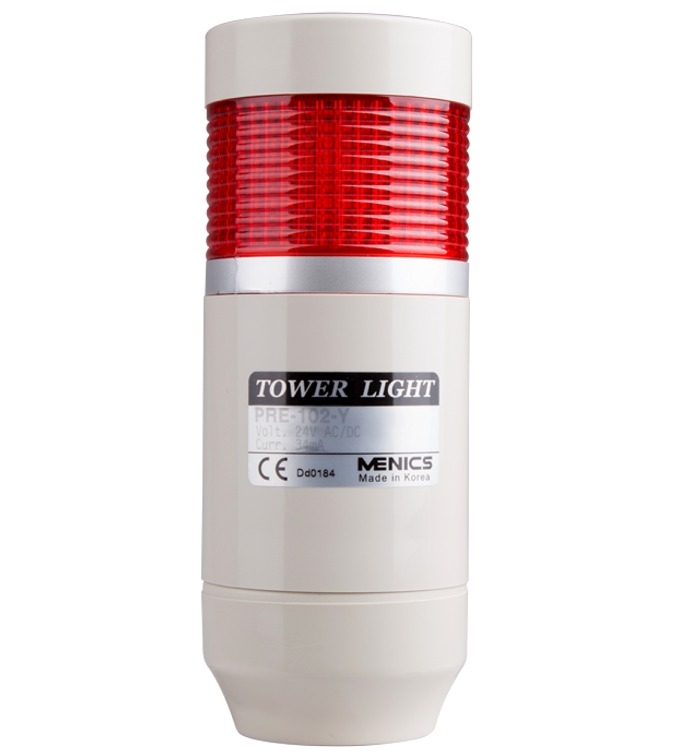

The Menics PREF-101-R 1 stack LED tower signal light has a 56mm diameter and is rated for 12V AC/DC. It has a red lens with a flashing light and is prewired with 25" lead. The prism cut PC plastic lenses offer consistent light distribution. The tower light itself arrives pre-assembled. Rated IP 56.

Mounting (See mounting accessories below)

Pole Mount: Pole + Base
Wall Mount: Pole + Wall Bracket (MAP-DS40), Pole + 70 mm Base + Wall Bracket (MAP-DS30 or MAM-DS28), or Threaded Pole + Wall Bracket (MAM-DS25)
Surface Mount: 22 mm Pole (MAP-0022) + Base or Threaded 43 mm Pole (MAP-M043). Threaded pole would be inserted into a pre-drilled hole using lock nuts on either side to tighten in place.
See our mounting accessories chart (link below description) to see which poles and bases are compatible
Note: If you are using a 750 mm or 1000 mm pole, you will need a longer lead length. The lead can be modified yourself, or by the factory upon request

Specifications

Operation- Flashing
Power Supply- 12V AC/DC
Mounting/Connection- Pole Mount / Lead Wires (25" Lead Length)
Lens Color- Red
Lens Material- Polycarbonate
Number of LED Tiers- 1 Stack

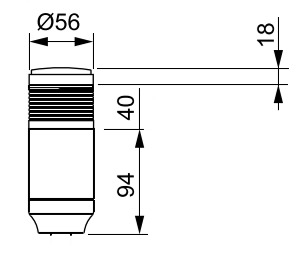

Dimensions (Tower Light Only)- 152 mm Height x 56 mm Diameter (6" x 2.2")
Current- 0.054 Amps
Insulation Resistance- 100MOhm min (500VDC mega)
Flash Rate- 80 times per minute
Vibration- 10~55Hz, amplitude 0.75mm
Ambient Temperature- -15 C to 40 C (5 F to 104 F)
Storage Temperature- -15 C to 40 C (5 F to 104 F)
Recommended Wire Size- 1007 UL / 22 AWG
IP Protection- IP 56 (Protection from harmful dust deposits and powerful water jets from any direction)
Approvals- CE, RoHS

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart

PREF-101-R 12V AC/DC 1 Tier Flashing Red LED Tower Signal Light
