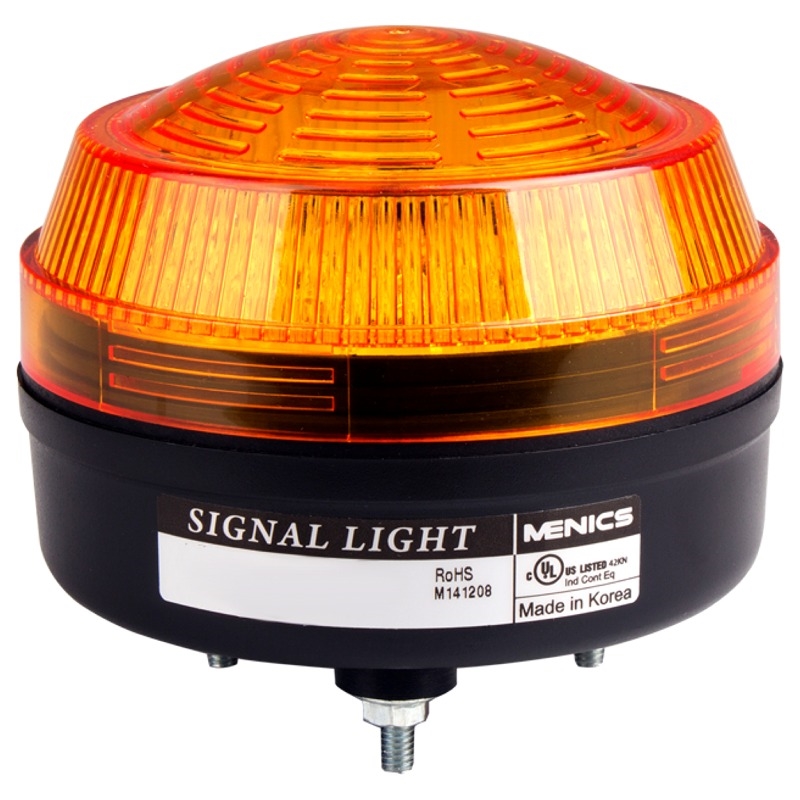

The Menics MS86W-R00-Y 86mm low profile beacon light is 12-24V AC/DC with a yellow lens. Steady & flashing rotating LED light. Has two flash modes which are selectable by DIP switch. Suitable for both indoor and outdoor use. This signal light has lower power consumption than the standard size models, for greater energy efficiency. The LED allows for less heat generation, even when in use for longer periods. Useful for industrial machinery due to the special lens that allows for high visibility. Comes with 800mm lead wire. Rated IP 65. Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Specifications

• Mounting- Stud Mount (see mounting accessories below - MAM-DS31 adapter must be used if pole mounting)
• Light Type- LED Steady/Flashing/Rotating
• Power Supply- 12-24V AC/DC
• Lens Color- Yellow
• Lens Material- Polycarbonate Resin
• Housing Material- Heat Resistant ABS Plastic Resin

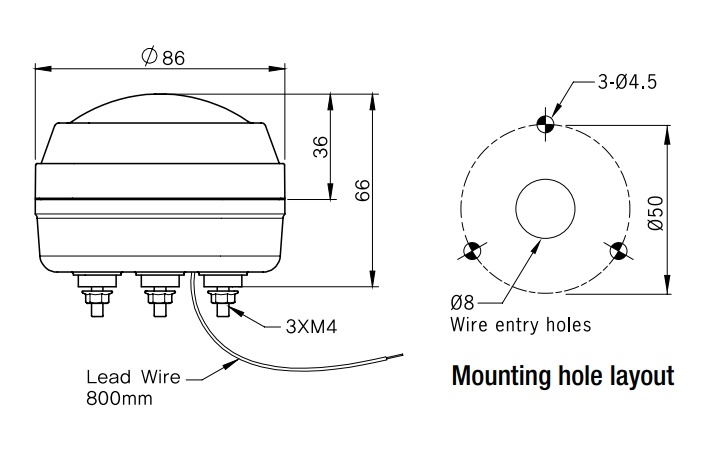

• Dimensions- 66 mm Height x 86 mm Diameter (2.6" x 3.4")
• Current Consumption- 0.5 Amps
• Brightness- 48 Lumens, 3820 mcd (12V), 63 Lumens, 5010 mcd (24V)
• Flash Rate- 80 times per minute or 240 times per minute
• Rotation Rate- 130 rotations per minute (clockwise)
• Buzzer- None
• Vibration- Operating extremes: 0.75mm @ 10-55Hz
• Insulation Resistance- 100 MOhm min. (500VDC mega)
• Ambient Temperature- -15 C to 40 C (-5 F to 104 F)
• Storage Temperature- -20 C to 70 C (-4 F to 158 F)
• Ambient Humidity- 45-85% Relative Humidity
• Recommended Wire Size- UL1007 / 22 AWG
• IP Protection- IP 65 (Total protection from dust and water jets in any direction)
• Approvals- RoHS, UL

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart

86mm 12-24V Yellow LED Low Profile Signal Light MS86W-R00-Y
