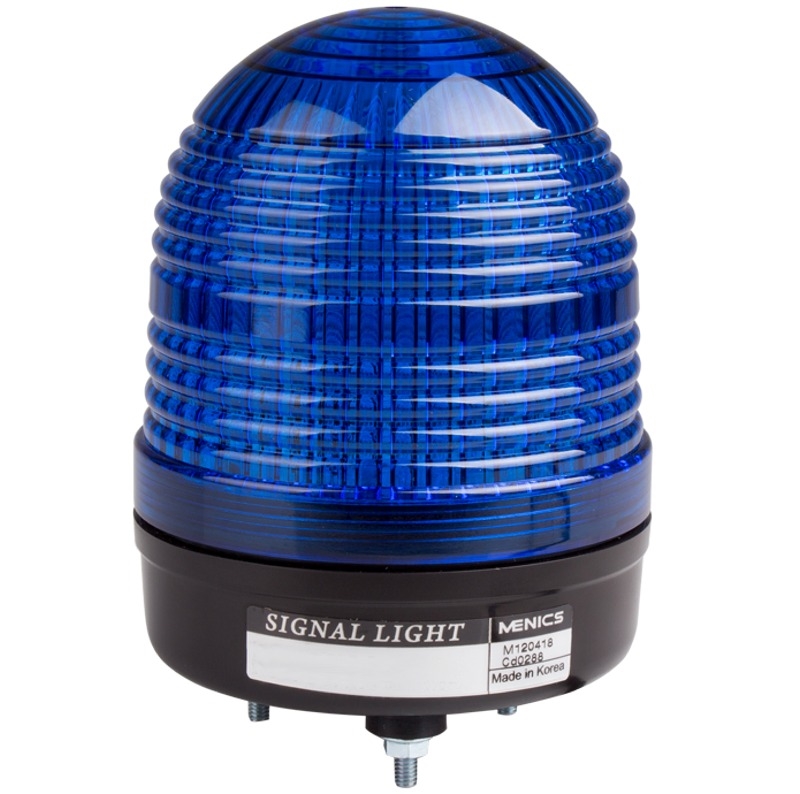

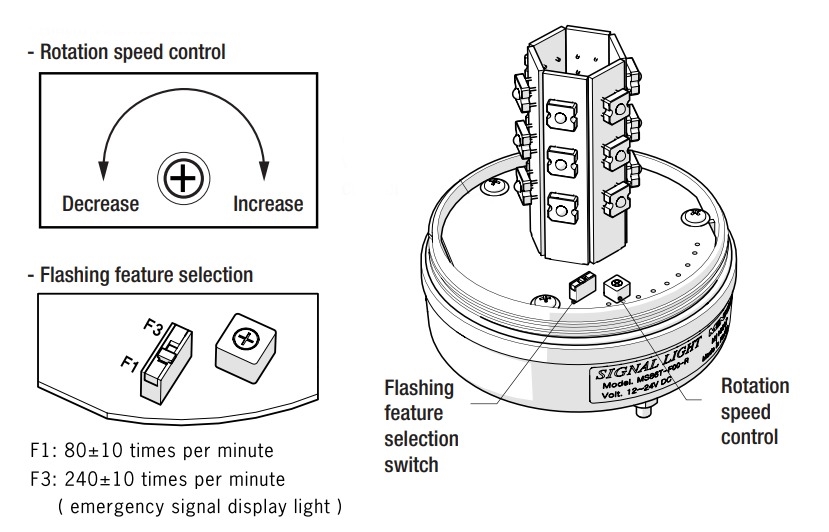

The Menics MS86T-R00-B 86mm beacon light is 12-24V AC/DC with a blue lens and a steady & flashing high intensity rotating LED light. It has a prism cut lens with a wide light distribution that can be seen from a distance. Features 2 flashing modes, chosen by inside selector switch. Rotation speed is adjustable. The LED allows the light to be used for long periods without generating excess heat. Rated IP 65.
Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.
Specifications
- Mounting- Stud Mount (If pole mounting, MAM-DS31 adapter must be used. Poles and adapters sold separately - see mounting accessories below)
- Light Type- High Intensity LED Steady/Flashing/Rotating

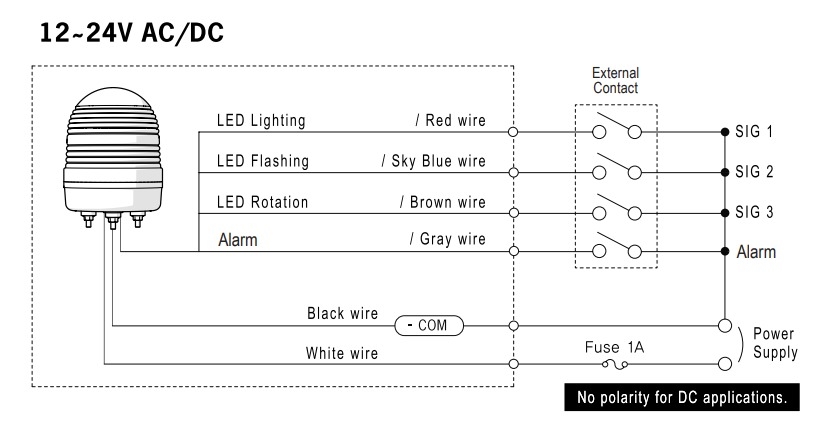

- Power Supply- 12-24V AC/DC
- Lens Color- Blue
- Lens Material- Polycarbonate Resin

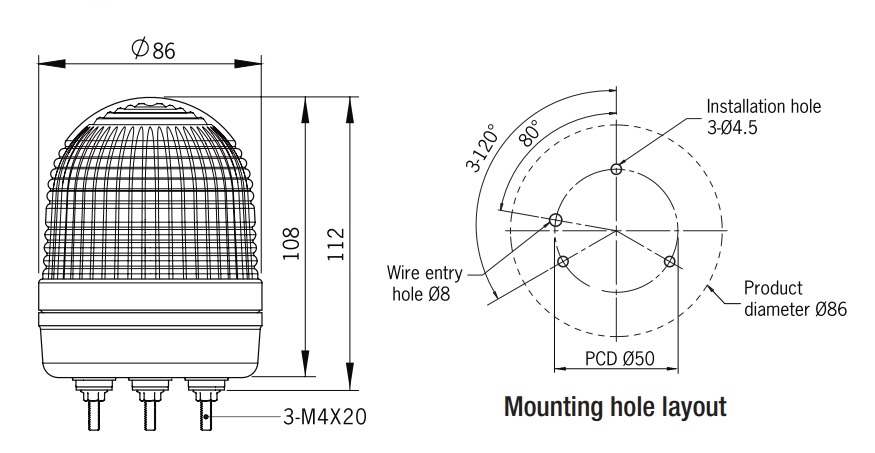

- Dimensions- 112 mm Height x 86 mm Diameter (4.4" x 3.4")
- Current Consumption- 0.22 - 0.37 Amps
- Brightness- 7 Lumens, 560 mcd (12V), 8 Lumens, 640 mcd (24V)
- Flash Rate- 80 times per minute or 240 times per minute
- Rotation Rate- 60 to 300 rotations per minute (clockwise)
- Buzzer- None (see below for version with buzzer alarm)
- Vibration- 0.75mm @ 10-55Hz
- Insulation Resistance- 100 MOhm min. (500VDC mega)
- Ambient Temperature- -20 C to 40 C (-4 F to 104 F)
- Storage Temperature- -20 C to 70 C (-4 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- Recommended Wire Size- UL1007 / 22 AWG
- IP Protection- IP 65 (Total protection from dust and water jets in any direction)
- Approvals- RoHS, UL
Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
86mm 12-24V Blue LED Rotating Signal Light MS86T-R00-B
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Additional Product Information
|
|
|
|
|
|
