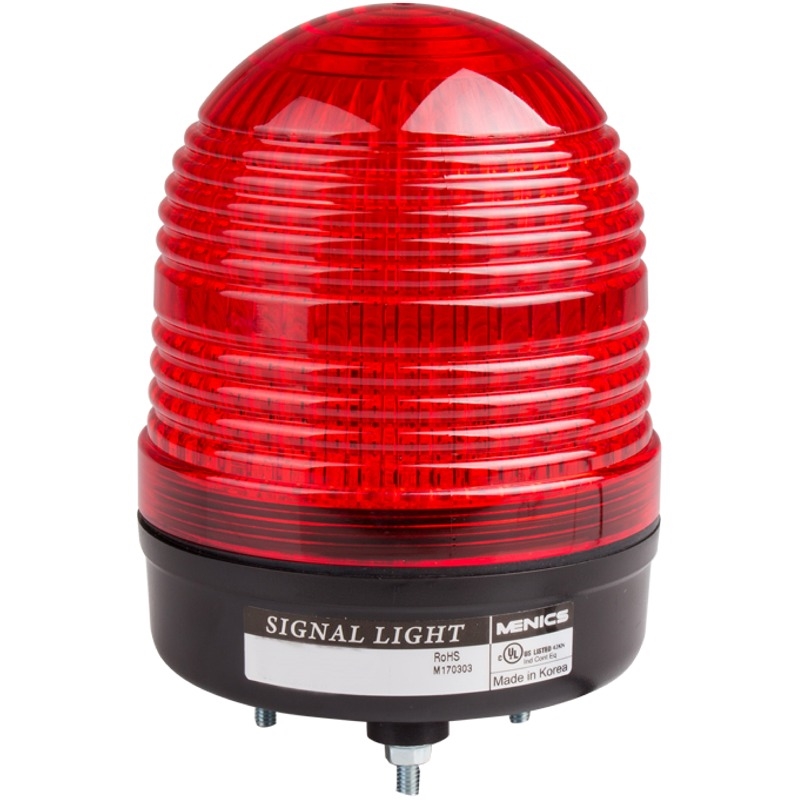

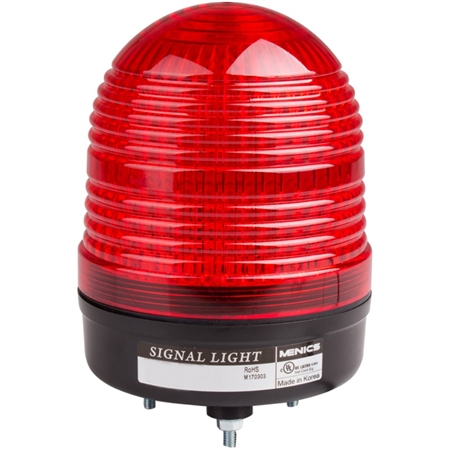

The Menics MS86S-S00-R 86mm beacon light is 12-24V AC/DC with a red lens. Strobe Xenon light with a flash rate of 60 times per minute. It has a prism cut lens with a wide light distribution. The Xenon bulb is a PCB module style that can be seen from a distance and is replaceable. Xenon bulbs are able to produce a light as bright as natural daylight, so they are easily noticeable in darker environments. Rated IP 65.
Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.
Specifications
- Mounting- Stud Mount (see mounting accessories below - MAM-DS31 adapter must be used if pole mounting)
- Light Type- Xenon Strobe
- Power Supply- 12-24V AC/DC
- Lens Color- Red
- Lens Material- Polycarbonate Resin
- Housing Material- ABS Plastic

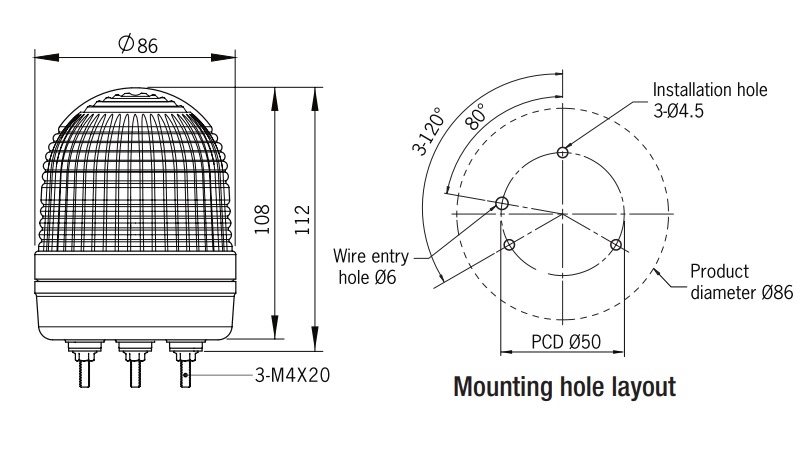

- Dimensions- 112 mm Height x 86 mm Diameter (4.4" x 3.4")
- Current Consumption- 0.08-0.15 Amp
- Flash Rate- 60 times per minute
- Buzzer- None
- Vibration- 0.75mm @ 10-55Hz
- Insulation Resistance- 100 MOhm min. (500VDC mega)
- Ambient Temperature- -20 C to 40 C (-4 F to 104 F)
- Storage Temperature- -20 C to 70 C (-4 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- Wire Lead- UL 2464, 22 AWG x 2C, 300mm
- IP Protection- IP 65 (Total protection from dust and water jets in any direction)
- Approvals- RoHS, UL
Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
