The Menics MS86M-FFF-RBG 86mm 3 in 1 beacon light is 90-240V AC with a clear lens. Steady & flashing red/green/blue LED light. It has a high intensity LED with a 50,000 hr lifespan. Flash rate of the light is selectable. Rated IP 65.
Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.
Specifications
- Mounting- Stud Mount (see mounting accessories below - MAM-DS31 adapter must be used if pole mounting)
- Light Type- LED Steady/Flashing
- Power Supply- 90-240V AC
- Lens Color- Clear
- LED Colors- Red/Green/Blue
- Lens Material- Polycarbonate Resin

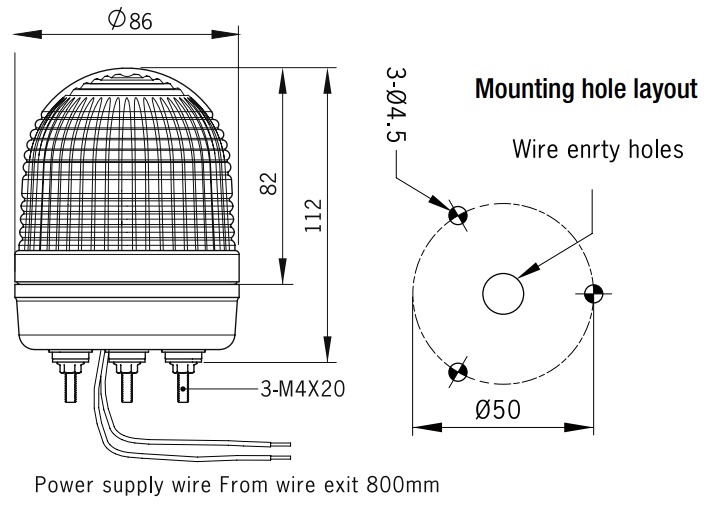

- Dimensions- 112 mm Height x 86 mm Diameter (4.4" x 3.4")
- Current Consumption- 0.03 - 0.08 Amps
- Flash Rate- 80 times per minute or 240 times per minute
- Buzzer- None (see below for version with buzzer alarm)
- Vibration- 15-55Hz, xyz/60min (70m/s2, 7G)
- Insulation Resistance- 100 MOhm min. (500VDC mega)
- Ambient Temperature- -20 C to 40 C (-4 F to 104 F)
- Storage Temperature- -40 C to 70 C (-40 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- Recommended Wire Size- UL1007 / 22 AWG
- IP Protection- IP 65 (Total protection from dust and water jets in any direction)
- Approvals- RoHS, UL Listed
Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
|
|
|
 |
|
 |
