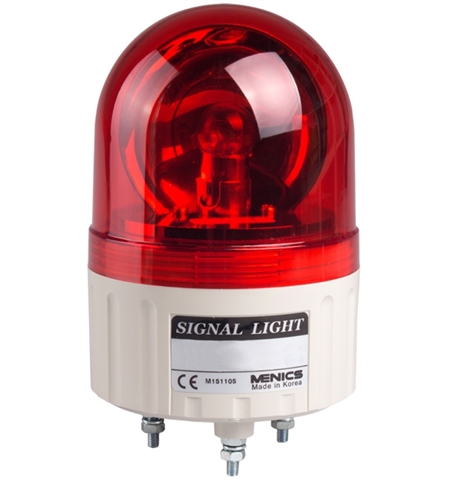

Menics ASGB-01-R 86mm Beacon Light, 12V, Red, Rotating w/ Alarm

Menics 86mm Beacon Light, 12V, Red, Rotating w/ Alarm
Menics ASGB-01-R 86mm Beacon Light, 12V, Red, Rotating w/ Buzzer



Alternative Views:


Our Price: $43.06
MFG P/N: ASGB-01-R
MFG: Menics
Weight (lbs): 0.3

Quantity in Stock :6


Availability:
In Stock
Product Code: ASGB-01-R
Qty:

Description


The Menics ASGB-01-R 86 mm signal beacon light is 12V DC with a smooth red lens and an incandescent light. Rotates 130 times per minute with an 80 dB alarm. Stud mounted. Gear rotation delivers long motor life. Has excellent visibility at long distances and at night. Used in a number of applications such as in small machines, construction, and road safety. Can be installed vertically or horizontally when indoors, or vertically when outdoors. Rated IP 42. Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Specifications

  • Mounting- Stud Mounting (see mounting accessories below)
  • Light & Bulb Type- Rotating Incandescent w/ Buzzer
  • Power Supply- 12V DC
  • Lens Color- Red
  • Lens Material- Polycarbonate Resin
  • Buzzer- Yes
  • Current Draw- 0.67 Amps, 8 Watts
  • Rotation Rate- 130 times per minute
  • Volume Level- 80 decibels
  • Dimensions- 143 mm Height x 86 mm Diameter (5.62" x 3.38")
  • Ambient Temperature- -15 C to 40 C (5 F to 104 F)
  • Storage Temperature- -25 C to 70 C (-13 F to 158 F)
  • Ambient Humidity- 45-85% Relative Humidity
  • Recommended Wire Size- UL1007 22 AWG
  • IP Protection- IP 42 (Protected against solid objects over 1.0 mm and falling drops of water, up to 15 degrees from vertical)
  • Approvals- RoHS, CE

Menics Red Rotating Beacon Signal Light with Buzzer ASGB-01-R

Additional Product Information

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
