Macromatic PMD575 DIN-Rail Mount 460-600V Phase Monitor Relay

Macromatic PMD575 Phase Monitor Relay
Macromatic PMD575 DIN-Rail Mount 460-600V Phase Monitor Relay



Alternative Views:


Our Price: $148.25
MFG P/N: PMD575
MFG: Macromatic
Weight (lbs): 0.5


Availability:
Delivery Time: 5-10 Business Days
Product Code: PMD575
Qty:

Description

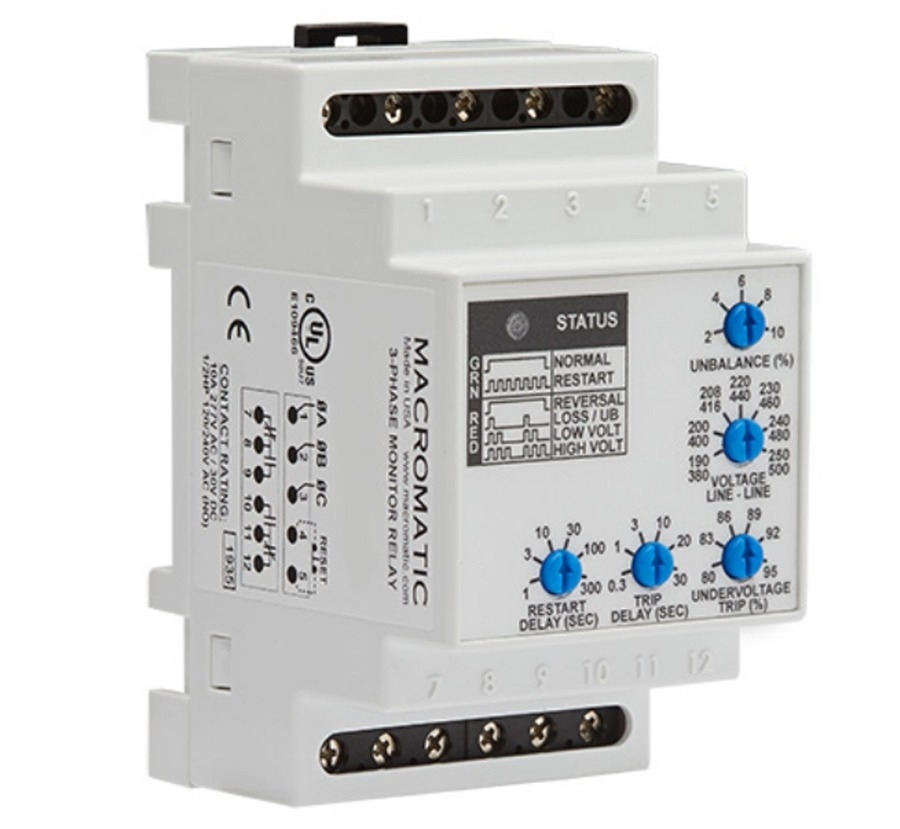

The Macromatic PMD575 is a multi-detection phase monitor relay. This DIN-Rail mount relay has a single adjustable nominal voltage range of 460-600V. It monitors against 5 different types of phase errors and has an output of 10A DPDT. The PMD575 has different settings that can be adjusted for the best phase protection for the job, including the undervoltage trip point, trip delay, restart delay, and phase unbalance trip point. The LED shows the current status and specifies a particular phase error, which is indicated by a diagram on the unit. The PMD120 features a housing which is mountable on a 35mm DIN-Rail. Note: Image is an approximation. Actual part may differ.

Monitors For:

  • Phase Loss
  • Phase Reversal
  • Phase Unbalance
  • Undervoltage
  • Overvoltage

Specifications

  • Relay Function- Multi-Detection 3-Phase Monitoring
  • Nominal Voltage- 460-600V AC
  • Output- 10A DPDT
  • Min. Voltage- 345V AC
  • Max. Voltage- 660V AC
  • Power Consumption- Less than 40VA
  • Phase Loss- Trips on Phase A, B or C loss
  • Phase Reversal- Trips if rotation is something other than A-B-C
  • Phase Unbalance- Adjustable from 2-10% unbalance
    Trips when one of the 3 lines diverges from the average of all 3 by more than the adjusted set point for longer than the adjusted delay
  • Undervoltage- Adjustable from 80-95% of nominal voltage
    Trips when the average of all 3 lines is less than the adjusted set point for longer than the adjusted delay
    Resets at +3% of the undervoltage trip setting
  • Overvoltage- 110% of nominal voltage
    Trips when the average of all 3 lines is greater than the fixed set point for longer than the adjusted delay
    Resets at 107% of the nominal voltage setting
  • Operating Temperature- -28 C to 65 C (-18 F to 149 F)
  • Storage Temperature- -40 C to 85 C (-40 F to 185 F)
  • Output Contacts- 10A @ 277V AC/30V DC, 1/2 HP @ 120/240V AC(N.O.), 1/3 HP @ 120/240V AC (N.C.)
    B300 Pilot Duty, R300 (N.O)
  • Life- Mechanical: 10,000,000 Operations
    Full Load: 100,000 Operations
  • Response Time- Restart: 1 - 300 sec adjustable
    Phase Loss & Reversal: 100ms fixed
    Phase Unbalance Normal: 0.3 - 30 sec adjustable
    Phase Unbalance Severe: 0.3 - 2 sec
    Undervoltage & Overvoltage: 0.3 - 30 sec adjustable

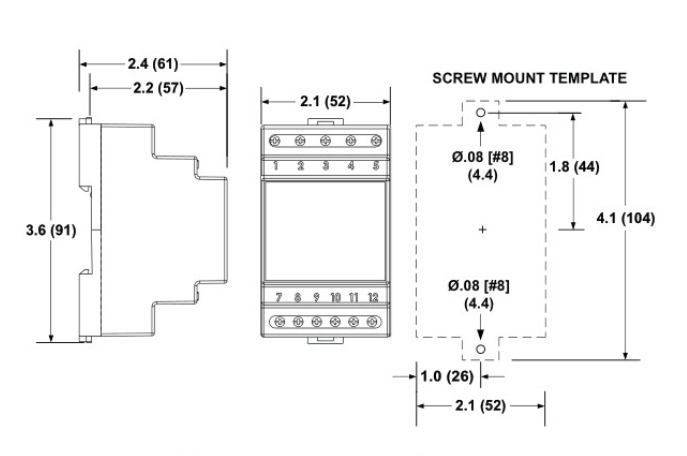

  • Dimensions- 3.6" Height x 2.1" Width x 2.4" Depth
  • Approvals- UL & CUL Listed, CE

Macromatic PMD Series Relay Installation Manual

DIN Rail Mount Three Phase Monitor Relay PMD575

Additional Product Information

The PMD575 features "True RMS voltage measurement". This has analog to digital sensing circuitry that gives more precise monitoring of phases and voltages. A useful feature in the PMD575 is that it can still monitor all the voltages while indicating the fault, even if a phase is lost. When the right voltage is introduced and it has the proper phase sequence, the relay becomes energized after the Restart Delay. When an error is detected, the relay is de-energized after a delay, and will re-energize automatically once the error is fixed, unless the manual reset has been established.
