Macromatic PCPU 190-500V Phase Reversal Monitor Relay

Macromatic PCPU
Macromatic PCPU 190-500V Phase Reversal Monitor Relay



Alternative Views:


Our Price: $61.66
MFG P/N: PCPU
MFG: Macromatic
Weight (lbs): 0.3


Availability:
Delivery Time: 5-10 Business Days
Product Code: PCPU
Qty:

Description


The Macromatic PCPU is a three phase monitor relay that checks for phase reversal. This 8 pin plug in relay has a nominal voltage of 190-500V AC, with an output of 10A SPDT. The LED indicator on top of the unit stays green if everything is functioning correctly or turns red if a phase reversal is detected. The diagram on top of the unit describes how the LED shows the current status. The PCPU uses an 8 pin 70169-D octal socket.

Specifications

  • Relay Function- Three Phase - Phase Reversal
  • Line-Line Voltage- 190-500V AC
  • Minimum Voltage- 156 V AC
  • Maximum Voltage- 550 V AC
  • Power Consumption- < 40VA
  • Output- 10A SPDT
  • Phase Reversal- Trips if rotation is something other than A-B-C
  • Operating Temperature- -28 C to 65 C (-18 F to 149 F)
  • Storage Temperature- -40 C to 85 C (-40 F to 185 F)
  • Output Contacts- 10A @ 277V AC / 7A @ 30V DC; 1 HP @ 250V AC, 1/2HP @ 125V AC, C300 Pilot Duty
  • Life- Mechanical: 10,000,000 Operations, Full Load: 100,000 Operations
  • Response Time- Power Up/Restart: 1 Sec fixed
    Phase Reversal: 100ms fixed

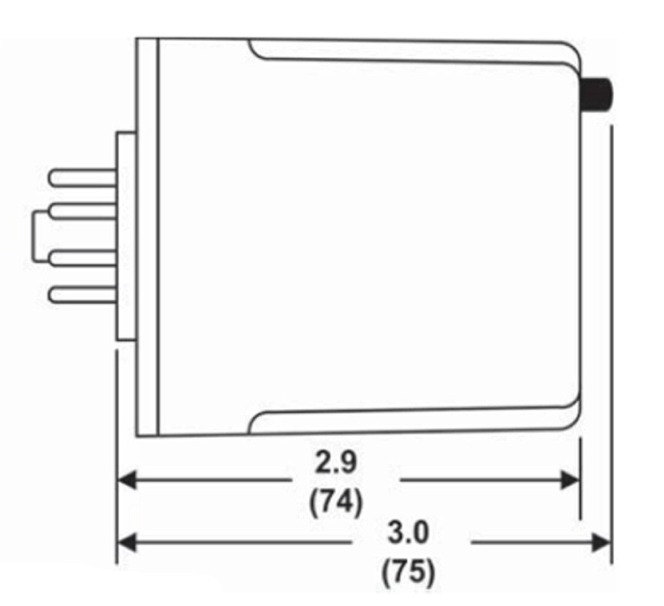

  • Dimensions- 2.4" H x 1.7" W x 3" D
  • Approvals- UL and CUL Recognized, CE, C-UL-US Listed (with Socket)

Macromatic PCP Series Relay Installation Manual

Macromatic Universal Voltage Phase Monitor Relay PCPU

Additional Product Information

The wide voltage range of the PCPU allows it to be put to use in a greater number of applications. Please note if the system voltage is above 300V, this relay needs to be used with a 600V rated socket. This unit becomes energized when the correct voltage is introduced and phase rotation is in the right order. If a phase reversal occurs, the electrical relay will de-energize, or be kept from energizing if the error occurs on start-up. The relay will energize on its own once the error is fixed, without requiring a manual reset. The phase sequence needs to be A-B-C for the unit to stay energized, it will not accept a C-B-A rotation. The PCPU is most useful in areas where motor direction is especially important or sequence detection is deemed necessary due to code.
