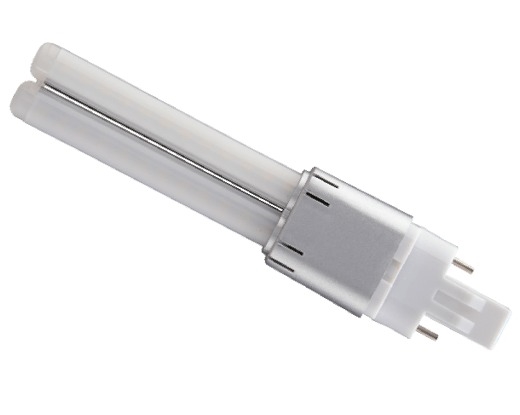

Light Efficient Design LED-7300-35K-G2 5W GX23 PL LED, 550 Lumens, 3500K, 120–277V AC
Efficient 5W GX23 2-pin PL LED replacement for qualifying lamps up to 9W, with magnetic-ballast or direct-line operation and a 50,000-hour rated life.
Why Choose the Light Efficient Design LED-7300-35K-G2 PL LED?
The Light Efficient Design LED-7300-35K-G2 is a 5W GX23 PL LED lamp that produces 550 lumens at 3500K. Designed to replace qualifying 2-pin PL lamps up to 9W, it provides 360-degree omnidirectional light and a rated life of 50,000 hours.
Installers can operate this lamp with a compatible magnetic ballast or wire it for direct-line voltage. Its insect- and dust-resistant housing, damp-location suitability, and approved base-up, base-down, or horizontal mounting positions support flexible use in compatible semi-enclosed recessed fixtures.
⚡ 5W Replaces Up to 9W
Cuts rated lamp wattage while maintaining practical output for PL fixtures
💡 550 Lumens at 3500K
Provides a soft neutral-white appearance for comfortable everyday illumination
🔌 Two Installation Methods
Works with compatible magnetic ballasts or direct 120–277V AC line voltage
🛡️ Protected Housing
Insect- and dust-resistant construction supports cleaner fixture interiors
⚠️ Confirm the Ballast, Base, and Wiring Method
This lamp is non-dimmable and requires a
GX23 2 Pin base. Before ordering, confirm the fixture has sufficient room for its 6.1" Length x 1.4" Width x 1.4" Height dimensions and determine whether the installation will use a compatible magnetic ballast or direct-line voltage.
For direct-line operation, follow the installation instructions when removing the ballast from the operating circuit and connecting the socket to the specified 120-277VAC supply.
🏢 Practical for High-Use Interior Fixtures
The LED-7300 series fits interior fluorescent fixtures where long operating hours make repeated relamping inconvenient. In a hotel hallway or hospital corridor, this lamp can replace qualifying 2-pin PL lamps while preserving broad light distribution; office interiors can use its 3500K output to provide a soft neutral-white appearance for comfortable everyday illumination.
Key Features & Benefits
- Compatible with magnetic ballasts or direct 120-277VAC line voltage
- Approved for base-up, base-down, or horizontal mounting
- Suitable for damp locations and compatible semi-enclosed recessed fixtures
- Insect- and dust-resistant housing
- 360 Omni Directional light distribution
- 50,000-hour rated life
- UL & cUL Listed
- 5-year manufacturer's limited warranty
Technical Specifications
|
Model Number
|
LED-7300-35K-G2
|
|
Brand
|
Light Efficient Design
|
|
Bulb Type
|
GX23 PL LED
|
|
Base Type
|
GX23 2 Pin
|
|
Dimensions
|
6.1" Length x 1.4" Width x 1.4" Height
|
|
Light Color
|
Warm White
|
|
Light Output
|
550 Lumens
|
|
Input Voltage
|
120-277VAC
|
|
Power Consumption
|
5 Watts
|
|
Rated Life
|
50,000 hrs
|
|
Lamp Replacement
|
Up to 9W 2 Pin PL lamps
|
|
Beam Pattern
|
360 Omni Directional
|
|
Dimmable
|
No
|
|
Lumens per Watt
|
110
|
|
Color Rendering Index
|
84.9
|
|
Color Temperature
|
3500K
|
|
Mounting Positions
|
Base Up, Base Down, or Horizontal
|
|
Location Rating
|
Damp Locations; Semi-Enclosed Recessed Fixtures
|
|
Operating Temperature
|
-40 F to 122 F (-40 C to 50 C)
|
|
Approvals
|
UL & cUL Listed
|
|
Warranty
|
5 Year Manufacturer's Limited Warranty
|
📋 Basic Installation Overview
1. Confirm Compatibility: Verify the fixture uses a GX23 2-pin socket, provides adequate clearance, and is suitable for the lamp's operating method.
2. Disconnect Power: Shut off and verify power to the fixture before removing the existing lamp or servicing its wiring.
3. Select the Operating Method: Retain only a compatible magnetic ballast, or follow the instructions to configure the socket for direct 120-277VAC line voltage.
4. Install the Lamp: Seat the LED-7300-35K-G2 securely and use an approved base-up, base-down, or horizontal mounting position.
5. Restore and Test: Reassemble the fixture, restore power, and confirm stable operation before returning the fixture to service.
Follow the LED-7300 installation instructions and all applicable electrical codes. Direct-wire modifications should be completed by qualified personnel.
📄 Installation Instructions & Rebate Information
Certain LED lamps may qualify for utility rebates. Check current eligibility here.
✅ Approvals & Warranty
The Light Efficient Design LED-7300-35K-G2 is
UL & cUL Listed and carries a 5-year manufacturer's limited warranty. Its rated operating temperature range is -40 F to 122 F (-40 C to 50 C).
|
|
|
