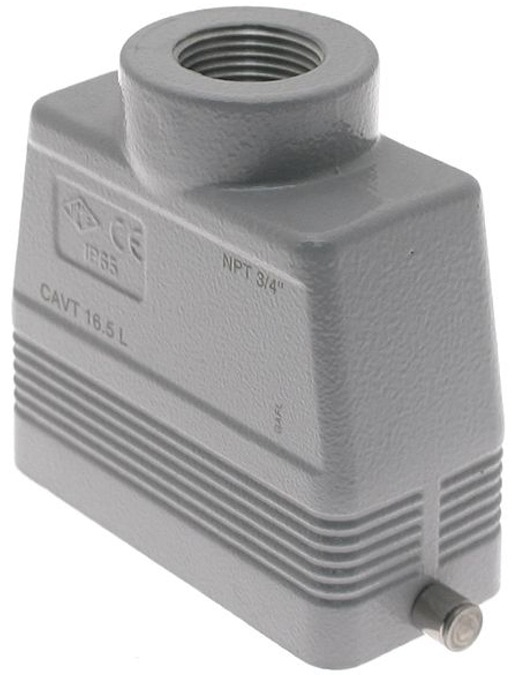

The ILME CAVT-16.5L C-Type standard metallic high construction hood is size 77.27 and features 2 pegs with a 3/4" NPT cable entry. The body is epoxy coated die cast aluminum with cable entry through the top. Insert center distance: 77.5 x 27mm. Rated IP 66. The CAVT-16.5L is durable and has a life expectancy over 500 cycles.

Specifications

Body- Epoxy Coated Die Cast Aluminum
ILME Series- CA
Insert Dimension- 77.27
Enclosure Dimension- 77.27
Housing Type- Metallic, Standard
Enclosure Type- Hoods for 1 Lever
Mounting Style- Cable
Hood Entry- Top

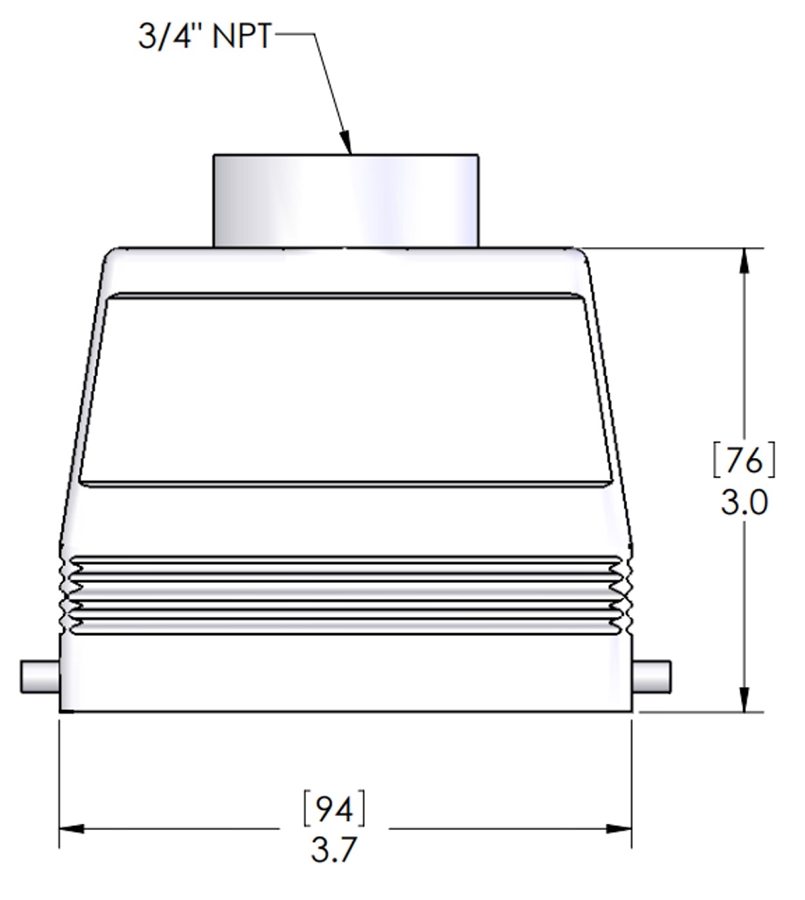

Hood Thread- 3/4" NPT
Pegs- 2 Pegs
Temperature Range- -40 C to 125 C (-40 F to 257 F)
Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
Insert Center Distance- 77.5 x 27 mm (3.05" x 1.06")
Approvals- UL, CUL

Compatible Inserts

Series	Part Number
CD	CDM-40, CDF-40
CDD	CDDF-72, CDDM-72
CQE	CQEF-32, CQEM-32
CSH, CDSH	CSHF-16, CSHM-16 CDSHF-27, CDSHM-27
CCE	CCEF-16, CCEM-16
CNE	CNEF-16T, CNEM-16T, CNEF-16TX, CNEM-16TX CSEM-16, CSEF-16
CSS	CSSF-16, CSSM-16
CP	CPF-06, CPM-06
CX	CXF-6/36, CXM-6/36 CXF-12/2, CXM-12/2 CXF-4/0, CXM-4/0, CXF-4/2, CXM-4/2
