ILME CSH Series Insert, Male, Size 44.27, 6 Pin, 16A


CSHM-06
ILME CSHM-06 CSH Series Insert, Male, Size 44.27, 6 Pin, 16A

Alternative Views:


Price: $10.40
MFG P/N: CSHM-06
MFG: ILME
Weight (lbs): 0.1

Quantity in Stock :1336


Availability:
In Stock
Product Code: CSHM-06
Qty:


Description


The ILME CSHM-06 CSH series standard male insert fits size 44.27 enclosures and is 6 pin + ground with a voltage rating of 600V and a rated current of 16A. The housing is thermoplastic with silver plated contacts. The thermoplastic housing is self-extinguishing and is rated UL 94 V0. Rated IP 20. Termination: spring. The CSHM-06 is resistant to vibration, easier to install and more cost effective due to the spring termination.

Specifications

  • Housing- Thermoplastic
  • Contacts- Silver Plated
  • Gender- Male
  • Pin Count- 6 + Ground
  • Rated Current- 16 Amps
  • Rated Voltage- 600 V
  • ILME Series- CSH
  • Housing Type- Standard
  • Operating Temperature- -40 C to 125 C (-40 F to 257 F)

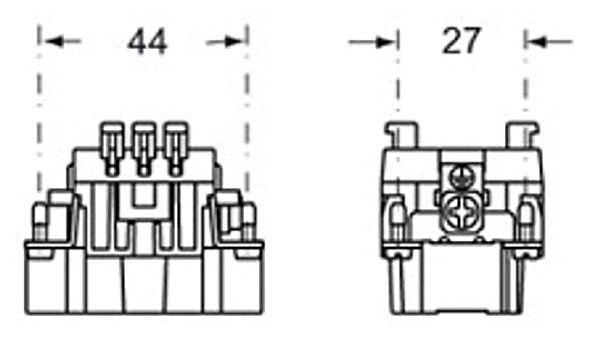

  • Insert Dimension- 44.27
  • Enclosure Dimension- 44.27
  • Termination- Spring
  • Upper AWG- 14
  • Lower AWG- 26
  • Insulation Resistance- >= 10GOhm
  • Mechanical Life- >= 500 Cycles
  • Contact Resistance- <= 3mOhm
  • Ingress Protection- IP 20 (Protection from objects 12.5mm (0.5") in diameter or larger)
  • Approvals- UL, CSA, CCC, GOST

Compatible Enclosures

Series Part Number
CH CHI-06L, CHI-06LC, CHI-06LCS, CHI-06LS, CHI-06YC
CH, CA, MH CHP-06L, CHP-06LS, CHP-06L2, CHP-06LS2, CAP-06LS
CAP-06L, CAP-06L2, CAP-06L229, CAP-06L29, CAP-06LS2, CAP-06LS29, CAP-06LS229
MHP-06L20, CHC-06LG, CHC-06LC
CH, CA, MH, MA CHO-06L13, CHO-06L16, CHV-06L13, CHV-06L16, CHV-06LG, CHV-06LX16
CAO-06L21, CAO-06L29, CAV-06L21, CAV-06L29, CAV-06LG21, CAV-06LG29
MHO-06L20, MHV-06L20, MAV-06L25, MHV-06L25, MAV-06L32, MHO-06L25
MAO-06L32, CAV-06YX29, CHO-06LX16, MHO-06LX20
CH, CA CHIW-06L, CHIW-06LS, CAOW-06L21
CAVW-06L21, CAPW-06LS, CAPW-06L29, CAPW-06L229
CH, CA CHIS-06L, CHCS-06L
TC, TM TCHI-06L, TCHC-06L, TMAV-06L32, THIH-06L
TMAP-06L25, TMAP-06L32, TMAO-06L25, TMAO-06L32
JCVI JCVI-06L
CG CGI-06, CGO-06.21

ILME 44.27 6 Pin Male Insert CSHM-06
