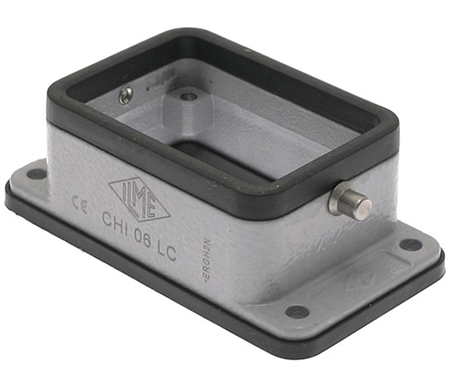

The ILME CHI-06LC C-Type bulkhead mount standard housing is size 44.27 and has 2 pegs. The body is die cast aluminum. Insert center distance: 44 x 27 mm. Rated IP 66 when attached and locked down. The clamping force supplied by the CHI-06LC is constant when coupled with the right hood. It has a life expectancy of at least 500 cycles.
Specifications
- Body- Die Cast Aluminum
- ILME Series- CH
- Housing Type- Standard, Metallic
- Enclosure Dimension- 44.27
- Enclosure Type- 2 Pegs
- Mounting Style- Bulkhead Mount
- Gasket- Yes
- Temperature Range- -40 C to 125 C (-40 F to 257 F)
- Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
- Insert Dimensions- 44 x 27 mm (1.73" x 1.06")
- Approvals- C UR US, CCC, GL
Compatible Inserts
|
Series
|
Part Number
|
|
CDD
|
CDDF-24
CDDM-24
|
|
CQE
|
CQEF-10
CQEM-10
|
|
CSH, CDSH
|
CSHM-06, CSHF-06
CDSHF-09, CDSHM-09
|
|
CCE
|
CCEF-06, CCEM-06
|
|
CNE, CSE
|
CNEF-06T, CNEF-06TX, CNEM-06T
CNEM-06TX, CSEM-06, CSEF-06
|
|
CSS
|
CSSF-06
CSSM-06
|
|
CT, CTSE
|
CTF-06L, CTF-06R, CTM-06L,
CTM-06R
CTSEF-06L, CTSEF-06R, CTSEM-06R
|
ILME Standard Bulkhead Mount Base with 2 Pegs CHI-06LC
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
