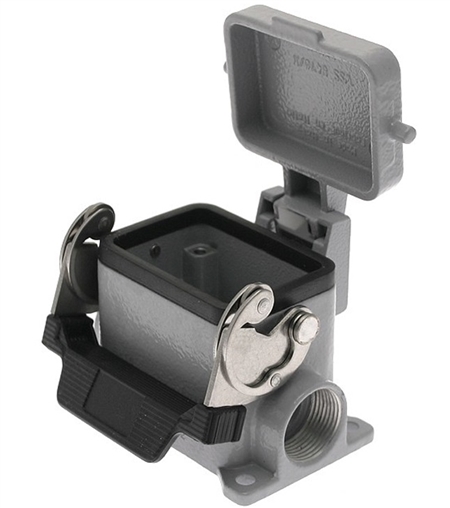

ILME CHP-06LS2 C-Type Surface Mount Housing, Size 44.27, Single Lever & Cover, PG 16

ILME CHP-06LS2
ILME C-Type Surface Mount Housing, Size 44.27, Single Lever & Cover, PG 16 - CHP-06LS2



Alternative Views:


Our Price: $40.37
Note: Ships in 1-2 business days
MFG P/N: CHP-06LS2
MFG: ILME
Weight (lbs): 0.57

Product Code: CHP-06LS2
Qty:


Description


The ILME CHP-06LS2 C-Type surface mount standard housing is size 44.27 and features a single lever and cover with two PG 16 cable entries. The body is epoxy coated die cast aluminum with a polyamide handle and stainless steel lever. Insert center distance: 44 x 27 mm. Rated IP 65 when attached and locked down. The clamping force supplied by the CHP-06LS2 stays constant because of the stainless steel locking system.

Specifications

  • Body- Epoxy Coated Die Cast Aluminum
  • Gasket- Thermoplastic Elastomer
  • Handle- Polyamide
  • Lever- Stainless Steel
  • ILME Series- CH
  • Insert Dimension- 44.27
  • Enclosure Dimension- 44.27
  • Housing Type- Standard, Metallic
  • Enclosure Type- 1 Lever w/ Cover
  • Mounting Style- Surface Mount
  • Hood Entry- Side
  • Hood Thread- PG 16
  • Gasket- Yes
  • Number of Entries- 2
  • Temperature Range- -40 C to 125 C (-40 F to 257 F)
  • Ingress Protection- IP 65 (Total protection from dust and low pressure water jets from any direction)
  • Insert Center Distance- 44 x 27 mm (1.73" x 1.06")
  • Approvals- C UR US, CCC, GL

Compatible Inserts

Series Part Number
CDD CDDF-24
CDDM-24
CQE,CCE CQEF-10
CQEM-10
CCEM-06
CCEF-06
CSH, CDSH CSHM-06, CSHF-06
CDSHF-09, CDSHM-09
CCE CCEF-06, CCEM-06
CNE, CSE CNEF-06T, CNEF-06TX, CNEM-06T
CNEM-06TX, CSEM-06, CSEF-06
CSS CSSF-06
CSSM-06

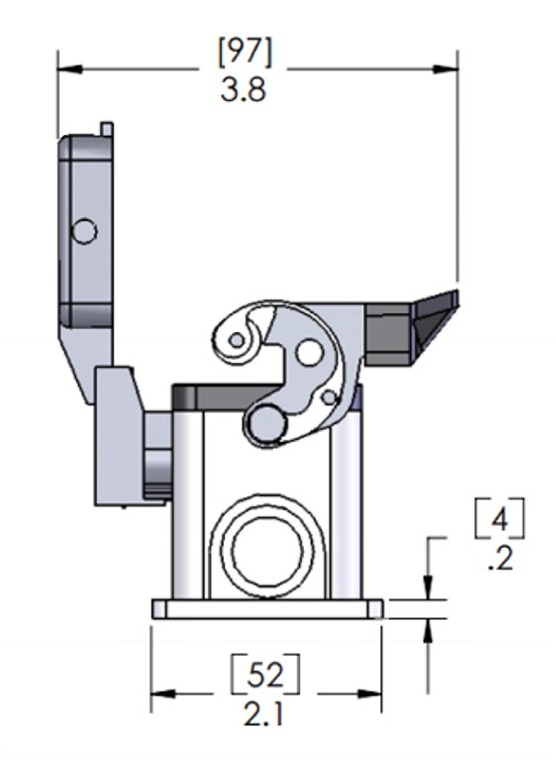

CHP-06LS2 44.27 PG 16 Dual Cable Entry Surface Mount Base
