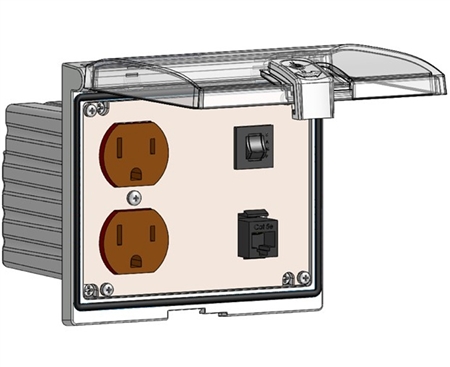

The Mencom LP3-DP-RJ45-R panel interface connector (PIC) features a 120V Duplex Receptacle, a female/female Ethernet RJ45 port, and a 3 Amp resettable fuse in a double size housing. Housing is rated IP 65 and has a sliding lock mechanism that is operated with a flat head screwdriver. Mencom PICs mount to the outside of the control cabinet and allow access to the PLC or PAC without opening the panel door. The low profile housing is 75% lower than a standard PIC, & features a clear cover to view the components inside.
Specifications
- Body- Nickel Plated Zinc
- Front Cover- Polycarbonate
- Latch & Lock- PBT
- Back Cover- Polypropylene
- Gasket- Nitrile/UL70
- Housing- Double Cover Low Profile Housing
- Power Ports- 120V Duplex Receptacle
- RJ / Ethernet- RJ45 Female/Female Ethernet
- Fuse- 3 Amp Resettable
- Screw Size- M3
- Torque- 0.9 N-m (0.675 Lb-Ft)

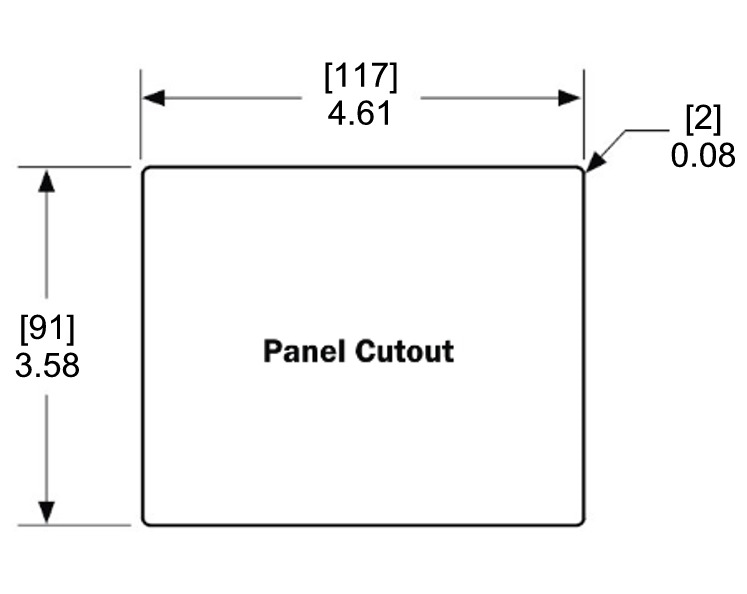

- Panel Thickness- 5mm max.
- UL Rating- UL Type 4, (4X), 12
- IP Rating- IP 65 (Total protection from dust and low pressure water jets from any direction)
|
|
|
 |
|
 |
|
