Mencom Low Profile Panel Interface Connector, Duplex outlet, RJ45, DB9F, 3A Reset, Double Size Housing

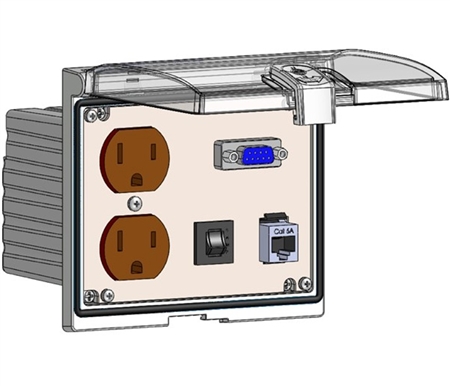

Mencom LP3-DP-DB9F-RJ45S-R Low Profile Programming Interface
Mencom Low Profile Panel Interface Connector, Duplex outlet, DB9F, RJ45, Double Size Housing



Alternative Views:


Our Price: $146.72
MFG P/N: LP3-DP-DB9F-RJ45S-R
MFG: Mencom
Weight (lbs): 1.6


Availability:
Delivery: Up to 7-10 business days
Product Code: LP3-DP-DB9F-RJ45S-R
Qty:


Description


The Mencom LP3-DP-DB9F-RJ45S-R panel interface connector (PIC) features a 120V Duplex Receptacle, a shielded female/female Ethernet RJ45 port, a female ext./female int. 9 Pin D-Sub, and a 3 Amp resettable fuse in a double size housing. Housing is rated IP 65 and features a sliding lock mechanism that can be opened using a flat head screwdriver. Mencom PICs attach to the outside of the control panel and allow the PLC or PAC to be accessed without having to open the control cabinet. The low profile housing is 75% lower than a standard PIC, & has a clear cover to view the components inside.

Specifications

  • Body- Nickel Plated Zinc
  • Front Cover- Polycarbonate
  • Latch & Lock- PBT
  • Back Cover- Polypropylene
  • Gasket- Nitrile/UL70
  • Housing- Double Cover Low Profile Housing
  • Power Ports- 120V Duplex Receptacle
  • RJ / Ethernet- Shielded RJ45 Female/Female Ethernet
  • D-Subs- 9 Pin Female Ext/Female Int
  • Fuse- 3 Amp Resettable
  • Screw Size- M3
  • Torque- 0.9 N-m (0.675 Lb-Ft)

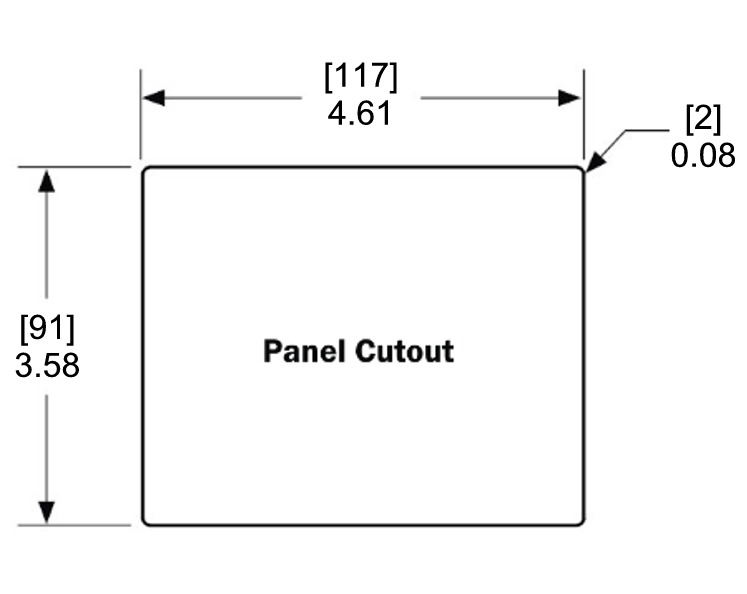

  • Panel Thickness- 5mm max.
  • IP Rating- IP 65

Mencom LP3-DP-DB9F-RJ45S-R Low Profile PIC with 9 Pin D-Sub & Shielded RJ45
