Mencom DCH1-RJ45-32 Panel Interface Connector, China 10A outlet, RJ45, 32 Housing

Mencom DCH1-RJ45-32 Panel Interface Connector
Mencom DCH1-RJ45-32 Panel Interface Connector, China 10A outlet, RJ45, 32 Housing

Alternative Views:
Price: $238.75
Note: Please call or email [email protected] for alternatives
MFG P/N: DCH1-RJ45-32
MFG: Mencom
Weight (lbs): 1.45

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: DCH1-RJ45-32
Qty:


Description

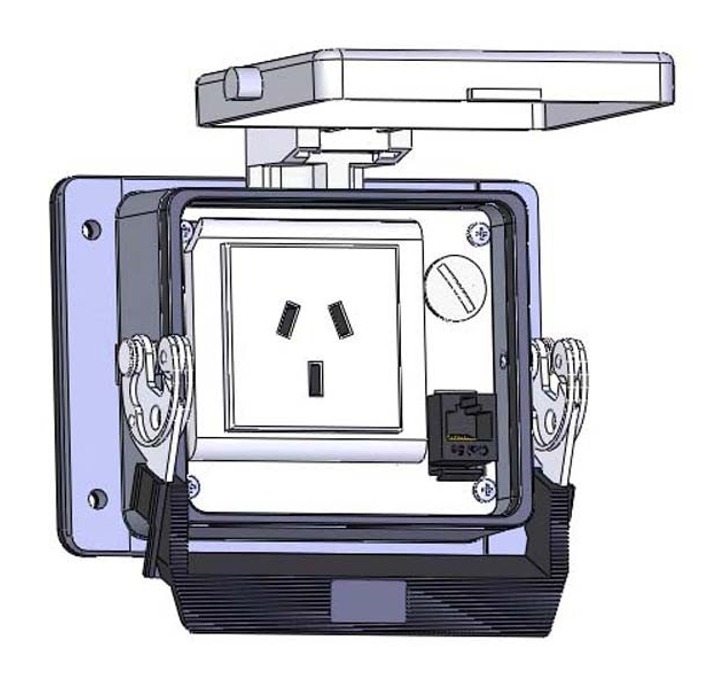

The Mencom DCH1-RJ45-32 Panel Interface Connector (PIC) features a China 10 Amp receptacle and RJ45 port in a size 32 housing. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch. Mencom PICs attach to the exterior of the control cabinet to allow safe access to the PLC or computer without having to open the panel door.

Specifications

  • Body- Epoxy coated die cast aluminum
  • Gasket- Thermoplastic elastomer
  • Handle- Polyamide
  • Levers- Stainless Steel
  • Volts- 250 V
  • Amps- 10 Amps
  • Housing- Size 32 Bulkhead Housing
  • Power Ports- China 10 Amp Receptacle
  • RJ / Ethernet- RJ45
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)

Mencom Panel Interface Connector Part Number Guide

Mencom Panel Interface Connector Guide
