Mencom DP1-RJ45-R-24LS Panel Interface Connector, Simplex outlet, RJ45, 3A reset, 24LS housing

DP1-RJ45-R-24LS
Mencom DP1-RJ45-R-24LS Panel Interface Connector, Simplex outlet, RJ45, 3A reset, 24LS housing

Alternative Views:
Price: $111.70
Note: Please call or email [email protected] for alternatives
MFG P/N: DP1-RJ45-R-24LS
MFG: Mencom
Weight (lbs): 1

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: DP1-RJ45-R-24LS
Qty:


Description

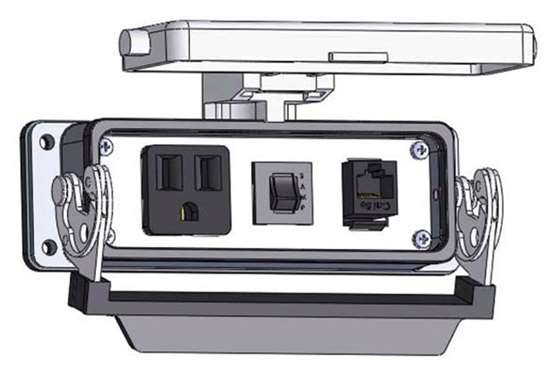

Mencom Panel Interface Connectors (PIC) mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet. The Mencom DP1-RJ45-R-24LS PIC features a 120V Simplex receptacle, female/female ethernet and a 3 amp resettable fuse in a size 24 housing. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.

Specifications

  • Body- Epoxy coated die cast aluminum
  • Gasket- Thermoplastic elastomer
  • Handle- Polyamide
  • Levers- Stainless Steel
  • Volts- 125 V
  • Amps- 3 Amps
  • SCCR- 10kA
  • Housing- Size 24 Bulkhead Housing
  • Power Ports- 120V Simplex Receptacle
  • RJ / Ethernet- Ethernet Female / Female
  • Fuse- 3 Amp resettable

Mencom Panel Interface Connector Part Number Guide

Mencom Panel Interface Connector Guide
