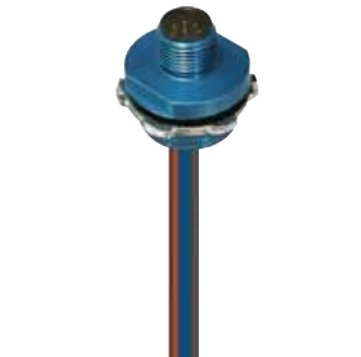

Lumberg Automation RSF 4-1/2-14/1F M12 Receptacle, 4 Pole, Male, 1 Foot, 1/2" NPT

Lumberg Automation RSF 4-1/2-14/1F M12 Receptacle
Lumberg Automation RSF 4-1/2-14/1F M12 Receptacle, 4 Pole, Male, 1/2" NPT

Alternative Views:
Price: $19.60
Note: Please call or email [email protected] for alternatives
MFG P/N: 600000011
MFG: Lumberg Automation
Weight (lbs): 0.04

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: 600000011
Qty:


Description

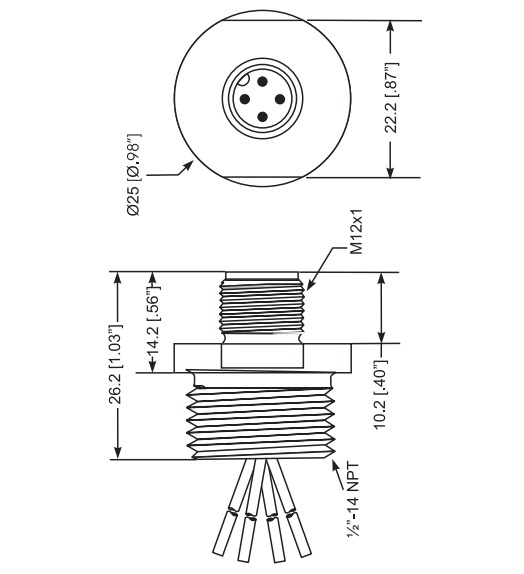

The Lumberg Automation 600000011 RSF 4-1/2-14/1F M12 male receptacle features a 4 pin insert with a rated voltage of 250V, a rated current of 4A and a 1 foot lead length. Protection class IP 67 / NEMA 6P. This receptacle connector is designed for front mounting. It has 22 AWG wire, with 1/2"-14 panel mount thread.

Specifications

  • Type of Contact- Male
  • Number of Pins- 4
  • Rated Voltage- 250 V
  • Rated Current- 4 Amps
  • Mounting Thread- 1/2"-14 NPT
  • Protection Class- IP 67 / NEMA 6P
  • Contact Material- Gold over Nickel Plated Brass
  • Housing Material- Blue Anodized Aluminum
  • Insert Material- Black Nylon
  • Operating Temperature- -25 C (-13 F) / 90 C (194 F)
  • Lead Length- 1 Foot (0.3 Meters)

Lumberg Automation M12 Receptacle Part Number Guide

M12 Molded Cable Cordsets & Connectors Overview
