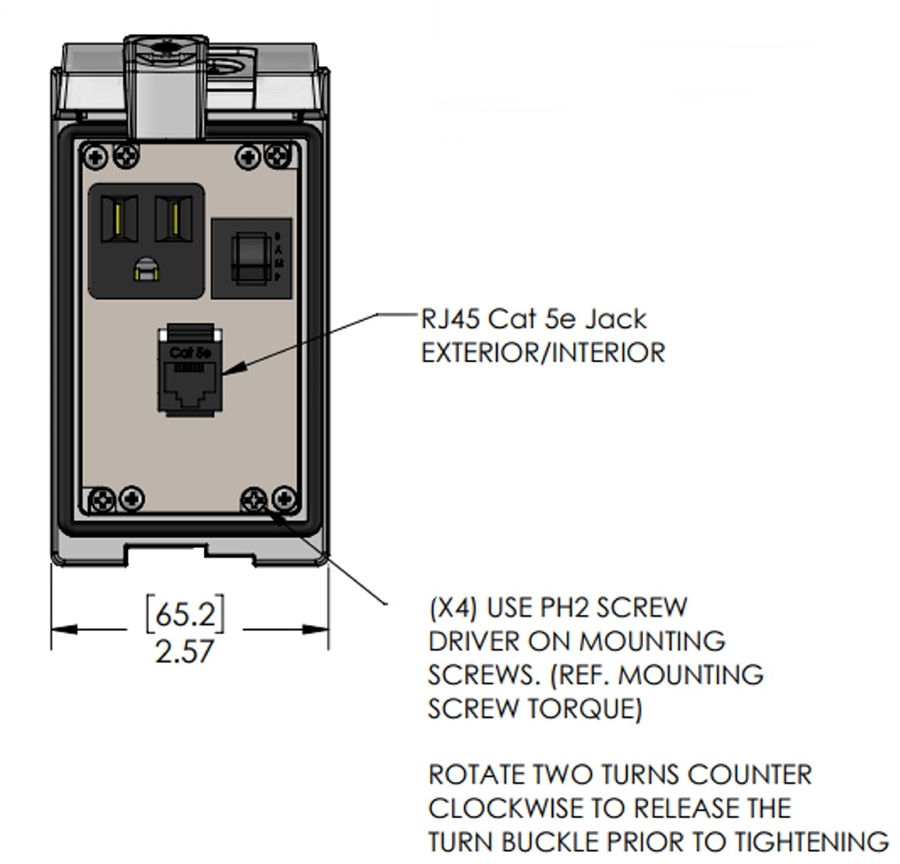

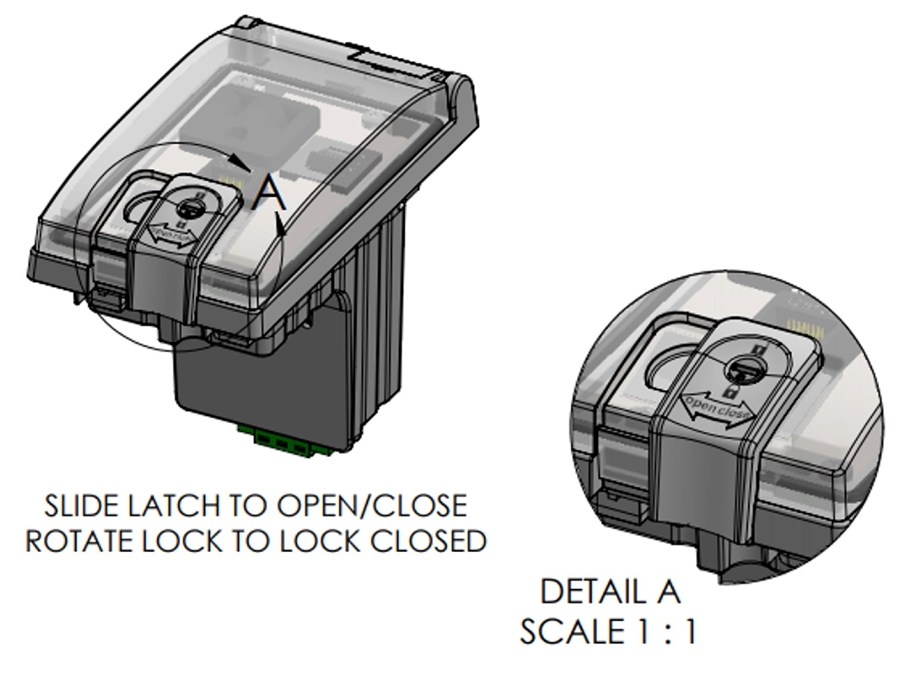

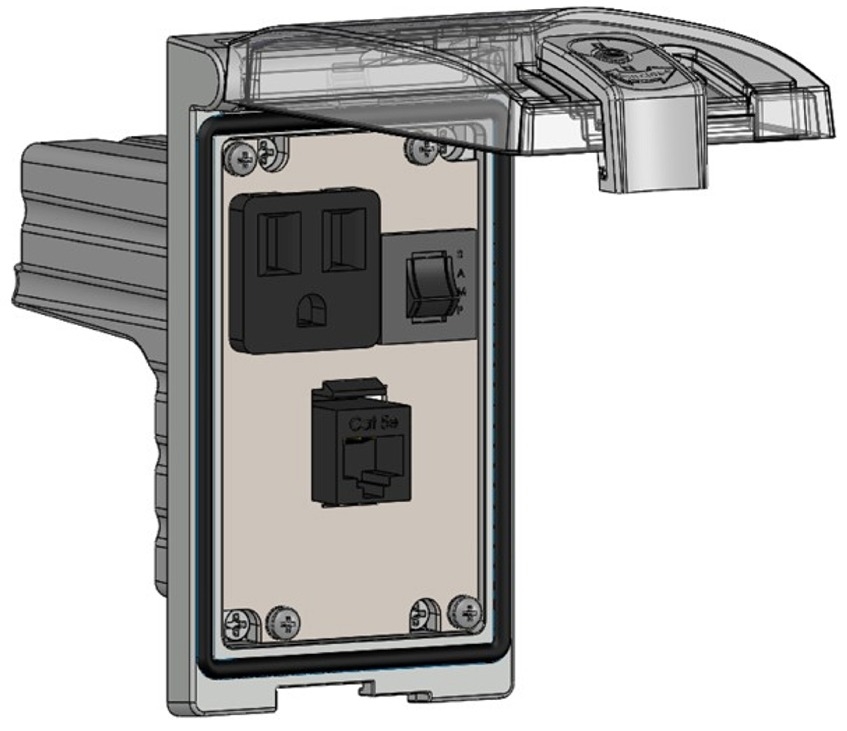

The Mencom LP1-DP1-RJ45-R panel interface connector (PIC) features a 120V simplex receptacle, female/female RJ45 Ethernet port & a 3A resettable fuse in a single cover housing. Housing is rated IP 65 and features a sliding lock mechanism that can be opened using a flat head screwdriver. Mencom PICs mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet. The low profile housing is 75% lower than a standard PIC, & has a clear cover to view the components inside.
Specifications
- Body- Nickel Plated Zinc
- Front Cover- Polycarbonate
- Latch & Lock- PBT
- Back Cover- Polypropylene
- Gasket- Nitrile/UL70
- Volts- 125V
- Amps- 3 Amps
- SCCR- 10kA
- Housing- Single Cover Low Profile Housing
- Dimensions- 2.57" Width x 4.6" Height x 4.11" Depth
- Power Ports- 120V Simplex Receptacle
- RJ / Ethernet- Female/Female RJ45 Ethernet
- Reset- 3A Resettable
- Screw Size- M3
- Torque- 0.9 N-m (0.675 Lb-Ft)

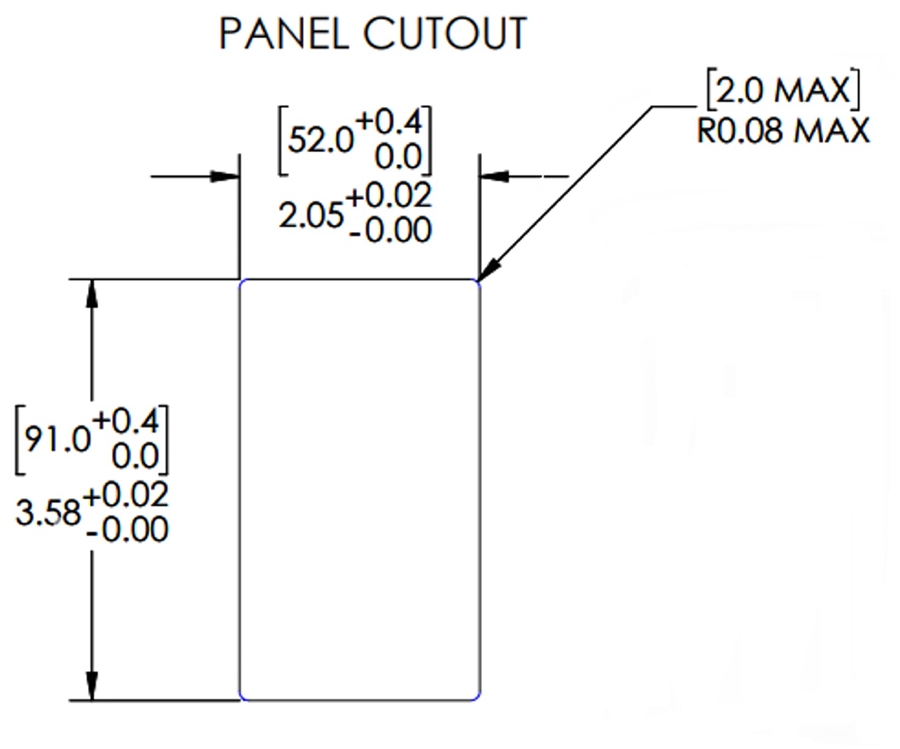

- Panel Thickness- 5mm max.
- UL Rating- UL Type 4, (4X), 12
- IP Rating- IP 65 (Total protection from dust and low pressure water jets from any direction)
|
|
|
 |
|
 |
|
