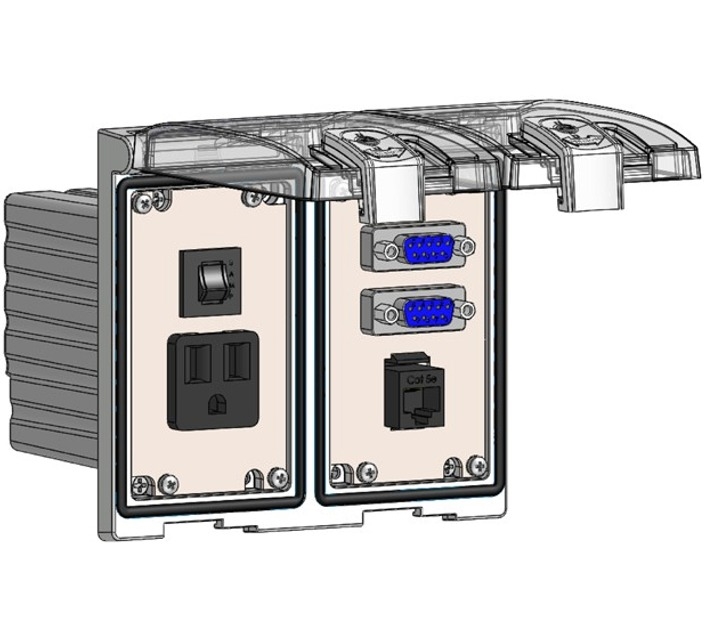

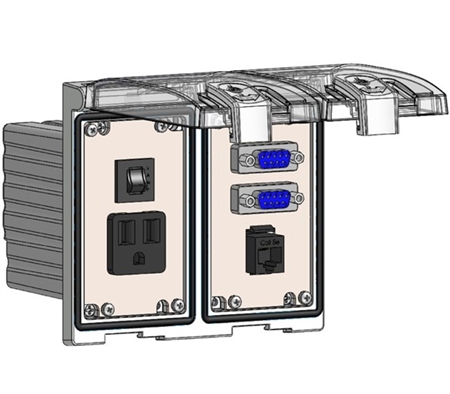

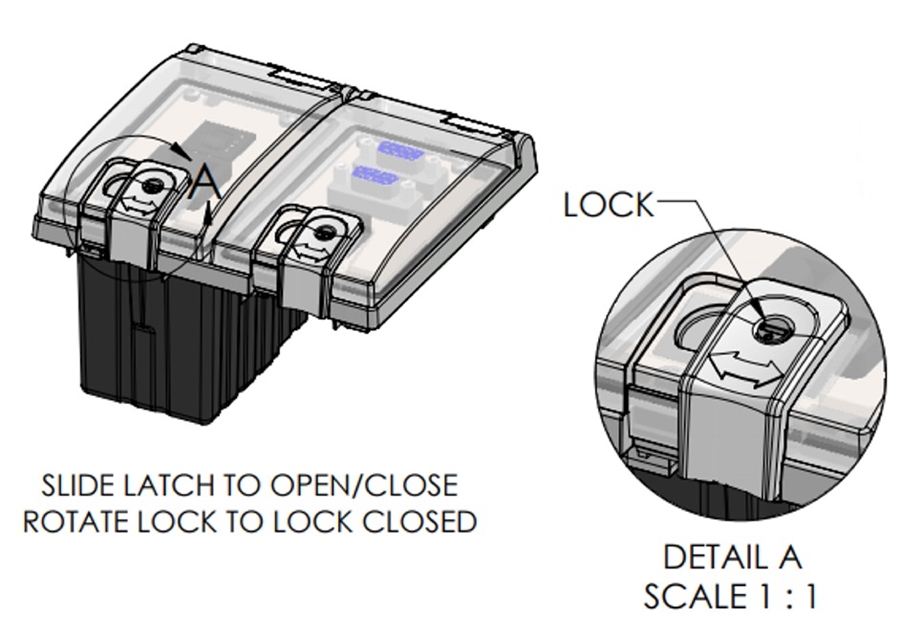

The Mencom LP2-DP1-2DB9-RJ45-R panel interface connector (PIC) features a 120V Simplex Receptacle, two 9 pin D-Subs, a female/female Ethernet RJ45 port, & a 3A resettable fuse in a two cover housing. Housing is rated IP 65 and features sliding lock mechanisms that can be opened using a flat head screwdriver. Mencom PICs attach to the outside of the control panel and allow access to the PLC or PAC without having to open the panel door. The low profile housing is 75% lower than a standard PIC, & has a clear cover to view the components inside.
Specifications
- Body- Nickel Plated Zinc
- Front Cover- Polycarbonate
- Latch & Lock- PBT
- Back Cover- Polypropylene
- Gasket- Nitrile/UL70
- Volts- 125V
- Amps- 3 Amps
- SCCR- 10kA
- Housing- Two Cover Low Profile Housing

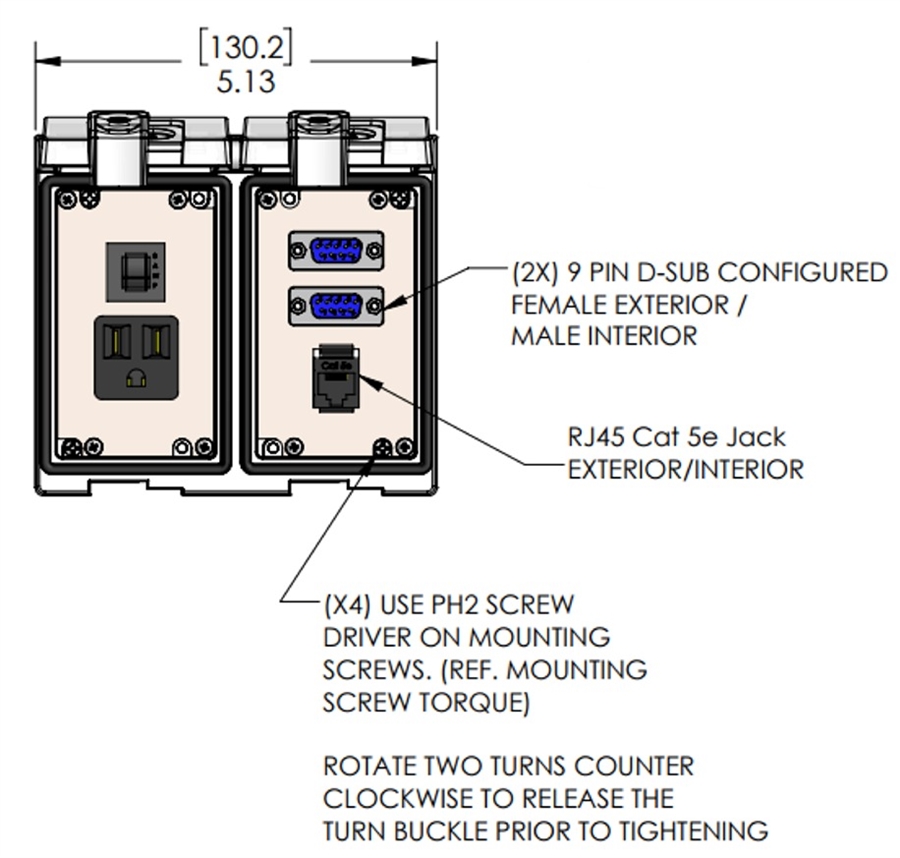

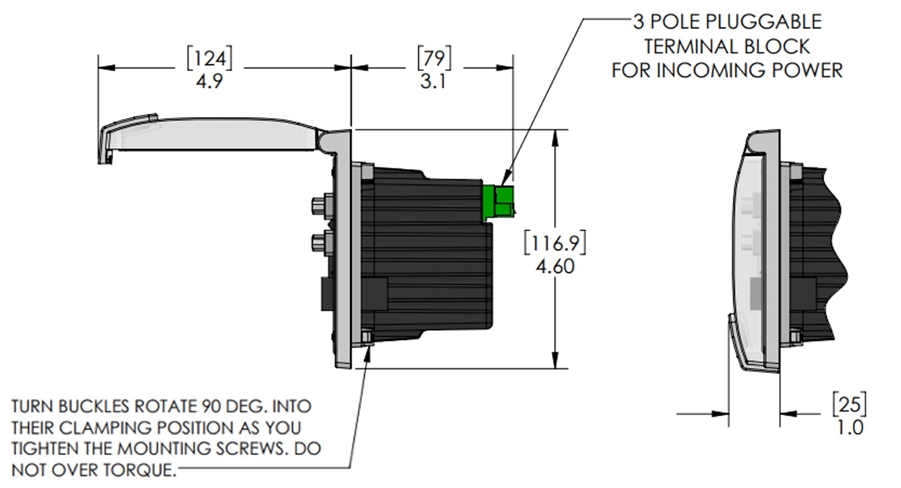

- Dimensions- 5.13" Width x 4.6" Height x 4.1" Depth
- Power Ports- 120V Simplex Receptacle
- D-Subs- (2) 9 Pin Female Ext/Male Int
- RJ / Ethernet- RJ45 Female/Female Ethernet
- Resets- 3A Reset
- Screw Size- M3
- Torque- 0.9 N-m (0.675 Lb-Ft)

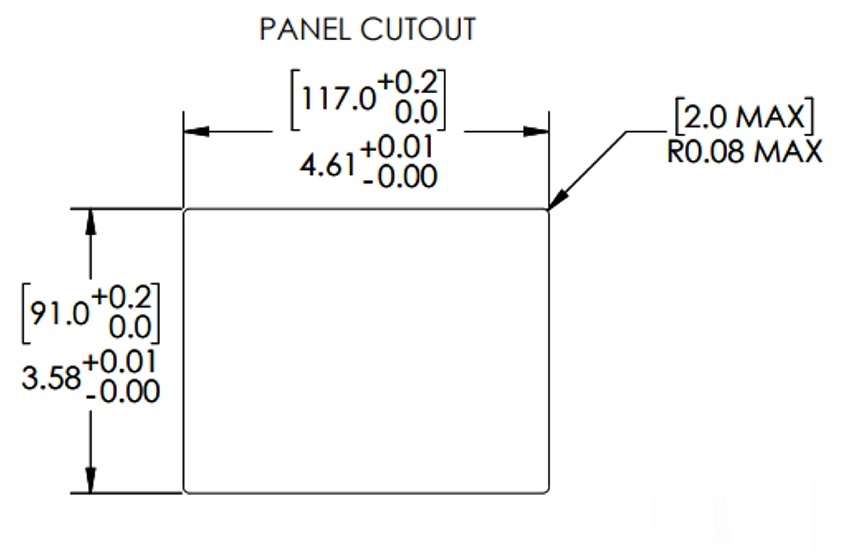

- Panel Thickness- 5mm max.
- UL Rating- UL Type 4, (4X), 12
- IP Rating- IP 65 (Total protection from dust and low pressure water jets from any direction)
|
|
|
 |
|
 |
|
