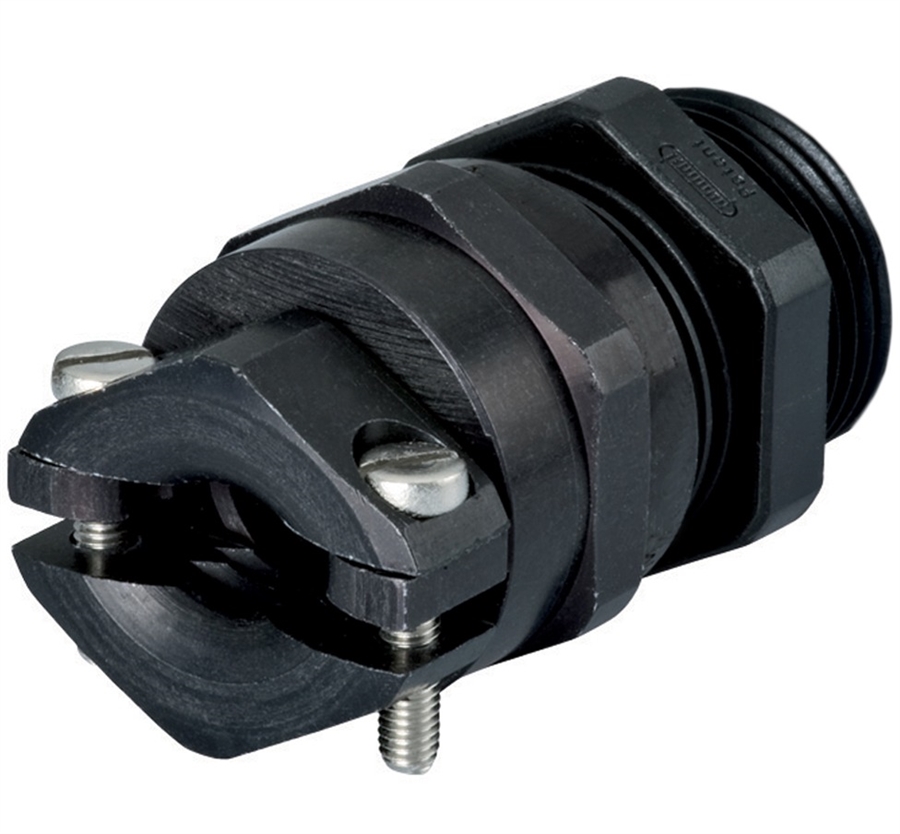

Sealcon CD48AA-CP high quality black nylon liquid tight strain relief cord grips with aluminum cable clamps are designed for the toughest applications. Also known as Hummel
1.215.4801.14. Sold Individually.
Locking nut sold separately
Specifications
- Thread Size: PG 48
- Cable O.D. Range: 1.46" - 1.73" (37 - 44 mm)
- Through Hole Diameter: 2.34" (59.4 mm)
- Body Length: 2.44" (62 mm)
- Thread Length: .55" (14 mm)
- Wrench Flat Dome: 2.56" (65 mm)
- Wrench Flat Body: 2.56" (65 mm)
Features
- Nylon 6/6 Material with Buna-N Seal and Anodized Aluminum Clamping Nut
- Operating Temperature: -20 C to 70 C (-4 F to 158 F)
- Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP69K)
- 150 psig (10 bar) Pressure Rating
- Clamp provides additional pull-out resistance
- Flame Protected to UL 94
- Halogen and Phosphorous Free
- Resists salt water, acids, alkalis', gasoline & oils.
- Durable Rugged Construction
- RoHS & Deca BDE
Approvals
- RoHS Compliance
- Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
- Waste Electrical and Electronic Equipment Directive
- CE
- German Lloyd
- EAC
- IECEx
- ATEX
Sealcon PG 48 Nylon / Plastic Cord Grips, Strain Relief Fittings or Cable Glands are used to help customers in all industries connect their cable or wire to their applications. This fitting provides a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Sealcon patented overlapping clamping splines, recessed custom grommets help protect your cable from damage and the elements. The CD48AACP fitting provides a substantial amount of Pull-out resistance by applying concentric force on all points of the cable.
PG 48 Strain Relief Cable Gland with Aluminum Cable Clamp
