Sealcon OR-13-VT high quality Viton O-Rings are liquid tight to 150 psi. PG 13 / 13.5 Thread. Sold Individually. Also known as Hummel # 1.321.1300.21.
Specifications
- Thread Size: PG 13 / 13.5

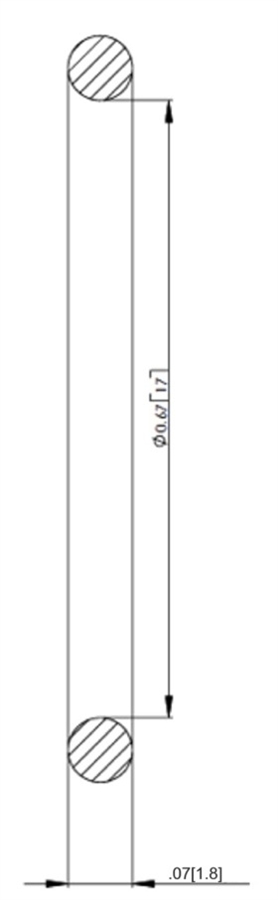

- Inner Diameter: .67" (17 mm)
- Height: .07" (1.8 mm)
Features
- Viton Material
- Operating Temperature - -40 F to 392 F (-40 C to 200 C)
- Submersible to 300 Ft - NEMA 4x & 6 (IP68 / IP 69 K)
- 150 PSIG (10 Bar) Rating
- RoHS & Deca BDE approval
The Straight Strain Relief fittings feature a molded O-Ring groove. The Snap Elbows and some of the Conduit Fittings do not have recess for an O-Ring. In that case, the Seal Ring would be the best choice, unless the hole can be beveled to accommodate an O-Ring. If NEMA 4x or 6 (European IP 68 - submersible) is required, O-Rings or Seal Rings should be used when mounting Strain Relief Fittings to a control panel, secured with a locking nut. Viton is a federally registered trademark of DuPont Dow Elastomer.
