Sealcon CD09GA-GY PG 9 Dome .20" - .39" (5 - 10 mm) O.D. Enlarged Cord Grip

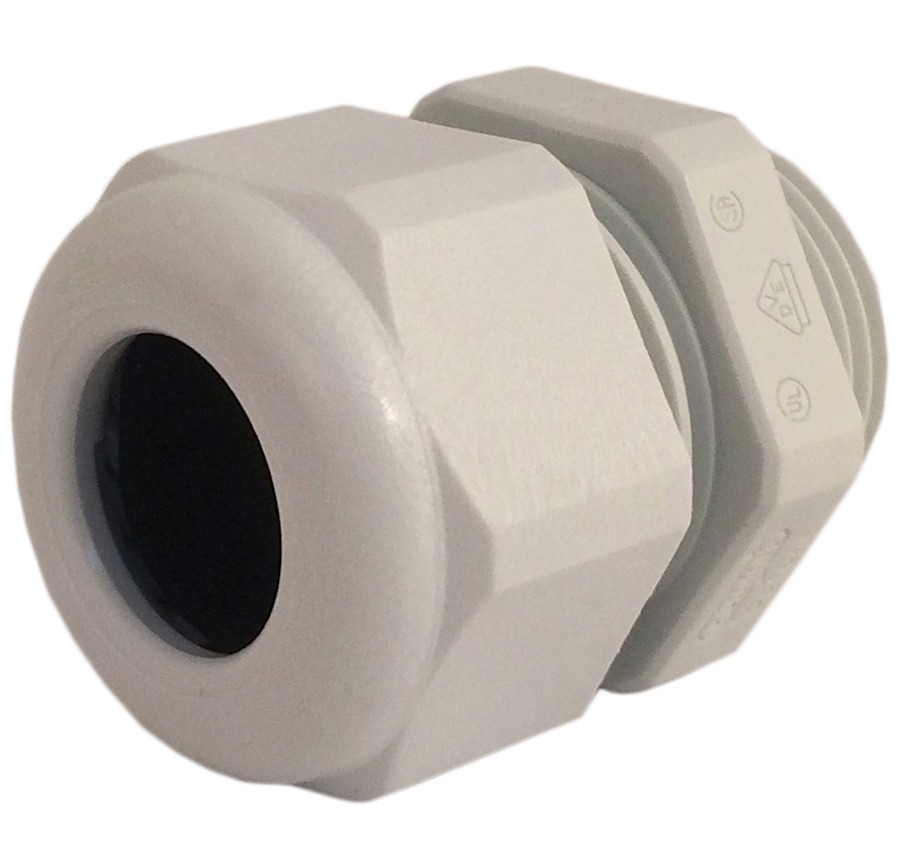

Sealcon CD09GA-GY Nylon Plastic PG 9 Cord Grip
Sealcon CD09GA-GY PG 9 Dome .20" - .39" (5 - 10 mm) O.D. Enlarged Cord Grip



Alternative Views:


Our Price: $1.59
MFG P/N: CD09GA-GY
MFG: Sealcon
Weight (lbs): 0.01

Product Code: CD09GA-GY
Qty:


Description


Sealcon CD09GA-GY enlarged body gray nylon cord grip is designed for the toughest applications. Also known as Hummel 1.590.0900.14. Sold Individually. Locking nut & O-Ring sold separately

Specifications

  • Thread Size: PG 9
  • Cable O.D. Range: .20" - .39" (5 - 10 mm)
  • Through Hole Diameter: .6" (15.2 mm)
  • Body Length: .98" (25 mm)
  • Thread Length: .31" (8 mm)
  • Wrench Flat Dome: .87" (22 mm)
  • Wrench Flat Body: .87" (22 mm)

Features

  • Nylon 6/6 Material with Buna-N Seal
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP69K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Vibration Resistant Dome
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval

Approvals

  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd

Sealcon PG 9 Nylon / Plastic strain relief fittings, also referred to as cable glands or cord grips, are used in almost any industry to help customers connect cable or wire to various applications. This cable gland provides a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Enlarged body fittings are intended for applications in which the cable diameter increases, but the thread size stays the same. Increase adaptability by switching out the standard or reduced inserts. Sealcon patented overlapping clamping splines, recessed custom grommets help keep your cable protected from damage and the elements. The CD09GA-GY cord grip creates a substantial amount of Pull-out resistance by applying even force on all points of the cable. Note: Contact us about purchasing individual standard or reduced inserts

CD09GA-GY PG 9 Enlarged Body Liquid Tight Fitting

Additional Product Information
Sealcon PG Enlarged Body Nylon Dome Fittings
Part Numbers Cable Range Thread Range
Black Grey
CD07GA-BK CD07GA-GY .16" - .31" (4 - 8 mm) PG 7 / 1/4" NPT
CD07GR-BK CD07GR-GY .08" - .24" (2 - 6 mm) PG 7 / 1/4" NPT
CD09GA-BK CD09GA-GY .20" - .39" (5 - 10 mm) PG 9
CD09GR-BK CD09GR-GY .12" - .28" (3 - 7 mm) PG 9
CD11GA-BK CD11GA-GY .24" - .47" (6 - 12 mm) PG 11
CD11GR-BK CD11GR-GY .20" - .35" (5 - 9 mm) PG 11
CD13GA-BK CD13GA-GY .39" - .55" (10 - 14 mm) PG 13 / 13.5
CD13GR-BK CD13GR-GY .28" - .47" (7 - 12 mm) PG 13 / 13.5
CD16GA-BK CD16GA-GY .51" - .71" (13 - 18 mm) PG 16
CD16GR-BK CD16GR-GY .35" - .63" (9 - 16 mm) PG 16
