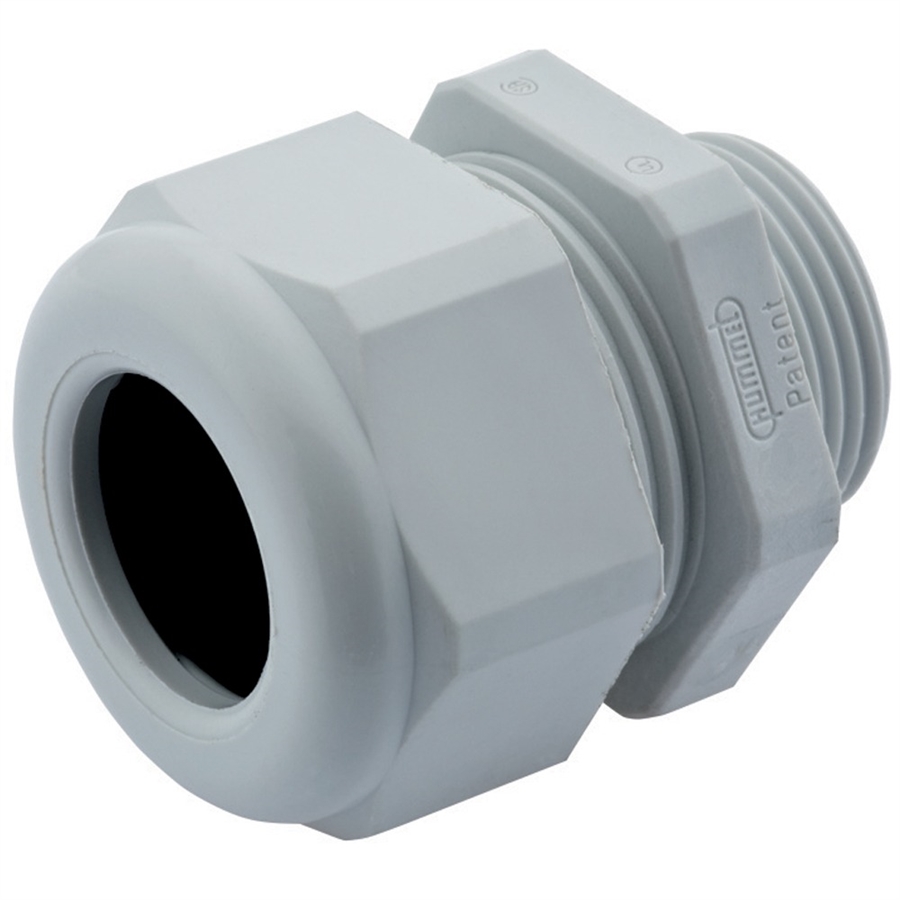

Sealcon CD32MA-GY M32 Dome .71" - .98" (18 - 25 mm) O.D. Cord Grip

Gray Nylon Plastic Strain Relief Fitting
Sealcon CD32MA-GY M32 Dome .71" - .98" (18 - 25 mm) O.D. Cord Grip



Alternative Views:


Our Price: $3.85
Note: Larger amounts may be in stock, please call to confirm
MFG P/N: CD32MA-GY
MFG: Sealcon
Weight (lbs): 0.12

Quantity in Stock :1


Availability:
In Stock
Product Code: CD32MA-GY
Qty:


Description


Sealcon CD32MA-GY high quality gray nylon liquid tight strain relief cord grips are designed for the toughest applications. Also known as Hummel #1.209.3200.50. Sold Individually. Locking nut & O-Ring sold separately

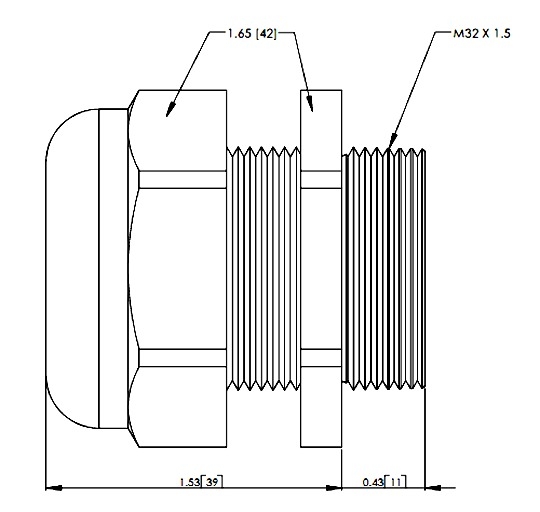

Specifications

  • Thread Size: M32 x 1.5
  • Cable O.D. Range: .71" - .98" (18 - 25 mm)
  • Through Hole Diameter: 1.26" (32 mm)
  • Body Length: 1.54" (39 mm)
  • Thread Length: .43" (11 mm)
  • Wrench Flat Dome: 1.65" (42 mm)
  • Wrench Flat Body: 1.65" (42 mm)

Features

  • Nylon 6/6 Material with Buna-N Seal
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP69K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Vibration Resistant Ratchet Dome
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval

Approvals

  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd
  • VDE

Cross Reference

  • Lütze 600683 (Cable O.D. 15-21mm)
  • Jacob 50029M32PA
  • Olflex S1521 (Cable O.D. 0.43"-0.82")
  • Remke RD32MA-GY (Cable O.D. 0.63"-0.98")

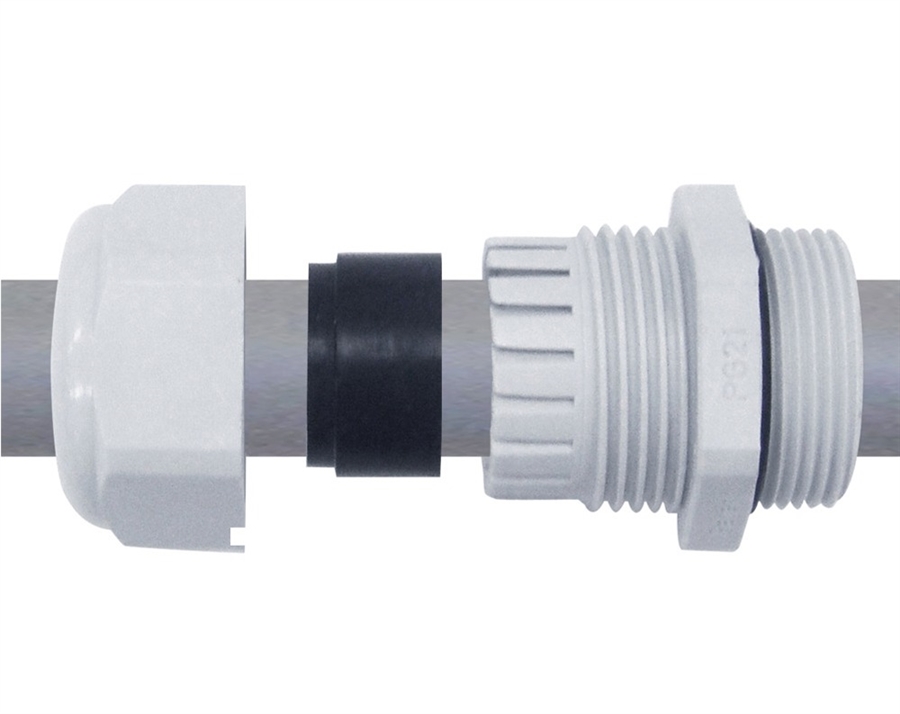

Sealcon M32 x 1.5 Metric Nylon / Plastic Cord Grips, Strain Relief Fittings or Cable Glands are used to help customers in all industries connect their cable or wire to their applications. This fitting provides a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Sealcon patented overlapping clamping splines, recessed custom grommets help protect your cable from damage and the elements. The CD32MA-GY fitting provides a substantial amount of Pull-out resistance by applying concentric force on all points of the cable.

Hummel 1.209.3200.50 M32 Cable Gland

Additional Product Information
Sealcon Metric Standard Nylon Dome Fittings
Part Numbers Cable Range Thread Range
Black Gray
CD12MA-BK CD12MA-GY .12" - .26" (3 - 6.5 mm) M12 x 1.5
CD12MR-BK CD12MR-GY .08" - .20" (2 - 5 mm) M12 x 1.5
CD16MA-BK CD16MA-GY .16" - .31" (4 - 8 mm) M16 x 1.5
CD16MR-BK CD16MR-GY .08" - .24" (2 - 6 mm) M16 x 1.5
CD17MA-BK CD17MA-GY .20" - .39" (5 - 10 mm) M16 x 1.5
CD17MR-BK CD17MR-GY .12" - .28" (3 - 7 mm) M16 x 1.5
CD20MA-BK CD20MA-GY .24" - .47" (6 - 12 mm) M20 x 1.5
CD20MR-BK CD20MR-GY .20" - .35" (5 - 9 mm) M20 x 1.5
CD22MA-BK CD22MA-GY .39" - .55" (10 - 14 mm) M20 x 1.5
CD22MR-BK CD22MR-GY .28" - .47" (7 - 12 mm) M20 x 1.5
CD25MA-BK CD25MA-GY .51" - .71" (13 - 18 mm) M25 x 1.5
CD25MR-BK CD25MR-GY .35" - .63" (9 - 16 mm) M25 x 1.5
CD32MA-BK CD32MA-GY .71" - .98" (18 - 25 mm) M32 x 1.5
CD32MR-BK CD32MR-GY .51" - .79" (13 - 20 mm) M32 x 1.5
CD40MA-BK CD40MA-GY .87" - 1.26" (22 - 32 mm) M40 x 1.5
CD40MR-BK CD40MR-GY .79" - 1.02" (20 - 26 mm) M40 x 1.5
CD50MA-BK CD50MA-GY 1.26" - 1.50" (32 - 38 mm) M50 x 1.5
CD50MR-BK CD50MR-GY .98" - 1.22" (25 - 31 mm) M50 x 1.5
CD63MA-BK CD63MA-GY 1.46" - 1.73" (37 - 44 mm) M63 x 1.5
CD63MR-BK CD63MR-GY 1.14" - 1.38" (29 - 35 mm) M63 x 1.5
